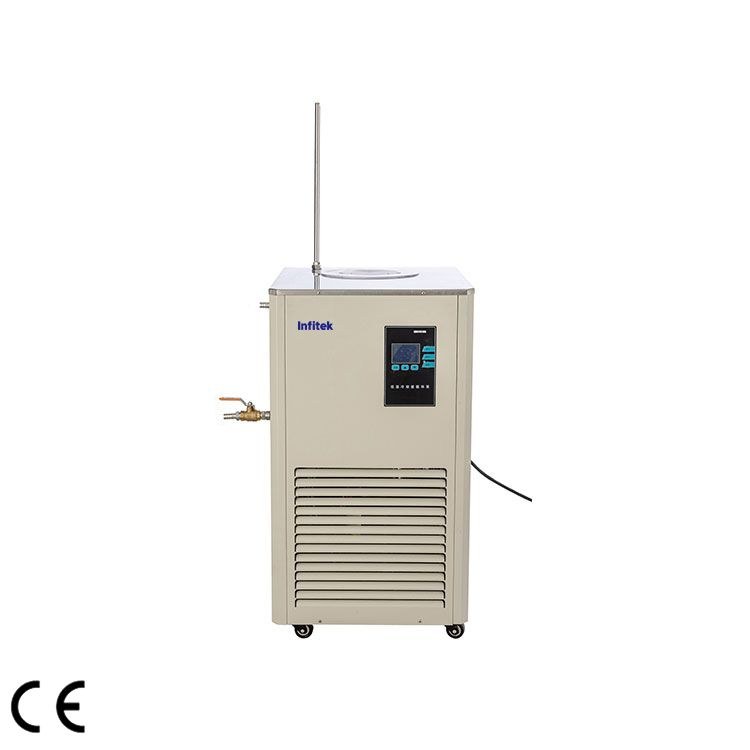

Recirculating Chiller RECL10-5, RECL30-50, RECL40-100

Compressor-cooled recirculating chillers reaching -10, -30 or -40 °C with ±0.1 °C PT100 control, for jacketed reactors, rotary evaporators and condensers.

Key specifications

Usage temperature range
RECL10-5: -10 ℃~room temperature; RECL30-50: -30 ℃~room temperature; RECL40-100: -40℃ ~room temperature
Environment temperature
5 ~35 ℃
Environment humidity
≤70％ ventilation
Power supply
RECL10-5: Single phase 220V/50HZ; RECL30-50: Single phase AC220V,50/60Hz; RECL40-100: Three phase 380V/50HZ
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The RECL Series recirculating chillers are mechanically cooled by a fully enclosed compressor. Copper coils on the inner wall of the tank cool the circulating liquid, which a built-in pump delivers through external tubing to the jacket of a double-layer glass reactor, a rotary evaporator or a condensation coil. Objects or containers can also be placed directly in the bath.

Three models are available: the RECL10-5 down to -10 °C with 1550 W cooling capacity, the RECL30-50 down to -30 °C with 6972 W, and the RECL40-100 down to -40 °C with 23240 W on a three-phase 380 V supply. All control temperature to ±0.1 °C with a PT100 sensor, LCD display and key operation.

Circulation pumps deliver 20 to 40 L/min on the smaller models and 30 to 50 L/min on the RECL40-100, at up to 0.4 MPa. Delay, over-current and overheat protection are standard, with phase sequence and phase loss protection on the larger units.

Specifications

Technical specifications

31 parameters

Specifications

Usage temperature range
RECL10-5: -10 ℃~room temperature; RECL30-50: -30 ℃~room temperature; RECL40-100: -40℃ ~room temperature
Environment temperature
5 ~35 ℃
Environment humidity
≤70％ ventilation
Power supply
RECL10-5: Single phase 220V/50HZ; RECL30-50: Single phase AC220V,50/60Hz; RECL40-100: Three phase 380V/50HZ
Safety protection
Delay, over-current, overheat / Delay, overcurrent, overheating, phase sequence, phase loss protection
Display
LCD display, key operation
Temperature control accuracy
±0.1℃
Sensor
PT100
Total power
RECL10-5: 652W; RECL30-50: 2485W; RECL40-100: 7990W
Compressor
Specification / Small 1P / Specification / 3P / Specification / 10P
Quantity
1 / Quantity / 1 / Quantity / 1
Power
500W / Power / 2205W / Power / 7350W
Cooling capacity
1550W / Cooling capacity / 6972W / Cooling capacity / 23240W
Circulation pump
Power / 100W / Power / 100W / Power / 280W
Lift
4-6M / Lift / 4-6M / Lift / 10-12M
Flow
20-40L/min / Flow / 20-40L/min / Flow / 30-50L/min
Pressure
≤0.4MPa / Pressure / ≤0.4MPa / Pressure / ≤0.4MPa
Air-cooling condenser
Power / 52W / Power / 180W / Power / 360W
Heating exchange area
4.2㎡ / Heating exchange area / 21.2㎡ / Heating exchange area / 39㎡
Air volume
760m³/h / Air volume / 3400m³/h / Air volume / 6800m³/h
Refrigerant
RECL10-5: R290; RECL30-50: R404A; RECL40-100: R404A
Condensation coil
RECL10-5: Φ8 copper tube plated by nickel; RECL30-50: Φ16 copper tube plated by nickel; RECL40-100: Φ19 copper tube plated by nickel
Equipment material
Cold plate spray, anti-corrosion
Water tank dimension&volume
Φ220×180H(mm) / 6.8L / Φ450×350H(mm) / About 55L / Φ500×500H(mm) / 98L
Available size in water tank
RECL10-5: Φ185mm; RECL30-50: Φ350mm; RECL40-100: Φ390mm
Cover opening
RECL10-5: Φ200mm; RECL30-50: Φ350mm; RECL40-100: Φ350mm
Outer circulation interface
RECL10-5: Pagoda joint with Φ12mm outer diameter (facing the left side of the equipment）; RECL30-50: Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment）; RECL40-100: Pagoda joint with Φ19mm outer diameter (facing the left side of the equipment）
Overall dimension(W*D*H)
RECL10-5: 423 ×485×（760+ 400）mm; RECL30-50: 795×770×(1150+pole 500)mm; RECL40-100: 845×1100×（1365+pole 500）mm
Net weight
RECL10-5: 56KG; RECL30-50: 119KG; RECL40-100: 250KG
Packing dimension
RECL10-5: 590×430×880mm carton package 0.21m³; RECL30-50: 830×740×1280mm wooden package 0.79m³; RECL40-100: 1190×880×1540mm wooden package 1.61m³
Packing weight
RECL10-5: 58KG; RECL30-50: 164KG; RECL40-100: 290KG
Features

Key features

  • 01

    Three temperature levels

    RECL10-5 to -10 °C, RECL30-50 to -30 °C and RECL40-100 to -40 °C.

  • 02

    Wide cooling capacity

    From 1550 W on the smallest model up to 23240 W on the RECL40-100.

  • 03

    ±0.1 °C control

    PT100 sensor with LCD display and simple key operation.

  • 04

    Built-in circulation pump

    Delivers 20 to 50 L/min at up to 0.4 MPa to reactors, evaporators and condensers.

  • 05

    Direct bath use

    Containers can be placed in the bath for cooling or low-temperature reactions.

  • 06

    Electrical protection

    Delay, over-current and overheat protection, plus phase protection on larger units.
