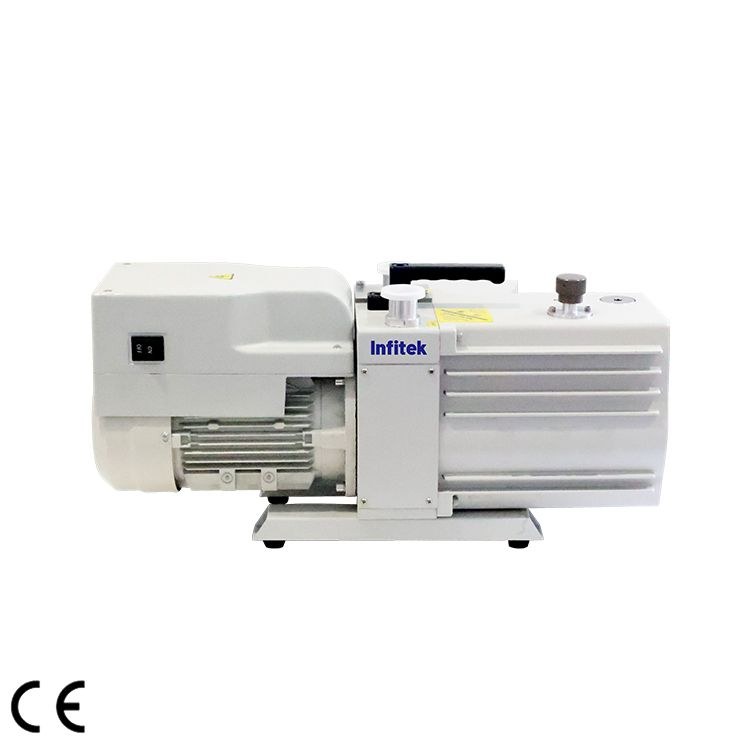

VACP-T8D / VACP-T24D Rotary Vane Vacuum Pump

The VACP-T8D and VACP-T24D are oil-sealed rotary vane vacuum pumps in which rotating vanes on an eccentric rotor draw in, compress and exhaust gas. Nominal pumping speeds are 8 m³/h (2 L/s) and 24 m³/h (6 L/s), with a partial ultimate pressure of 5×10⁻² Pa and a total ultimate pressure of 1 Pa without gas ballast.

Internal parts use corrosion-resistant materials, a magnetic shaft sleeve improves reliability and a built-in active anti-suck-back valve prevents oil return on shutdown. The adjustable gas ballast valve helps remove water vapour, with vapour pumping capacities of 230 and 300 g/h, and a forced oil supply keeps operation stable and quiet at 58 to 62 dBA. Both models use a KF25 inlet and are available in single-phase or three-phase versions.

Typical applications include semiconductor work, space simulation, pharmaceutical R&D, chemical engineering, metallurgy, vacuum furnaces, vacuum coating and lamp manufacturing.
