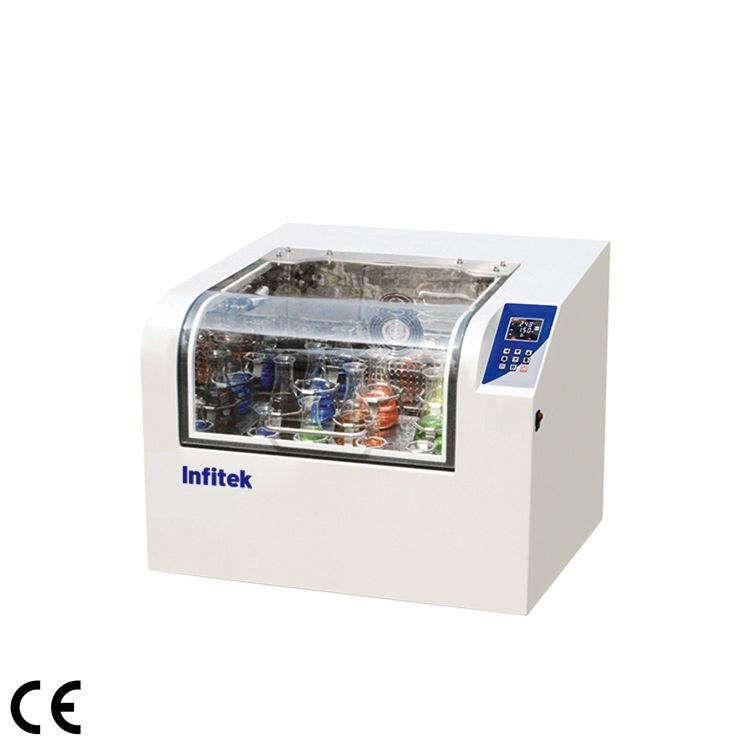

ICB-S Series Benchtop Shaking Incubator

70 L benchtop shaking incubators with servo drive up to 600 rpm, heating or refrigerated models from 4 to 65 °C, and USB data recording.

Key specifications

Capacity(L)
70
Circulation
Forced convection
Drive Mode
Multidimensional drive / Unidimensional drive / Track drive
Shake Mode
Convolution
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The ICB-S series are 70 L benchtop constant temperature shaking incubators with forced convection, available as ICB-S100B, ICB-S200B, ICB-S100D, ICB-S200D, ICB-SL100F and ICB-SL200F. The 100 models heat from room temperature +5 °C to 65 °C, while the 200 models add CFC-free R134a refrigeration for 4 to 65 °C with frost-free operation and automatic defrosting. Temperature fluctuation is 0.1 °C or less and uniformity ±0.6 °C at 37 °C.

The range covers multidimensional, unidimensional and track drive systems with a 26 mm orbit or adjustable 0 to 50 mm orbit, and speed ranges of 20 to 300, 20 to 600 or 20 to 260 rpm depending on the drive, with static culture also possible. A servo motor with PID feedback holds speed within ±1 rpm, and slow start and stop protect cells from shear. Multi-step programs set speed, temperature and time in one run, and the timer covers 0 to 9999 h or continuous operation.

USB data recording logs the whole run for download, analysis and printing. Flask clamps hold up to 23 × 100 mL or 4 × 2000 mL flasks, an alarm sounds when temperature deviates by 3 °C or more, and opening the door stops the shaker.

Specifications

Technical specifications

28 parameters

Specifications

Capacity(L)
70
Circulation
Forced convection
Drive Mode
Multidimensional drive / Unidimensional drive / Track drive
Shake Mode
Convolution
Orbit Diameter(mm)
Φ26 / Φ0-50
Cyclotron Frequency
Range (rpm/min) / 0(to do static culture), 20-300 / 0(to do static culture), 20-600 / 0(to do static culture),20-260
Resolution (rpm)
±1
Temperature, Range (℃)
ICB-S100B: RT +5 ~ 65; ICB-S200B: 4~ 65 (RT:25); ICB-S100D: RT +5 ~ 65; CB-S200D: 4~ 65 (RT:25); ICB-SL100F: RT +5 ~ 65; ICB-SL200F: 4~ 65 (RT:25)
Fluctuation (℃)
≤0.1(37℃)
Resolution (℃)
± 0.1
Uniformity (℃)
± 0.6(37℃)
Dimension(W*D*H), External (mm)
750*710*520
Platform(mm)
450*410 / 410*360
Flask Clamp
Max. Capacity / 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 / 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4
Standard Capacity
ICB-S100B: 500ml*3 250ml*3 100ml*4 50ml*4; ICB-S200B: 500ml*3 250ml*4 100ml*5 50ml*5; ICB-S100D: 500ml*3 250ml*3 100ml*4 50ml*4; CB-S200D: 500ml*3 250ml*4 100ml*5 50ml*5; ICB-SL100F: 500ml*3 250ml*3 100ml*4 50ml*4; ICB-SL200F: 500ml*3 250ml*4 100ml*5 50ml*5
Sticky Mat(Optional)
Max. Capacity / 100ml*30 or 250ml*20 or 500ml*9 or 1L*8 or 2L*4 / 100ml*21 or 250ml*16 or 500ml*9 or 1L*5 or 2L*4
Controller
PID microcomputer
Control Mode
Fixed value mode , static mode, multi-segment program control mode
Display
Large high efinition LCD
Timer
0-9999h (or continuous operation)
Refrigerant
ICB-S100B: /; ICB-S200B: R134a (CFC free); ICB-S100D: /; CB-S200D: R134a (CFC free); ICB-SL100F: /; ICB-SL200F: R134a (CFC free)
Defrosting Mode
ICB-S100B: /; ICB-S200B: Automatic; ICB-S100D: /; CB-S200D: Automatic; ICB-SL100F: /; ICB-SL200F: Automatic
Safety Device
Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm
Electricity
Voltage/Frequency(V/Hz) / AC 220/110V, 50/60Hz
Consumption (W)
ICB-S100B: 550; ICB-S200B: 650; ICB-S100D: 550; CB-S200D: 650; ICB-SL100F: 550; ICB-SL200F: 650
N.W./G.W. (kg)
ICB-S100B: 75/105; ICB-S200B: 95/120; ICB-S100D: 75/105; CB-S200D: 90/120; ICB-SL100F: 75/105; ICB-SL200F: 90/120
Package Dimension (W*D*H) (mm)
ICB-S100B: 870*870*700; ICB-S200B: 870*870*700; ICB-S100D: 870*870*705; CB-S200D: 880*880*710; ICB-SL100F: 870*870*705; ICB-SL200F: 870*870*705
Optional
Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination
Features

Key features

  • 01

    Heating or refrigerated

    100 models reach RT+5 to 65 °C; 200 models refrigerate to 4 °C with automatic defrost.

  • 02

    Servo motor drive

    PID feedback holds speed within ±1 rpm with quiet, durable operation.

  • 03

    Gentle start and stop

    Slow acceleration and deceleration avoid shear damage to cells and bacteria.

  • 04

    Multi-step programs

    Speed, temperature and time steps can be set at once and switched automatically.

  • 05

    USB data recording

    Logs the full process for download, charting and printing to trace experiments.

  • 06

    Door safety stop

    Shaking stops when the door opens, with over-temperature and fault alarms.
