Reference: CRF10-S97

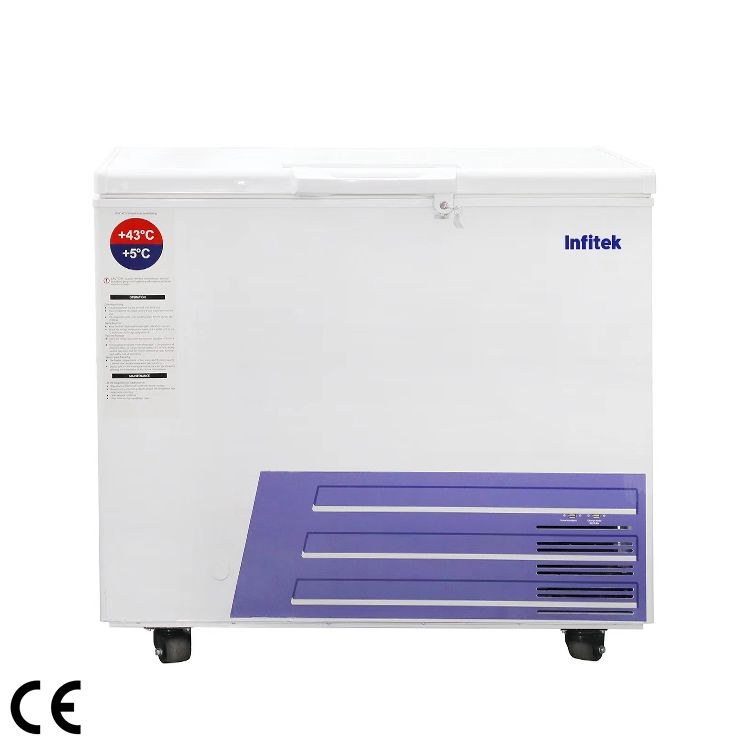

CRF10-S97 Solar Medicine Refrigerator
A solar direct drive chest refrigerator and freezer for vaccines and medicines, holding 2 to 8°C with over 180 hours of holdover at 43°C ambient.
Key specifications
- Technical Data
- Model: Type; CRF10-S97: Chest Type
- Vaccine Gross Capacity
- 59L
- Vaccine Storage Capacity
- 48L
- Freezer Gross Capacity
- 38L
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
CRF10-S97 Solar Medicine Refrigerator
Request a quoteOverview
Product overview
The CRF10-S97 is a chest-type vaccine refrigerator and freezer powered directly by solar energy, designed for sites without a reliable electricity supply. The vaccine compartment has a gross capacity of 59 L, with 48 L of storage, and runs at 2 to 8°C, while the 38 L freezer section holds 10°C below zero or colder and freezes 2 kg of water packs every 24 hours.
A wide climate design allows operation at ambient temperatures of 5 to 43°C, and the cabinet provides more than 180 hours of holdover at 43°C. Microcomputer control displays temperature with 0.1°C resolution and keeps a 30 day temperature record.
Alarms for high and low temperature, sensor malfunction and low battery use a buzzer and flashing display. A safety lock, USB charging, an aluminum inner tank with a drainage hole and storage baskets support daily use in hospitals, CDCs and research institutions.
Specifications
Technical specifications
32 parameters
Product characteristic curve
- Technical Data
- Model: Type; CRF10-S97: Chest Type
- Vaccine Gross Capacity
- 59L
- Vaccine Storage Capacity
- 48L
- Freezer Gross Capacity
- 38L
- Holdover Time
- 180h
- Water-pack Freezing Capacity
- 2kg/24h
- Water-pack Storage Capacity
- 10kg
- Cooling Type
- Direct Cooling
- Door
- Foaming Door
- Refrigerant
- R290
- Temperature Control
- Model: Vaccine Working Temperature; CRF10-S97: 2~8℃
- Freezer Working Temperature
- ≤-10℃
- Ambient Temperature
- 5℃~43℃
- Controller
- Microprocessor
- Temperature setting Accuracy
- 0.1
- Display
- LED Digital Display
- Electrical Data
- Model: Voltage; CRF10-S97: DC 18-28V
- Power
- 190W
- Current
- 8A
- Power Consumption (Stable Running)
- 1.7kW·h/24h
- Power Consumption (Cool Down Test)
- 2kW·h/24h
- Dimensions
- Model: Exterior Dimension(W*D*H); CRF10-S97: 1050*750*975mm
- Package Dimension(W*D*H)
- 1127*781*1075mm
- Weight
- Model: Net Weight; CRF10-S97: 100kg
- Gross Weight
- 130kg
- Functions
- Model: High /Low Alarm Function; CRF10-S97: Yes
- Sensor Error Alarm
- Yes
- Low Battery Alarm
- Yes
- Freeze-Protection Classification
- A
- Data Interface
- USB
- Charging Interface
- 5V
- Accessories
- Model: Vaccine Basket Qty.; CRF10-S97: 2
Features
Key features
- 01
Solar direct drive
Runs directly from solar panels on a DC 18 to 28 V supply, with no grid connection needed.
- 02
Long holdover
More than 180 hours of holdover at 43°C ambient protects vaccines through periods without sun.
- 03
Vaccine and freezer sections
A 48 L vaccine store at 2 to 8°C plus a 38 L freezer for ice packs.
- 04
30 day temperature record
The controller stores a month of temperature data with 0.1°C resolution.
- 05
Wide climate design
Rated for ambient temperatures from 5 to 43°C.
- 06
Practical details
Safety lock, USB charging, aluminum inner tank with drain hole and storage baskets.
