Reference: SP-CLD505

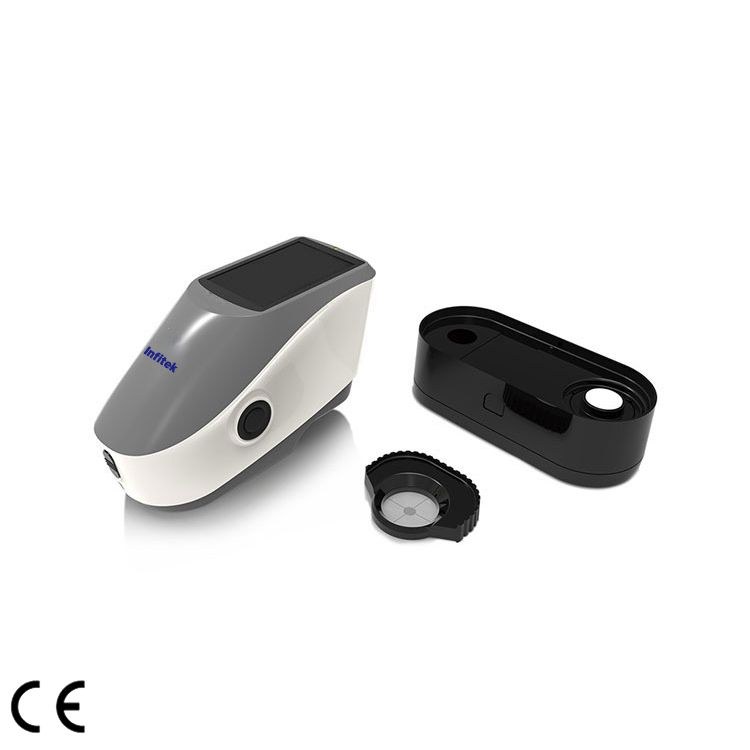

SP-CLD505 Grating Spectrodensitometer
45/0 grating spectrodensitometer for printing quality control, measuring density, dot gain and Lab values over 400 to 700 nm under ISO 13655 M0 to M3 conditions.
Key specifications
- Model
- SP-CLD505
- Measurement Geometry
- 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
- Features
- high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
- Light Source
- Combined LED Light, UV Light
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SP-CLD505 Grating Spectrodensitometer
Request a quoteOverview
Product overview
The SP-CLD505 is a grating spectrodensitometer with 45/0 ring illumination geometry, complying with CIE and the M0, M1, M2 and M3 measurement conditions of ISO 13655. It accurately measures reflectance spectra, CMYK density and Lab values, along with printing parameters such as dot area, dot gain, overprint (trapping), print contrast, hue error and gray balance, using ISO Status A, E, I and T density standards.
Inside are a concave grating and a 256-pixel dual-array CMOS image sensor covering 400 to 700 nm at 10 nm intervals. Combined LED light sources, including UV, offer long life and low power consumption. Density repeatability is within 0.01 D, and inter-instrument error is within ΔE*ab 0.18. Apertures of Φ2, 4 or 8 mm can be specified.
The instrument has a 3.5-inch capacitive TFT touch screen, stores more than 20,000 results, and connects by USB or Bluetooth to expandable PC software. A Li-ion battery supports 5000 measurements in 8 hours. It is especially suited to process and quality control in printing plants, and also to film, textile dyeing and plastic electronics.
Specifications
Technical specifications
34 parameters
10. PC software has powerful function expansion.
- Model
- SP-CLD505
- Measurement Geometry
- 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
- Features
- high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
- Light Source
- Combined LED Light, UV Light
- Spectral separation device
- Concave Grating
- Detector
- 256 Image Element Double Array CMOS Image Sensor
- Wavelength Range
- 400~700nm
- Wavelength Pitch
- 10nm
- Half Bandwidth
- 10nm
- Measurement Conditions
- Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter)
- Density Standards
- ISO Status A, E, I, T
- Density index
- Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning
- Measurement aperture
- Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
- Color Spaces
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
- Color Difference Formula
- ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE(Hunter)
- Other Colorimetric Index
- WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), MI (Metamerism Index),Opacity,
- Observer Angle
- 2°/10°
- Illuminants
- A,C,D50,D55,D65,D75,F2(CWF),F7(DLP),F11(TL84),F12(TL83/U30),F1,F3,F4,F5,F6,F8,F9,F10(TPL5)
- Measurement Time
- About 1.5s
- Repeatability
- Density: Within 0.01 D
- Inter-instrument Error
- Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) Except M3
- Measurement mode
- Single Measurement, Average Measurement(2-99)
- Size(L*W*H)
- 184*77*105mm
- Weight
- About 600g
- Power source
- Li-ion battery. 5000 measurements within 8 hours
- Illuminant Life Span
- 5 years, more than 3 million times measurements
- Display
- 3.5-inch TFT color LCD, Capacitive Touch Screen
- Interface
- USB, Bluetooth 4.0
- Data memory
- 20000 pcs
- Language
- Simplified Chinese, English, Traditional Chinese
- Working Environment
- Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
- Storage Environment
- Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
- Standard Accessory
- Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
- Optional Accessory
- Micro Printer
Features
Key features
- 01
45/0 geometry, ISO 13655
Measures under M0, M1, M2 and M3 conditions for printing work.
- 02
Density and color in one
Reflectance spectra, CMYK density, Lab, dot gain, trapping and print contrast.
- 03
Concave grating optics
256-pixel dual-array CMOS sensor over 400 to 700 nm.
- 04
Combined LED with UV
Long-life, low-power light sources including UV.
- 05
3.5-inch touch screen
Capacitive TFT display with storage for over 20,000 results.
- 06
USB and Bluetooth
Dual communication with expandable PC software.
