DOF-HAS-A Series Dry Heat Sterilizing Oven
Forced-air dry heat sterilizers from 34 L to 188 L, operating from ambient plus 10°C to 250°C with PID control, LCD display and over-temperature alarm.
Key specifications
- Capacity(L)
- DOF-HAS20A: 34; DOF-HAS50A: 51; DOF-HAS70A: 70; DOF-HAS100A: 138; DOF-HAS200A: 188
- Circulation
- Forced air convection
- Dimension(W*D*H), Internal (mm)
- DOF-HAS20A: 340*320*320; DOF-HAS50A: 420*350*350; DOF-HAS70A: 400*360*500; DOF-HAS100A: 550*450*560; DOF-HAS200A: 600*550*570
- Temperature, Range (℃)
- RT+10-250
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

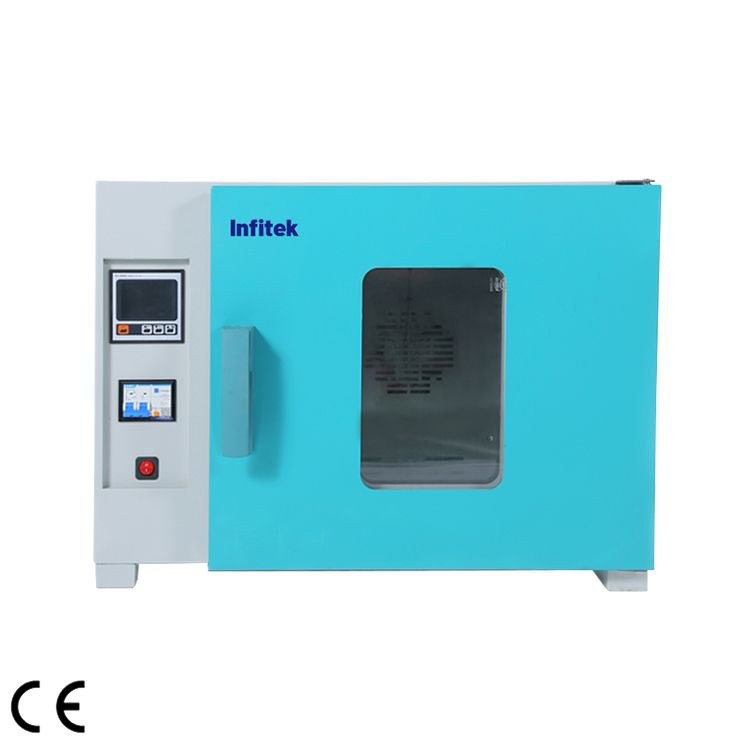

DOF-HAS-A Series Dry Heat Sterilizing Oven
Request a quoteOverview
Product overview
The DOF-HAS-A Series uses high temperature dry heat to destroy microorganisms by oxidation and protein denaturation, sterilizing glassware and heat-stable materials within a set heating time. Five models offer chamber volumes from 34 L to 188 L, all working from ambient plus 10°C up to 250°C with ±0.5°C fluctuation and 0.1°C resolution.
A PID controller with PT100 sensor adapts its parameters to ambient conditions and load to reduce energy use. The large LCD shows parameters in real time and supports fixed value and timed running from 1 to 9999 minutes, ending with an END message and beep. An optional program controller stores up to 30 programs, and an intelligent touch screen with data storage is also available.
A rear-suction, bottom vertical air supply fan circulates heated air for good uniformity. The laser-cut cabinet has a brushed stainless steel chamber with rounded corners, removable stainless shelves and a silicone door seal, protected by a leakage protector and over-temperature alarm.
Specifications
Technical specifications
21 parameters
High or low temperature and over-temperature alarm.
- Capacity(L)
- DOF-HAS20A: 34; DOF-HAS50A: 51; DOF-HAS70A: 70; DOF-HAS100A: 138; DOF-HAS200A: 188
- Circulation
- Forced air convection
- Dimension(W*D*H), Internal (mm)
- DOF-HAS20A: 340*320*320; DOF-HAS50A: 420*350*350; DOF-HAS70A: 400*360*500; DOF-HAS100A: 550*450*560; DOF-HAS200A: 600*550*570
- Temperature, Range (℃)
- RT+10-250
- Fluctuation (℃)
- ±0.5
- Resolution (℃)
- 0.1
- Uniformity (℃)
- ±2.5%
- Sensor
- PT100
- Controller
- PID
- Display
- LCD
- Timer(min)
- 1-9999
- Material, Internal
- Stainless steel
- Material, External
- High-quality cold-rolled steel plate surface anti-static spraying
- Shelves
- 2
- Safety Device
- Leakage protector/Over- temperature alarm
- Electricity
- Voltage/Frequency(V/Hz) / AC 220/110V,50/60Hz
- Consumption (W)
- DOF-HAS20A: 500; DOF-HAS50A: 750; DOF-HAS70A: 1050; DOF-HAS100A: 1500; DOF-HAS200A: 2000
- N.W./G.W. (kg)
- DOF-HAS20A: 27/30; DOF-HAS50A: 42/48; DOF-HAS70A: 55/61; DOF-HAS100A: 70/88; DOF-HAS200A: 86/107
- Shipping Dimension (W*D*H) (mm)
- DOF-HAS20A: 770*680*580; DOF-HAS50A: 760*640*640; DOF-HAS70A: 650*640*1030; DOF-HAS100A: 810*900*960; DOF-HAS200A: 990*860*940
- Standard
- Shell:Laser operation
- Optional
- Intelligent touch screen with program setting and data storage functions
Features
Key features
- 01
Up to 250°C dry heat
Sterilizes from ambient plus 10°C to 250°C with ±0.5°C fluctuation.
- 02
Five chamber sizes
Models from 34 L to 188 L suit small and high volume sterilization loads.
- 03
Intelligent LCD control
Menu-driven interface with screen lock, timer from 1 to 9999 minutes and end-of-cycle alert.
- 04
Forced air circulation
A large impeller fan with rear suction and bottom air supply improves uniformity.
- 05
Easy-clean stainless chamber
Brushed stainless steel with rounded corners and removable, adjustable shelves.
- 06
Safety protection
Leakage protector and over-temperature alarm come as standard.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
