Reference: MSC-T08B

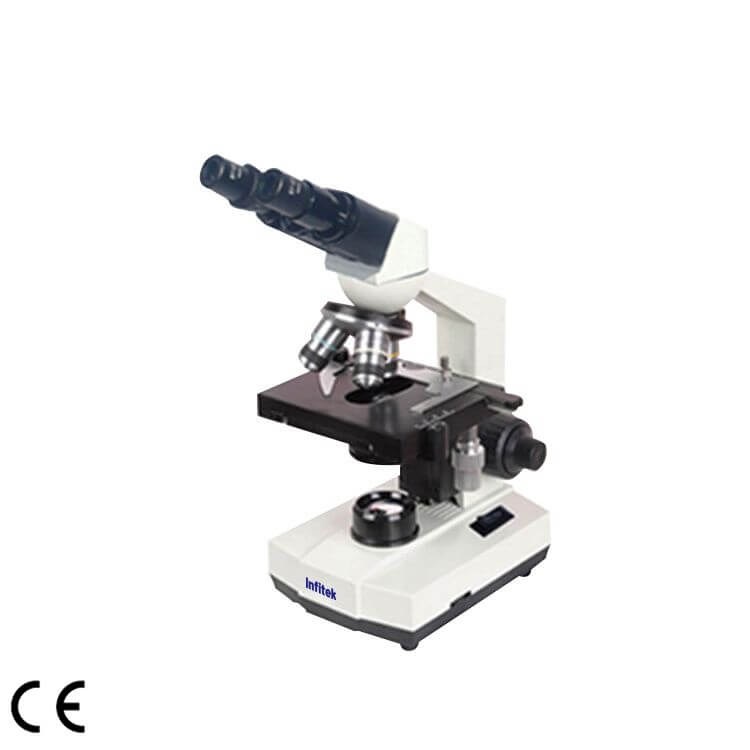

MSC-T08B Teaching Microscope
A binocular student microscope with achromatic 4X to 100X objectives, WF10X and WF16X eyepieces and adjustable LED illumination for school biology labs.
Key specifications
- Model
- MSC-T08B
- Optics
- Finite Distance Optical System
- Observation Tubes
- Seidentopf binocular head
- Optical Coating
- Transmittance ≥ 95%
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MSC-T08B Teaching Microscope
Request a quoteOverview
Product overview
The MSC-T08B is a finite-optics teaching microscope for biology, cytology and histology classes in school laboratories. A Siedentopf binocular head gives an ergonomic, easy-to-use viewing position, and optical coatings provide transmittance of at least 95%.
Achromatic objectives of 4X, 10X, 40X and 100X on a quadruple nosepiece are paired with WF10X and WF16X eyepieces. The double-layer mechanical stage measures 105 × 115 mm with a 60 × 20 mm moving range, and an Abbe N.A. 1.25 condenser focuses light onto the specimen.
Coaxial coarse and fine focusing covers 20 mm with 0.01 mm fine graduation. LED illumination with continuously adjustable brightness and a 100 to 240 V supply make the unit simple to set up in classrooms.
Specifications
Technical specifications
14 parameters
Specifications
- Model
- MSC-T08B
- Optics
- Finite Distance Optical System
- Observation Tubes
- Seidentopf binocular head
- Optical Coating
- Transmittance ≥ 95%
- Eyepiece
- WF10× *WF16
- Objective
- Achromatic objective：4X，10X，40X，100X
- Nosepiece
- Quadruple nosepiece
- Stage
- Carrier platform: double-layer mobile platform, platform size: 105 × 115mm, moving range: 60 × 20mm
- Condenser
- Abbe condenser N.A. 1.25
- Focusing
- Focusing system: Coarse and micro coaxial focusing, micro grid value of 0.01mm, focusing range of 20mm
- Illumination
- LED illumination, brightness adjustable
- Electricity
- 100-240V AC,50/60Hz
- Package Dimension (W*D*H) (mm)
- 340*280*450
- Gross Weight (Kg)
- 4.2
Features
Key features
- 01
Siedentopf binocular head
Ergonomic binocular observation tube that is easy for students to adjust.
- 02
Four achromatic objectives
4X, 10X, 40X and 100X objectives on a quadruple nosepiece.
- 03
Two eyepiece options
WF10X and WF16X wide-field eyepieces.
- 04
Adjustable LED light
Brightness can be adjusted continuously for different specimens.
- 05
Coaxial focusing
Coarse and fine focusing over 20 mm with 0.01 mm graduation.
