Reference: TGA-1150

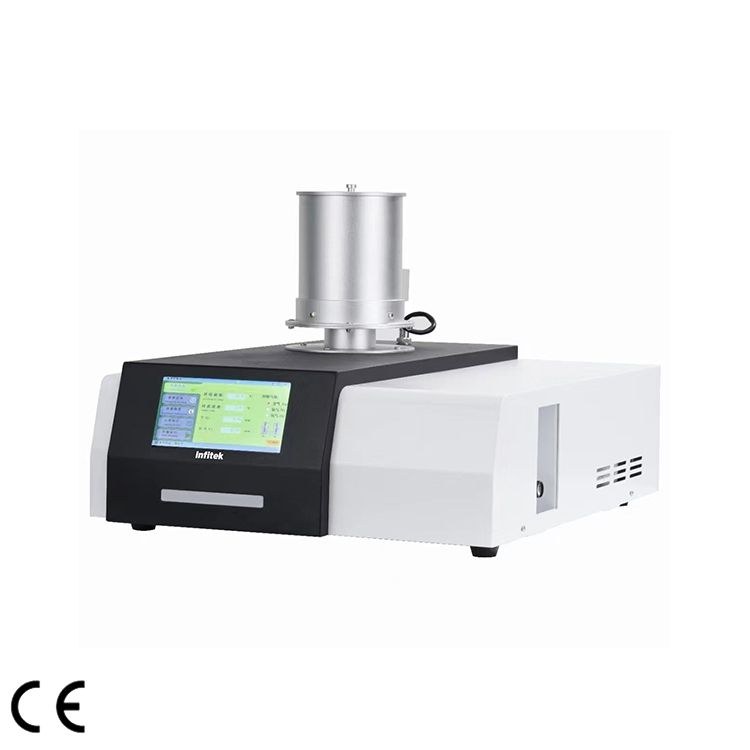

TGA-1150 Thermogravimetric Analyzer
Thermogravimetric analyzer from room temperature to 1150 °C with 0.1 µg resolution, heating rates up to 100 °C/min and a 3 g balance expandable to 50 g.
Key specifications
- Model
- TGA-1150
- Temperature range
- RT~1150℃
- Temperature resolution
- 0.01℃
- Temperature fluctuation
- ±0.01℃
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
TGA-1150 Thermogravimetric Analyzer
Request a quoteOverview
Product overview
The TGA-1150 thermogravimetric analyzer measures mass change from room temperature to 1150 °C at heating rates of 0.1 to 100 °C/min. Its micro balance has a standard range of 3 g, expandable to 50 g, with 0.01 mg accuracy and 0.1 µg resolution, and temperature resolution is 0.01 °C.
The furnace uses double-row windings of custom nickel-chromium wire with double insulation, and the alloy wire tray sensor resists high temperature, oxidation and corrosion. The heating furnace is thermally isolated from the chassis and balance, and an optional water circulation cooling unit is kept separate from the main body to limit heat and vibration. An ARM processor with four-channel AD sampling records TG and temperature signals, and PID control runs up to five programmed heating and isothermal segments.
A 7-inch touch screen allows TG calibration on the instrument, and USB software provides remote control, TG/DTG processing and comparison of five curves. Multi-stage gas switching and an exhaust port for infrared coupling are included. Applications cover plastics, rubber, coatings, pharmaceuticals, catalysts and inorganic, metal and composite materials.
Specifications
Technical specifications
24 parameters
Specifications
- Model
- TGA-1150
- Temperature range
- RT~1150℃
- Temperature resolution
- 0.01℃
- Temperature fluctuation
- ±0.01℃
- Heating rate
- 0.1~100℃/min
- Temperature control mode
- PID control, heating, constant temperature and cooling
- Program control
- program setting multi-stage temperature rise and constant temperature, and five sections can be set at the same time
- Balance measuring range
- Maximum range of 3g, with an option to expand to 50g
- Accuracy
- 0.01mg
- Constant temperature time
- Arbitrary setting
- Resolution
- 0.1ug
- Display method
- 7-inch large screen LCD display
- Atmosphere device
- Built in gas flow meter and gas flow control device
- Software
- Intelligent software can automatically record TG curve for data processing, TG / DTG, mass, percentage coordinates can be arbitrarily switched;Software with automatic adjustment function, according to the map display, automatic extension, scaling
- Data interface
- Standard USB interface, dedicated software (software upgrades for free from time to time)
- Curve scanning
- heating scanning and cooling scanning
- Cooling time
- ≤ 15min, 1000 ℃ ~ room temperature;Air cooled cooling device is selected to reduce temperature quickly and improve test
- Crucible type
- Ceramic crucible, aluminum crucible
- Standard substance
- one copy
- Electricity
- AC220/110V, 50/60Hz
- Dimensions
- 531*463.5*416 mm
- Weight
- 26Kg
- Package dimensions
- 730*600*430 mm
- Package weight
- 37.8Kg
Features
Key features
- 01
Wide temperature range
Room temperature to 1150 °C at heating rates of 0.1 to 100 °C/min.
- 02
Sensitive micro balance
3 g standard range, expandable to 50 g, with 0.1 µg resolution.
- 03
Durable furnace design
Double-row nickel-chromium windings with double insulation for good linearity.
- 04
Programmed control
PID control with up to five heating and isothermal segments set at once.
- 05
Automatic gas switching
Built-in flow control with multi-stage gas switching and an exhaust port for infrared coupling.
- 06
Software and touch screen
7-inch touch screen with on-screen TG calibration and USB software for remote operation.
