Reference: TGA-1550

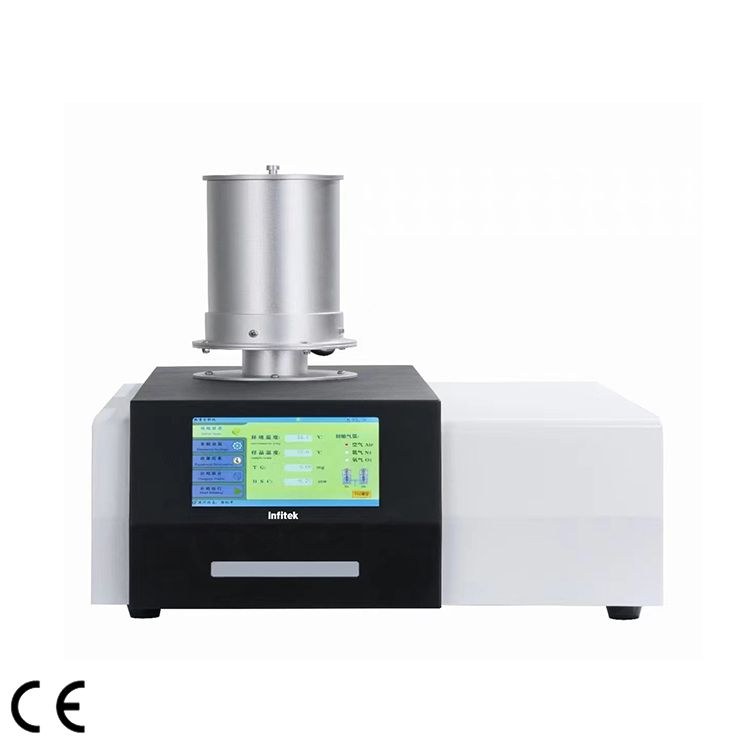

TGA-1550 Thermogravimetric Analyzer
High-temperature thermogravimetric analyzer reaching 1550 °C, with a 0.01 mg to 3 g balance expandable to 50 g and 0.1 µg resolution.
Key specifications
- Model
- TGA-1550
- Temperature Range
- RT.~1550℃
- Temperature Resolution
- 0.01℃
- Temperature Fluctuation
- ±0.1℃
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
TGA-1550 Thermogravimetric Analyzer
Request a quoteOverview
Product overview
The TGA-1550 is a thermogravimetric analyzer for measurements from room temperature to 1550 °C at heating rates of 0.1 to 100 °C/min. The micro balance covers 0.01 mg to 3 g, expandable to 50 g, with 0.01 mg precision and 0.1 µg resolution, and isothermal holds can be programmed from 0 to 300 min, extendable to 72 h.
The furnace is heated by double-row custom nickel-chromium windings, and a water thermostatic device isolates furnace heat from the chassis and balance. The power supply and circulation cooling are separate from the main unit to reduce heat and vibration effects, the top-opening design simplifies loading, and the furnace body can be changed to suit customer requirements. An ARM processor with four-channel AD sampling and PID control runs up to five heating and isothermal segments.
A built-in gas flow meter provides two-way gas switching with multi-stage automatic changeover. USB software allows remote operation, TG/DTG processing and comparison of five curves, and TG calibration can be performed from the 7-inch touch screen.
Specifications
Technical specifications
24 parameters
Specifications
- Model
- TGA-1550
- Temperature Range
- RT.~1550℃
- Temperature Resolution
- 0.01℃
- Temperature Fluctuation
- ±0.1℃
- Heating Rate
- 0.1~100℃/min
- Temperature Control Mode
- PID control, heating, constant temperature and cooling
- Program Control
- Program setting multi-stage temperature rise and constant temperature, and five sections can be set at the same time
- Balance Measuring Range
- 0.01mg ~ 3g, which can be extended to 50g
- Precision
- 0.01mg
- Constant Temperature Time
- Program control, 0-300min, which can be extended to 72h
- Resolution
- 0.1μg
- Display
- LCD display
- Atmosphere Device
- Built-in gas flow meter, including two-way gas switching and flow control
- Software
- Intelligent software can automatically record TG curve for data processing, TG / DTG, mass, percentage coordinates can be arbitrarily switched;Software with automatic adjustment function, according to the map display, automatic extension, scaling
- Gas Path
- Can be set with multi-stage automatic switching without manual adjustment.
- Data Interface
- Standard USB interface, special software (software upgrade for free from time to time)
- Electricity
- AC220/110V, 50/60Hz
- Curve Scanning
- Heating scanning and cooling scanning
- Test Map
- Five test maps can be opened at the same time for comparative analysis
- Cooling Time
- ≤15min,1000℃~RT.;Air cooled cooling device is selected to reduce temperature quickly and improve test efficiency
- Crucible Type
- Ceramic crucible, aluminum crucible
- External Dimension
- 531*463.5*416mm
- N.W./G.W.
- 26kg/39kg
- Shipping Dimension
- 730*600*480mm
Features
Key features
- 01
Up to 1550 °C
Room temperature to 1550 °C at 0.1 to 100 °C/min.
- 02
High-resolution balance
0.01 mg to 3 g range, expandable to 50 g, with 0.1 µg resolution.
- 03
Thermal isolation
A water thermostatic device shields the chassis and micro balance from furnace heat.
- 04
Long isothermal holds
Programmable constant temperature from 0 to 300 min, extendable to 72 h.
- 05
Two-way gas switching
Built-in flow meter with multi-stage automatic gas changeover.
- 06
Top-opening furnace
Easy sample loading, with a furnace body that can be replaced to suit requirements.
