Reference: LWP-F3 Series
LWP-F3 Series Touch Screen Ultrapure Water Purifier
Ultrapure water purifiers with a colour touch screen producing 10, 20 or 30 L/h of RO water and 18.25 MΩ·cm ultrapure water, in four configurations.
Key specifications
- Model
- LWP-F3 Series: LWP-F3-10 LWP-F3-20 LWP-F3-30; LWP-F3-F Series: LWP-F3-F10 LWP-F3-F20 LWP-F3-F30; LWP-F3-V Series: LWP-F3-V10 LWP-F3-V20 LWP-F3-V30; LWP-F3-VF Series: LWP-F3-VF10 LWP-F3-VF20 LWP-F3-VF30
- Inlet water source
- Urban tap water TDS<200ppm, inlet water pressure: 0.1-0.4MPa, water temperature 5-45°C
- Water-making speed
- 10L/H 20L/H 30L/H
- Water flow speed
- 1.5-2L/min (requires pressure bucket)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

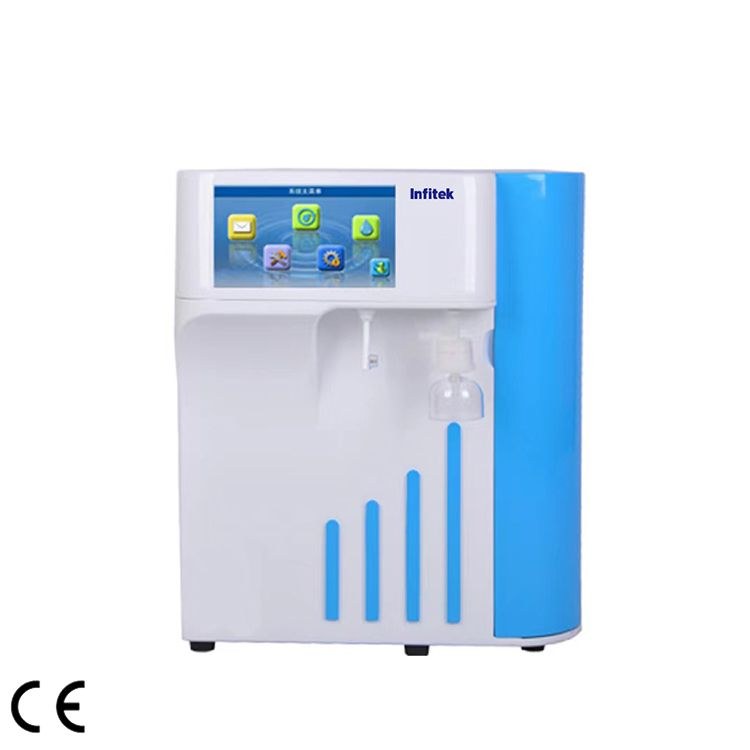

LWP-F3 Series Touch Screen Ultrapure Water Purifier
Request a quoteOverview
Product overview
The LWP-F3 series are ultrapure water purifiers with a colour touch screen, producing 10, 20 or 30 L/h from municipal tap water and dispensing at 1.5 to 2 L/min from a built-in 8 L pressure tank. They are offered in four configurations, LWP-F3, LWP-F3-F, LWP-F3-V and LWP-F3-VF, which add ultrafiltration, UV or both. Two outlets supply RO water with 95 to 99% salt rejection and ultrapure water at 18.25 MΩ·cm, with TOC below 10 ppb or below 3 ppb on UV versions, and pyrogen below 0.001 EU/mL on ultrafiltration versions.
Pre-treatment uses a self-cleaning 10 µm stainless steel mesh filter and a long-acting KDF filter rated at more than ten times the life of an equal quantity of activated carbon. A feed water pressure gauge shows supply pressure and filter blockage, and consumable life is tracked with replacement reminders. Sensors monitor feed, RO and UP water quality, and timed and volume dispensing are supported.
The system runs on 24 VDC low voltage for safety in humid conditions, exports alarm and dispensing history over USB, and can be fitted with an internal circulation system. Applications include HPLC, IC, GC, biochemical analysis, blood tests and general analytical work.
Specifications
Technical specifications
13 parameters
Specifications
- Model
- LWP-F3 Series: LWP-F3-10 LWP-F3-20 LWP-F3-30; LWP-F3-F Series: LWP-F3-F10 LWP-F3-F20 LWP-F3-F30; LWP-F3-V Series: LWP-F3-V10 LWP-F3-V20 LWP-F3-V30; LWP-F3-VF Series: LWP-F3-VF10 LWP-F3-VF20 LWP-F3-VF30
- Inlet water source
- Urban tap water TDS<200ppm, inlet water pressure: 0.1-0.4MPa, water temperature 5-45°C
- Water-making speed
- 10L/H 20L/H 30L/H
- Water flow speed
- 1.5-2L/min (requires pressure bucket)
- 2 water outlets
- RO pure water and Ultra pure water
- Output water quality
- RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
- Ultrapure water: resistivity 18.25MΩ.cm@25°C, TOC: <10 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m
- Ultrapure water: resistivity 18.25MΩ.cm@25°C, TOC: <10 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m, pyrogen<0.001EU/ml, RNases<1pg/ml, DNases<5pg/ml / Ultrapure water: resistivity 18.25MΩ.cm@25°C, TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m / Ultrapure water: resistivity 18.25MΩ.cm@25°C, TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/m, pyrogen<0.0
- Scope of application
- LWP-F3 Series: Various physical and chemical tests, biochemical analysis, blood tests, micro-analysis, washing, HPLC, IC, GC, analytical experiments.
- Power
- 220V/50Hz; 120W
- Standard configuration
- ①②③④⑤⑥⑧⑩ / ①②③④⑤⑥⑧⑨⑩ / ①②③④⑤⑥⑦⑧⑩ / ①②③④⑤⑥⑦⑧⑨⑩
- Dimensions (W*D*H)(mm)
- 470 x 450 x 550mm
- Package Dimension (W*D*H)(mm)
- 640x 550x 700mm G.W.：37kg
- Standard configuration
- Main unit (including 1 set of filters) +Built-in 8L pressure tank+end point filter+accessory package
Features
Key features
- 01
Colour touch screen
Shows working status and real-time water quality data at a glance.
- 02
Four configurations
Standard, F (ultrafiltration), V (UV) and VF (UF and UV) versions at 10, 20 or 30 L/h.
- 03
Self-cleaning pre-filter
10 µm stainless steel mesh with silicone scraper replaces PP cotton and needs no exchange.
- 04
Long-life KDF filter
Adsorption efficiency and life more than ten times an equal amount of activated carbon.
- 05
Consumable tracking
Elapsed and remaining life of each filter is displayed with automatic reminders.
- 06
Safe low-voltage design
24 VDC main supply and USB export of alarm and water intake records.
