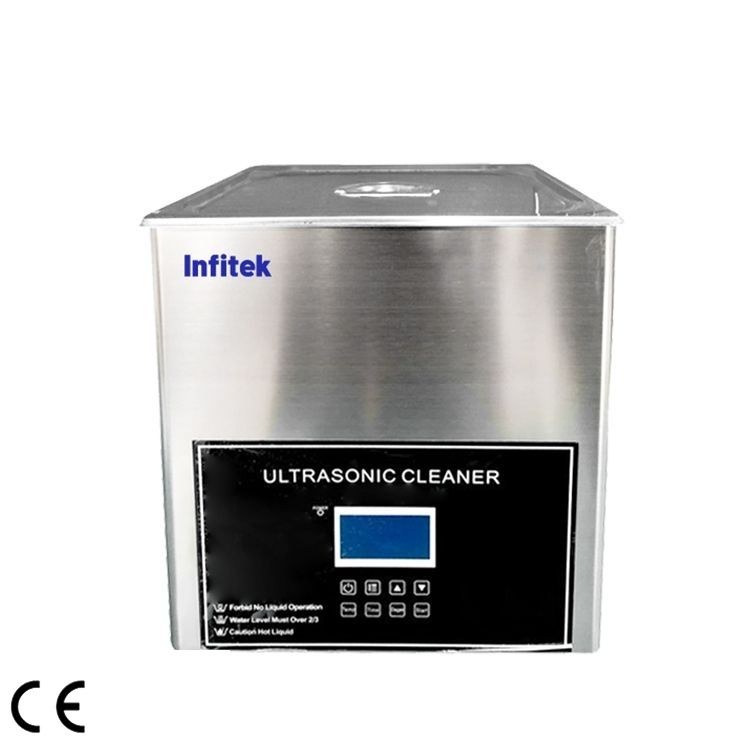

USC-DII Series LCD Ultrasonic Cleaner
40 kHz ultrasonic cleaners in 10 L, 15 L and 22.5 L sizes with a 3.2-inch LCD, adjustable power and heating, degas mode and parameter memory.
Key specifications
- Machine size(L*W*H)-mm
- USC1040DII: 320×270×340; USC1540DII: 400×460×460; USC2240DII: 530×320×380
- Tank Size(L*W*H)-mm
- USC1040DII: 300×240×150; USC1540DII: 330×300×150; USC2240DII: 500×300×150
- Capacity(L)
- USC1040DII: 10; USC1540DII: 15; USC2240DII: 22.5
- Ultrasound frequency(KHz)
- 40
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
USC-DII Series LCD Ultrasonic Cleaner
Request a quoteOverview
Product overview
The USC-DII series comprises three heated ultrasonic cleaners: USC1040DII (10 L), USC1540DII (15 L) and USC2240DII (22.5 L), with ultrasonic power of 200, 400 and 500 W respectively. All operate at 40 kHz, and other frequencies from 20 to 45 kHz can be specified when ordering.
Ultrasonic power is adjustable from 10 to 100%, the bath heats from room temperature to 80°C and the timer runs from 1 to 9999 min. A 3.2-inch LCD shows the model, power, frequency, time and temperature, and also displays over-temperature, over-voltage, over-current and fault alarms. Working parameters can be stored, and a Degas function removes dissolved air quickly to improve cleaning.
The tank is stamped from 304 stainless steel, and the basket, housing and sound-reduction lid are also 304 stainless steel. Each unit has a water level mark, a drainage system and handles on both sides.
Specifications
Technical specifications
13 parameters
Specifications
- Machine size(L*W*H)-mm
- USC1040DII: 320×270×340; USC1540DII: 400×460×460; USC2240DII: 530×320×380
- Tank Size(L*W*H)-mm
- USC1040DII: 300×240×150; USC1540DII: 330×300×150; USC2240DII: 500×300×150
- Capacity(L)
- USC1040DII: 10; USC1540DII: 15; USC2240DII: 22.5
- Ultrasound frequency(KHz)
- 40
- Ultrasonic power(W)
- USC1040DII: 200; USC1540DII: 400; USC2240DII: 500
- Power adjustable(%)
- 10-100
- heating power(W)
- USC1040DII: 600; USC1540DII: 600; USC2240DII: 1000
- Temperature adjustable(℃)
- Room temperature-80
- Time adjustable(min)
- 1-9999
- Stainless steel grid
- Yes
- Water level
- Yes
- Sound-reduction lid lid
- Yes
- Drainage system
- Yes
Features
Key features
- 01
Three tank sizes
Available in 10 L, 15 L and 22.5 L capacities with 200 to 500 W of ultrasonic power.
- 02
Adjustable power and heat
Power is set from 10 to 100% and temperature from room temperature to 80°C.
- 03
Degas function
Rapid degassing removes dissolved air from the liquid to improve cleaning efficiency.
- 04
LCD with fault alarms
The 3.2-inch screen displays parameters and sounds alarms for over-temperature, over-voltage, over-current and faults.
- 05
304 stainless steel build
Tank, basket, housing and sound-reduction lid are made of 304 stainless steel.
- 06
Optional frequencies
20, 25, 28, 33, 35, 40 or 45 kHz can be specified at the time of order.
