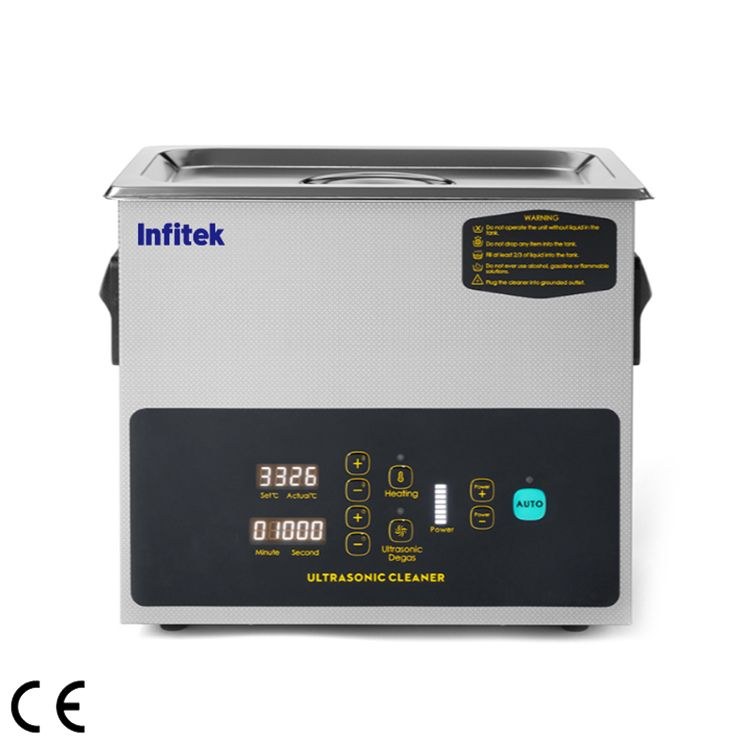

USC-DP Series Power-Adjustable Ultrasonic Cleaner
Seven 40 kHz ultrasonic cleaners from 3 L to 30 L with 10 to 100% power adjustment, heating to 80°C and dual-protection circuitry for cleaning and sample pretreatment.
Key specifications
- Power Supply
- 220V/50Hz
- Frequency (kHz)
- 40
- Ultrasonic Power (W)
- USC0340DP: 120; USC0440DP: 180; USC0640DP: 180; USC1040DP: 300; USC1540DP: 480; USC2240DP: 600; USC3040DP: 700
- Capacity (L)
- USC0340DP: 3; USC0440DP: 4; USC0640DP: 6; USC1040DP: 10; USC1540DP: 15; USC2240DP: 22.5; USC3040DP: 30
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
USC-DP Series Power-Adjustable Ultrasonic Cleaner
Request a quoteOverview
Product overview
The USC-DP series covers seven heated ultrasonic cleaners from the 3 L USC0340DP to the 30 L USC3040DP, with ultrasonic power from 120 W to 700 W. All run at 40 kHz using PZT piezoelectric ceramic transducers, with power adjustable from 10 to 100%, temperature control from room temperature to 80°C and a timer from 0 to 480 min.
Adjustable power suits both cleaning of specialised vessels and sample pretreatment such as homogenisation, emulsification, dispersion, extraction, degassing and dissolution. A degassing action expels dissolved air from the liquid during operation, and the dual-protection circuitry matches the transducers precisely.
The cleaners are used in schools, research institutes and the pharmaceutical, food, healthcare and chemical industries, and for precision parts such as circuit boards, optical lenses, medical devices and glassware. Models of 6 L and above include a drainage system and anti-slip handles.
Specifications
Technical specifications
12 parameters
Specification
- Power Supply
- 220V/50Hz
- Frequency (kHz)
- 40
- Ultrasonic Power (W)
- USC0340DP: 120; USC0440DP: 180; USC0640DP: 180; USC1040DP: 300; USC1540DP: 480; USC2240DP: 600; USC3040DP: 700
- Capacity (L)
- USC0340DP: 3; USC0440DP: 4; USC0640DP: 6; USC1040DP: 10; USC1540DP: 15; USC2240DP: 22.5; USC3040DP: 30
- Tank Dimensions (mm)
- USC0340DP: 240*140*100; USC0440DP: 300*155*100; USC0640DP: 300*155*150; USC1040DP: 300*240*150; USC1540DP: 330*300*150; USC2240DP: 500*300*150; USC3040DP: 500*300*200
- Overall Dimensions (mm)
- USC0340DP: 265*165*230; USC0440DP: 400*240*315; USC0640DP: 450*255*380; USC1040DP: 450*340*380; USC1540DP: 450*390*395; USC2240DP: 655*420*450; USC3040DP: 655*420*450
- Heating Power (W)
- USC0340DP: 200; USC0440DP: 300; USC0640DP: 400; USC1040DP: 500; USC1540DP: 600; USC2240DP: 800; USC3040DP: 800
- Piezoelectric Variable Frequency Transducer
- CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic
- Temperature Control
- RT.-80℃
- Power Adjustment
- 10%-100%
- Timer
- 0~480 min, Adjustable
- Net Weight (kg)
- USC0340DP: 3.2; USC0440DP: 4.2; USC0640DP: 5.4; USC1040DP: 7.4; USC1540DP: 9.4; USC2240DP: 13.3; USC3040DP: 13.8
Features
Key features
- 01
Seven capacities
Tank sizes of 3, 4, 6, 10, 15, 22.5 and 30 L with 120 to 700 W of ultrasonic power.
- 02
10 to 100% power control
Adjustable output covers delicate pretreatment as well as demanding cleaning tasks.
- 03
Heated bath
Thermostatic heating controls the liquid from room temperature to 80°C.
- 04
Rapid degassing
Dissolved air is expelled during operation to give a near-vacuum cleaning effect.
- 05
Dual-protection circuitry
Power-adjustable circuitry with precisely matched transducer components.
- 06
Drain and handles
Models of 6 L and above have a drainage system and anti-slip handles.
