Reference: SP-LUV7600

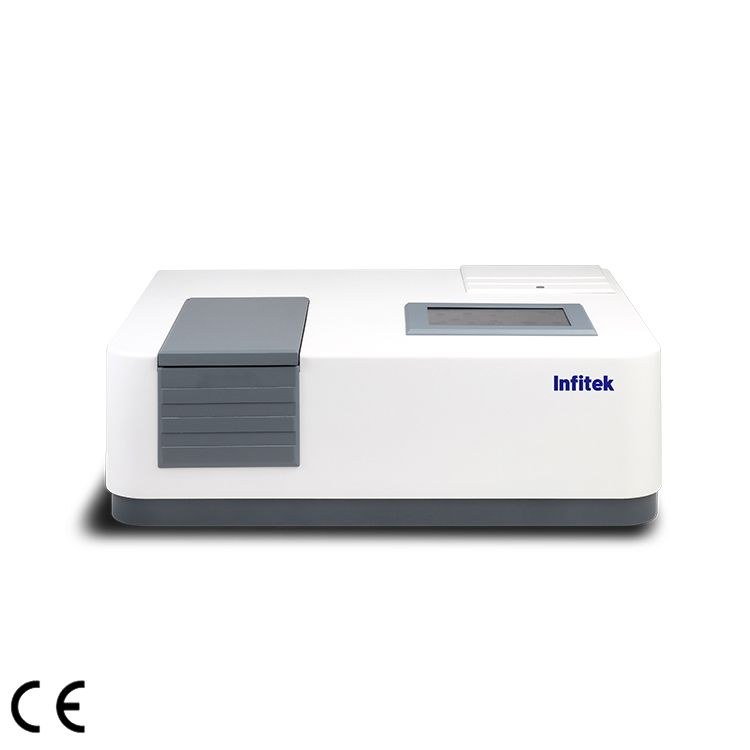

SP-LUV7600 Double Beam UV-Vis Spectrophotometer
Double beam UV-Vis spectrophotometer covering 190 to 1100 nm with continuously variable 0.5 to 6 nm bandwidth and stray light of 0.03% or less.
Key specifications
- Model
- SP-LUV7600
- Optical system
- Double-beam System
- Monochromator system
- Czerny-Turner monochromator
- Wavelength range
- 190nm~1100nm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SP-LUV7600 Double Beam UV-Vis Spectrophotometer
Request a quoteOverview
Product overview
The SP-LUV7600 is a double beam UV-Vis spectrophotometer with a Czerny-Turner monochromator and 1200 lines/mm grating, covering 190 to 1100 nm. Spectral bandwidth is continuously variable from 0.5 to 6 nm in 0.1 nm steps, wavelength accuracy is ±0.3 nm and stray light is 0.03% or less, which suits high absorbance samples.
Real-time digital ratio feedback in the double beam optics offsets source drift for a stable baseline, and built-in characteristic wavelengths are used for automatic wavelength checking and correction. The Hamamatsu long-life deuterium lamp is rated for more than 2000 hours, and both lamps can be replaced without removing the housing or realigning the optics.
A 7-inch colour touch screen runs wavelength scans, time scans, multi-wavelength and quantitative analysis and stores methods, with USB-A and USB-B outputs for data transfer.
Specifications
Technical specifications
27 parameters
Specifications
- Model
- SP-LUV7600
- Optical system
- Double-beam System
- Monochromator system
- Czerny-Turner monochromator
- Wavelength range
- 190nm~1100nm
- Wavelength accuracy
- ±0.3nm
- Wavelength reproducibility
- ≤0.1nm
- Spectral bandwidth
- 0.5~6.0nm
- Photometric accuracy
- ±0.002Abs(0~0.5Abs)、±0.004Abs(0.5~1.0Abs)、±0.3%T(0~100%T)
- Photometric reproducibility
- ≤0.001Abs(0~0.5Abs)、≤0.002Abs(0.5~1.0Abs)、≤0.1%T(0~100%T)
- Photometric range
- -0.00~200.0(%T) -4.0~4.0(A)
- Stray light
- ≤0.03%T(220nm,NaI;360nm,NaNO 2 )
- Baseline flatness
- ±0.0008A
- Baseline stability
- ≤0.0005Abs/h
- Noise
- ≤0.1%T(100%T),≤0.05%T(0%T),≤±0.0005A/h(500nm,0Abs,2nm bandwidth)
- Baseline Dark Noise
- ±0.1%T
- Scaning speed
- High / medium / low / very low
- WL scan interval
- 0.05/0.1/0.2/0.5/1/2 nm
- Grating
- 1200 lines / mm
- Detector
- Photocell
- Display
- 7-inch large-screen color touch LCD screen
- Light source
- Hamamatsu long-life deuterium lamp and long-life halogen tungsten lamp
- Photometric Mode
- T/A/Energy
- Output
- USB-A/USB-B
- Power
- AC90V~250V, 50H/ 60Hz
- N.W./G.W.(kg)
- 24/50
- Instrument Dimension (W*D*H)(mm)
- 600*470*220
- Package Dimension (W*D*H) (mm)
- 800*670*570
Features
Key features
- 01
Variable spectral bandwidth
Bandwidth adjusts from 0.5 to 6 nm in 0.1 nm steps to match resolution to the analysis.
- 02
Ultra-low stray light
Czerny-Turner optics keep stray light at 0.03% or less for high absorbance measurements.
- 03
Stable double beam baseline
Real-time digital ratio feedback offsets source drift, with baseline stability of 0.0005 Abs/h or better.
- 04
Automatic wavelength correction
Built-in characteristic wavelengths verify and correct accuracy to ±0.3 nm.
- 05
Easy lamp replacement
Hamamatsu deuterium lamp rated over 2000 hours, replaceable without opening the housing or optical adjustment.
- 06
7-inch touch screen
Runs wavelength, time, multi-wavelength and quantitative modes with method storage and USB output.
