Vacuum Oven DOV-55P, DOV-90P, DOV-55PV, DOV-90PV
Vacuum drying oven in 52 and 91 L sizes from ambient +10 to 250 °C with shelf direct heating, below 133 Pa vacuum and a 7 inch touch screen.
Key specifications
- Capacity(L)
- 52 / 91
- Heating Mode
- Shelf direct heating
- Dimension(W*D*H), Internal (mm)
- DOV-55P: 415*370*340; DOV-55PV: 415*370*340; DOV-90P: 450*450*450; DOV-90PV: 450*450*450
- Dimension(W*D*H), External (mm)
- DOV-55P: 635*565*796; DOV-55PV: 635*565*1296; DOV-90P: 670*645*906; DOV-90PV: 670*645*1406
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vacuum Oven DOV-55P, DOV-90P, DOV-55PV, DOV-90PV
Request a quoteOverview
Product overview

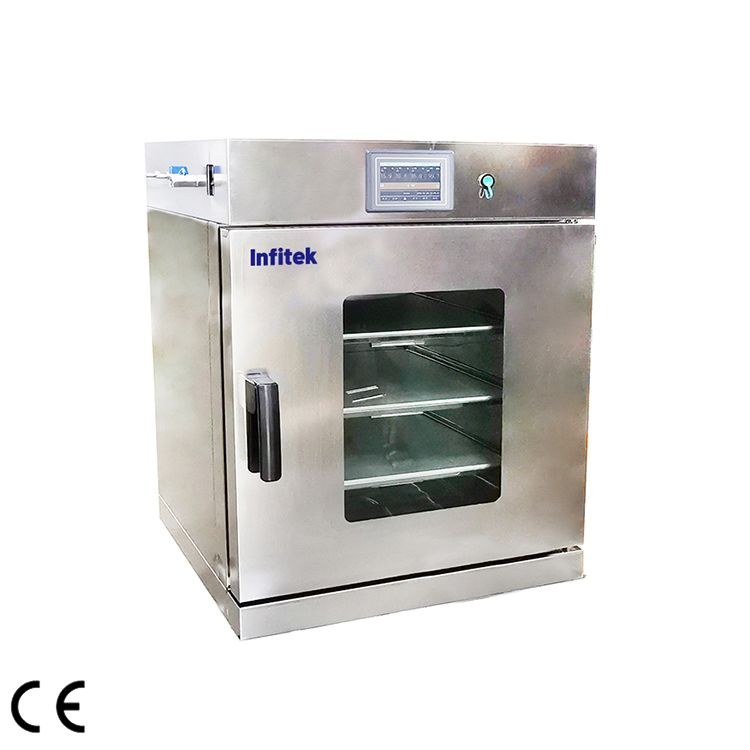

The DOV-P and DOV-PV vacuum ovens dry heat-sensitive, easily decomposed and easily oxidized substances in medicine, food, light industry, chemical, agricultural research and environmental laboratories. Two capacities are offered: 52 L (DOV-55P, DOV-55PV) and 91 L (DOV-90P, DOV-90PV).
Temperature is controlled from ambient +10 to 250 °C with ±1 °C fluctuation using shelf direct heating and multi-stage PID control. Each pluggable shelf is heated and controlled independently, and the vacuum reaches below 133 Pa. A color touch screen gives menu-based programming and real-time display.
The chamber is SUS304 mirror stainless steel with an embossed SUS304 exterior, an observation window and thickened aluminum silicate insulation. Alarms cover over-temperature, sensor faults and excessive vacuum. The PV models include a vacuum pump with an air filter on the line to extend pump life. A spare independently controlled shelf, RS485 to USB interface and built-in printer are optional.
Specifications
Technical specifications
22 parameters
Table 2
- Capacity(L)
- 52 / 91
- Heating Mode
- Shelf direct heating
- Dimension(W*D*H), Internal (mm)
- DOV-55P: 415*370*340; DOV-55PV: 415*370*340; DOV-90P: 450*450*450; DOV-90PV: 450*450*450
- Dimension(W*D*H), External (mm)
- DOV-55P: 635*565*796; DOV-55PV: 635*565*1296; DOV-90P: 670*645*906; DOV-90PV: 670*645*1406
- Temperature, Range (℃)
- RT+10~250
- Fluctuation (℃)
- ±1
- Resolution (℃)
- 0.1
- Sensor
- PT100
- Controller
- Multi-stage PID
- Vacuum Degree Range
- <133Pa
- Vacuum Nozzle Diameter(mm)
- Φ10
- Display
- 7.0 inches LCD color touch screen
- Timer
- 0~9999min / 0~9999h
- Material, Internal
- SUS304 mirror stainless steel
- Material, External
- SUS304 embossed stainless steel
- Shelves(Standard)
- 2
- Safety Device
- Over temperature visible& audible alarm, sensor fault alarm, vacuum overvalue alarm
- Electricity, Voltage/Frequency
- AC 220/110V, 50/60Hz
- Consumption (W)
- DOV-55P: 1200; DOV-55PV: 1600; DOV-90P: 1600; DOV-90PV: 2000
- N.W./G.W. (kg)
- DOV-55P: 67/92; DOV-55PV: 87/112; DOV-90P: 82/105; DOV-90PV: 102/125
- Package Dimension(W*D*H) (mm)
- DOV-55P: 804*705*957; DOV-55PV: 760*730*1500; DOV-90P: 860*810*1040; DOV-90PV: 840*785*1562
- Optional
- Spare shelf（independent temperature control）,RS485 transfer to USB communication interface, built-in printer
Features
Key features
- 01
Two capacities
52 L and 91 L chambers, each available with or without a vacuum pump.
- 02
Independent shelf heating
Pluggable shelves heat directly, with each shelf temperature controlled separately.
- 03
Deep vacuum
Vacuum degree below 133 Pa for drying heat-sensitive and oxidizable materials.
- 04
Touch screen PID
Color touch screen with multi-stage programmable PID control and live display.
- 05
Stainless construction
SUS304 mirror interior and embossed SUS304 exterior for corrosion resistance.
- 06
Pump included on PV
DOV-55PV and DOV-90PV include a vacuum pump with an inline air filter.
