Reference: SHK-R20V

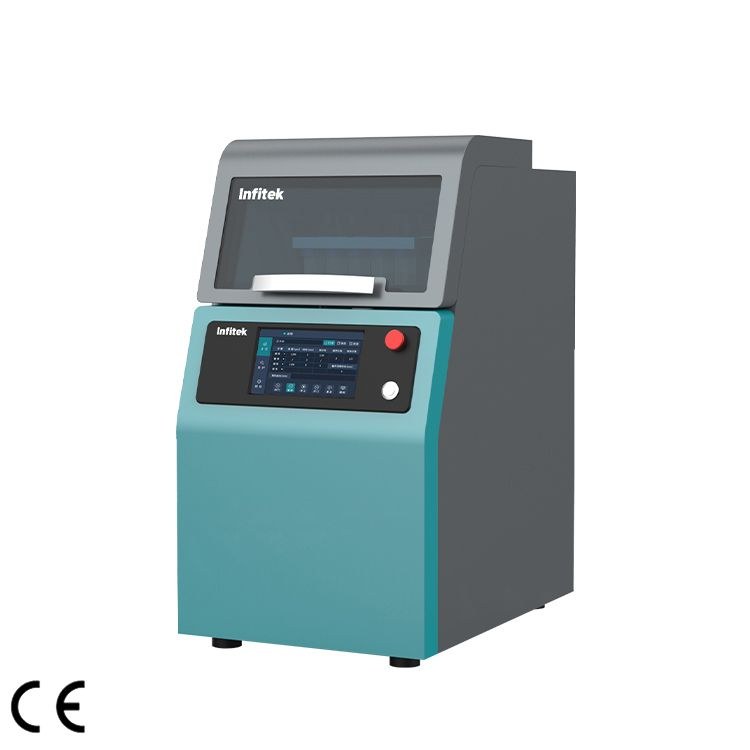

SHK-R20V Vertical Oscillator
High-throughput vertical oscillator processing up to 576 samples per batch at 500 to 1800 rpm for mixing, homogenisation and QuEChERS extraction.
Key specifications
- Model
- SHK-R20V
- High Throughput
- Up to 576 samples can be processed in one batch
- Oscillation Speed
- 500-1800rpm, Max. Amplitude: 32mm
- Oscillation Cycle
- Max. 10mins for each oscillation step, max. 4 steps; Able to set max. 20 cycles of repeating the oscillation method, max. rest time between cycles is 60mins.
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SHK-R20V Vertical Oscillator
Request a quoteOverview
Product overview
The SHK-R20V vertical oscillator is designed for rapid mixing, cell disruption and tissue homogenisation of plant and animal samples, and meets the extraction requirements of QuEChERS pre-treatment methods. It processes up to 576 samples per batch at 500 to 1800 rpm with a maximum amplitude of 32 mm.
Programs can include up to four gradient steps of up to 10 minutes each, repeated for up to 20 cycles with rest times of up to 60 minutes, and a delayed start of up to 12 hours. Up to 50 methods are stored and run from a 7-inch colour touch screen, and the unit checks load weight before running to prevent overloading. Standard racks hold 20 × 50 mL, 38 × 15 mL, 10 × 100 mL or 54 × 2 mL tubes, and custom racks are available.
An electronic door lock stops operation when the cover opens, with a mechanical emergency release and a front emergency button. A viewing window with LED lighting, a gas-assisted lid and internal sound insulation complete the compact design.
Specifications
Technical specifications
17 parameters
Specification
- Model
- SHK-R20V
- High Throughput
- Up to 576 samples can be processed in one batch
- Oscillation Speed
- 500-1800rpm, Max. Amplitude: 32mm
- Oscillation Cycle
- Max. 10mins for each oscillation step, max. 4 steps; Able to set max. 20 cycles of repeating the oscillation method, max. rest time between cycles is 60mins.
- Appointment Operation
- Max.12 hours
- Gradient Program Control
- 4 steps of gradient setting
- Sample Rack
- 20*50mL, 38*15mL, 10*100mL, 54*2mL; Other specifications can be customized;
- Max. Sample Capacity
- 576 positions
- Control Software
- 7-inch color touch screen to display real-time operating status
- Method Storage
- Max.50 methods
- Overweight Detection
- Perform weight detection before operation to prevent the equipment from running overweight
- Non-Operating Storage Environment
- Temperature: 0℃~40℃ (32℉~104℉) Humidity: 20%~85% RH
- Operating Environment
- Temperature: 10℃~40℃ (50℉~104℉) Humidity: 20%~80% RH
- Electricity
- AC 200~240V, 50/60Hz, 1500W
- External Dimension
- 370*520*690mm
- Package Dimension
- 800*600*1200mm (Including 1 pallet)
- N.W./G.W.
- 70kg/96kg (Including 1 pallet)
Features
Key features
- 01
Up to 576 samples
Interchangeable racks for 2, 15, 50 and 100 mL tubes, with custom racks available.
- 02
High-speed oscillation
500 to 1800 rpm with a maximum amplitude of 32 mm.
- 03
Gradient programs
Four steps per method, up to 20 repeat cycles and storage for 50 methods.
- 04
Overweight detection
Checks load weight before each run to prevent overloading.
- 05
Safety interlocks
Electronic door lock, mechanical emergency release and front emergency stop button.
- 06
Viewing and noise control
LED-lit viewing window, assisted lid and sound insulation inside the housing.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
