Reference: MTP-685 / MTP-682

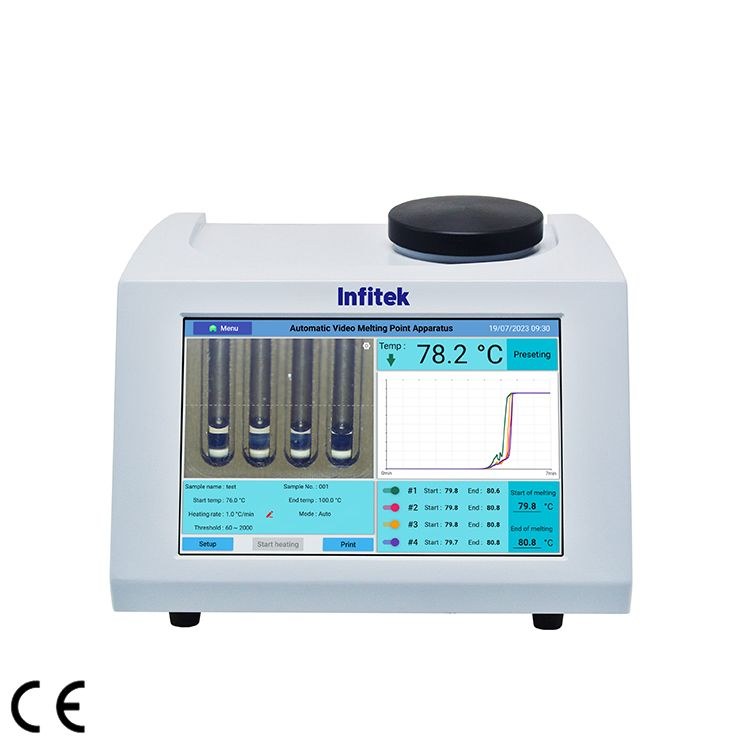

MTP-685 / MTP-682 Video Melting Point Apparatus
Video melting point apparatus with a 720P HD camera, 10.1-inch Android touch screen and four capillaries, measuring up to 400 °C or 360 °C.
Key specifications
- Measurement Range
- MTP-685: RT.~400℃; MTP-682: RT.~360℃
- Measurement Mode
- Auto / Visual (HD camera, video capture, playback monitoring)
- Measurement Methods
- MTP-685: 200; MTP-682: 150
- Number of Users
- MTP-685: 200; MTP-682: 150
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MTP-685 / MTP-682 Video Melting Point Apparatus
Request a quoteOverview
Product overview
The MTP-685 and MTP-682 are video melting point apparatus that measure four capillaries at once in automatic or visual mode. The MTP-685 covers room temperature to 400 °C and the MTP-682 room temperature to 360 °C, with linear heating rates of 0.1 to 20 °C/min, 0.01 °C display resolution and accuracy of ±0.3 °C up to 200 °C and ±0.5 °C above.
A 720P HD camera records the melting process for video playback on a 10.1-inch Android capacitive touch screen, and PID and PWM control regulate temperature. Light source brightness and detection sensitivity can be adjusted for dark samples. The MTP-685 stores 200 methods and 40,000 curves with 128 GB storage, while the MTP-682 stores 150 methods and 20,000 curves with 64 GB. Electronic signatures are standard and an optional audit trail supports Pharmacopoeia, GMP, GLP and FDA 21 CFR Part 11 requirements.
Connectivity includes RS232, three USB ports, RJ-45 and Wi-Fi. It is used for drugs, fragrances, dyes and other organic crystalline substances.
Specifications
Technical specifications
22 parameters
Specification
- Measurement Range
- MTP-685: RT.~400℃; MTP-682: RT.~360℃
- Measurement Mode
- Auto / Visual (HD camera, video capture, playback monitoring)
- Measurement Methods
- MTP-685: 200; MTP-682: 150
- Number of Users
- MTP-685: 200; MTP-682: 150
- Audit Trail
- Optional
- Electronic Signature
- Yes
- Minimum Indication
- 0.01℃
- Linear Heating Rate
- 0.1℃/min~20℃/min
- Indication Error
- ≤ 200℃: ±0.3℃; ＞200℃: ±0.5℃
- Indication Value Repeatability
- 0.3℃ (heating rate: 1.0℃/min)
- Linear Heating Rate Error
- ±10%
- Number of Capillary
- 4
- Capillary Dimensions
- Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm
- Sample Height
- 3mm
- Operation System
- Android
- Data Storage
- MTP-685: 128G; MTP-682: 64G
- Display
- 10.1-inche capacitive touch screen
- Graph Storage
- MTP-685: 40,000 groups; MTP-682: 20,000 groups
- Interface
- RS 232*1, USB*3, RJ-45*1, WIFI
- Electricity
- 100~240V, 50/60Hz, 150W
- Package Dimension
- 495*493*350mm
- Gross Weight
- 5kg
Features
Key features
- 01
HD video observation
A 720P camera records each melt for clear viewing and playback.
- 02
Four capillaries
Measures four samples simultaneously in automatic or visual mode.
- 03
Android touch screen
10.1-inch capacitive display with storage for methods, users and curves.
- 04
Adjustable light and sensitivity
Brightness and detection sensitivity can be tuned for dark coloured samples.
- 05
Compliance support
Electronic signatures and an optional audit trail for GMP, GLP and FDA 21 CFR Part 11.
- 06
Flexible connectivity
RS232, three USB ports, RJ-45 and Wi-Fi.
