Reference: VSC-P80

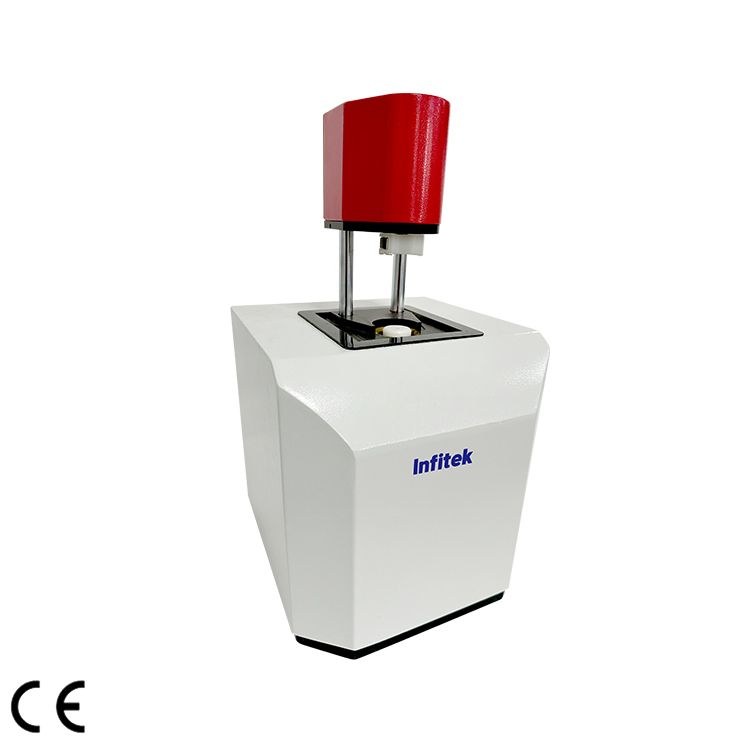

VSC-P80 Starch Pasting Viscometer
A programmable rotational viscometer for starch pasting and gelatinization testing, with heating and cooling up to 15°C/min and speeds from 20 to 5000 rpm.
Key specifications
- Model
- VSC-P80
- Operation Environment
- Temperature:10℃-45℃; Relative Humidity: 10-90%
- Heating Mode
- Uses copper metal block heating method and has overheat protection function.
- Automatic Analysis
- Max. viscosity, attenuation, retention strength, recovery value, final viscosity, stirring value, gelatinization temperature
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
VSC-P80 Starch Pasting Viscometer
Request a quoteOverview
Product overview
The VSC-P80 is a rotational viscometer with programmable temperature and variable shear, designed to test the stirring and gelatinization properties of starch. It is used to assess starch quality in wheat, corn, rice, sorghum, potato, lotus root and other crops, using a sample of only 2 to 3 g.
Copper block heating with overheat protection and program-controlled cooling reach rates of up to 15°C/min over a 0 to 100°C range, while a sensor in the sample bowl measures temperature directly to ±0.3°C. A specially shaped paddle keeps the sample fully mixed with no settling, and speed is computer controlled from 20 to 5000 rpm. Test programs can have up to 128 steps, and results are reported in cP and RVU.
The software automatically reports peak viscosity, breakdown, holding strength, setback, final viscosity and pasting temperature, plus 20 extended results. It is available in Chinese, English, Spanish and French, exports Excel and PDF reports and supports administrator control, locked reports and traceability.
Specifications
Technical specifications
19 parameters
Specifications
- Model
- VSC-P80
- Operation Environment
- Temperature:10℃-45℃; Relative Humidity: 10-90%
- Heating Mode
- Uses copper metal block heating method and has overheat protection function.
- Automatic Analysis
- Max. viscosity, attenuation, retention strength, recovery value, final viscosity, stirring value, gelatinization temperature
- Test Program Steps
- Up to 128 can be designed
- Sample Dosage
- 2～3g
- Heating
- Program-controlled heating, the speed can reach up to 15℃/min
- Cooling
- Program-controlled cooling, the speed can reach up to 15℃/min
- Temp. Accuracy
- No more than ±0.3℃ (under 25℃)
- Temp. Control Range
- 0~100℃
- Speed Range
- Computer controlled, adjustable within the range of 20~5000rpm
- Speed Accuracy
- ±1%（160rpm）
- Unit of Use
- cP and RVU
- Viscosity Range
- 20~50,000cP (80rpm);10-25,000cP (160rpm)
- Viscosity Accuracy
- Less than or equal to ±3% (S2000 oil, 5000cP)
- Display
- 4 rows*20 bits
- Electricity
- 220V, 50Hz
- Tower Cap Lifting Control System
- Stepper motor controls lifting and lowering, lifting speed: 0-10mm/s
- Blade Rotation Control System
- Brushless motor control
Features
Key features
- 01
Programmable heating and cooling
Rates of up to 15°C/min from 0 to 100°C with ±0.3°C accuracy.
- 02
Thorough mixing
A special paddle geometry prevents starch granules from settling.
- 03
Wide speed range
Computer-controlled speed from 20 to 5000 rpm with ±1% accuracy.
- 04
Automatic pasting analysis
Reports peak and final viscosity, breakdown, setback and pasting temperature.
- 05
Flexible test programs
Up to 128 program steps and 20 user-defined extended results.
- 06
Traceable reports
Excel and PDF export with administrator rights and non-editable reports.
