Reference: AutoEmpore
AutoEmpore Automated SPE System for Large-Volume Water Samples
Automated solid phase extraction for 100 mL to 4 L water samples, with direct loading, online filtration, 8 solvent ports, wireless tablet control and 3 to 12 channels.
Key specifications
- Stations
- 3 / 6 / 9 / 12 (modular; combine up to 4 units)
- Sample volume
- From 100 mL up to 4 L
- Sample loading flow rate
- 3 to 100 mL/min (depends on disk/cartridge type and sample)
- Solvent ports
- 8
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
AutoEmpore Automated SPE System for Large-Volume Water Samples
Request a quoteOverview
Product overview

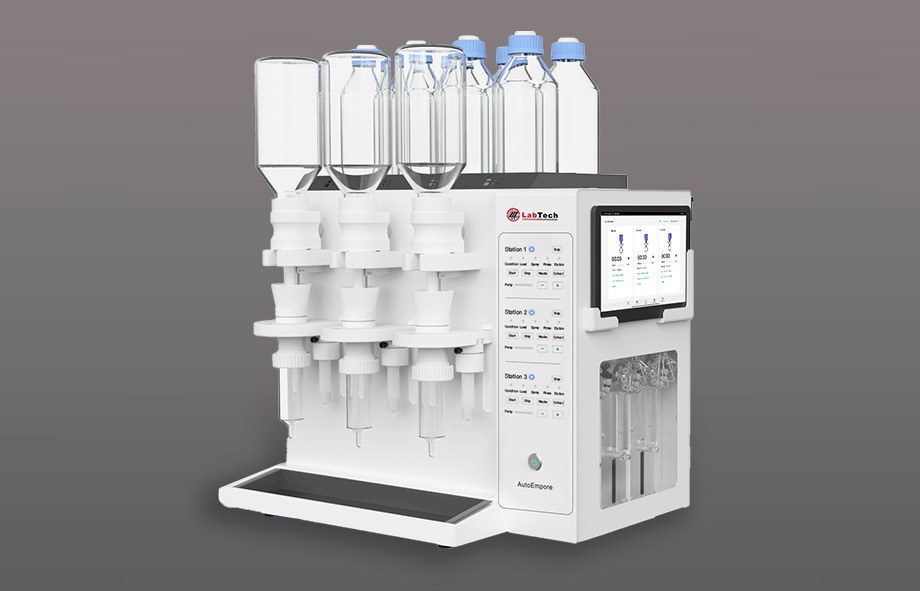

AutoEmpore is a LabTech automated system for solid phase extraction of large-volume water samples, including clean water, surface water, municipal wastewater and industrial effluents. Fast sample loading, automatic online filtration and water removal replace many manual steps and shorten processing time.
Samples load directly from the original bottle through a short pathway, without pre-filtration or transfer. Each channel runs its own method with a dual independent syringe pump system for accurate flow control. Up to 8 solvents sit on top of the unit, and the system works with 1 to 20 mL cartridges and 25 or 47 mm disks, with a 90 mm option.
The modular design runs 3 or 6 samples per unit, and up to four units can be combined for 12 channels. Control is by wireless tablet or the instrument panel. The inert, PFAS-free construction suits EPA 533, 537 and 1633 methods, and applications extend to pesticides, mycotoxins, APIs, oil and grease and PAHs.
Specifications
Technical specifications
17 parameters
- Stations
- 3 / 6 / 9 / 12 (modular; combine up to 4 units)
- Sample volume
- From 100 mL up to 4 L
- Sample loading flow rate
- 3 to 100 mL/min (depends on disk/cartridge type and sample)
- Solvent ports
- 8
- Cartridges
- 1, 3, 6, 12 and 20 mL
- Disks
- 25 and 47 mm (90 mm option)
- Collection vials
- 50 mL MultiVap concentration cup, 40 mL vial, 50 mL centrifuge tube
- Nitrogen input pressure
- 0.1 to 0.2 MPa
- Pumps
- Dual independent syringe pump system per channel
- Filtration
- Automatic online filtration and water removal; no pre-filtration needed
- Control
- Smart wireless tablet control or instrument panel
- Dimensions (W x H x D)
- 606 x 740 x 465 mm (3-station)
- Weight
- 30 kg (3-station)
- Power
- 100 to 240 VAC, 50/60 Hz, 4.0 A; 221 W max.
- Operating environment
- Indoor, 5 to 30 °C, below 2000 m
- Method compatibility
- EPA 533, 537 and 1633 (PFAS); PFAS-free construction
- Accessories
- 25 and 47 mm disk hold cups, 1, 3/6 and 12/20 mL cartridge adapters, PFAS free kit
Features
Key features
- 01
Direct water sampling
Raw water processed without pre-filtration or transfer.
- 02
Automatic online filtration
Integrated filtration and water removal.
- 03
Modular channels
3 to 12 channels, up to four units combined.
- 04
Independent methods
Dual syringe pumps per channel for accurate flow.
- 05
Multi-solvent
Up to 8 solvents mounted on top.
- 06
PFAS methods
PFAS-free construction, EPA 533, 537 and 1633 compatible.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
