Reference: DigiBlock ED/EHD series
DigiBlock Hot Block Digestion Systems
Open block digestion systems for up to 54 tubes, with PTFE coated aluminum or graphite blocks up to 450 °C and optional iTOUCH remote controller, for metals sample preparation.
Key specifications
- Models
- ED16S, ED36S, ED54S, EHD36S; each also as iTOUCH version
- Power
- ED16S: 1000; ED36S: 1400; ED54S: 3000; EHD36S: 3000 W
- Max. temperature
- ED16S: 210; ED36S: 210; ED54S: 240; EHD36S: 450 °C
- Accuracy
- ED16S, ED36S: ±0.2 °C; ED54S, EHD36S: ±1 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
DigiBlock Hot Block Digestion Systems
Request a quoteOverview
Product overview
The LabTech DigiBlock line provides open hot block digestion for metals analysis and organic sample digestion. LabTech notes that sample preparation takes about 85% of the time associated with atomic spectroscopy analysis, so quality, ease of use and speed of digestion are central.
The line has eight models: the ED16S, ED36S, ED54S and EHD36S, each also available as an iTOUCH version. Blocks are PTFE coated aluminum alloy or PTFE coated graphite, hold from 16 x 100 mL to 54 x 50 mL tubes, and reach 210, 240 or 450 °C depending on model. Rapid open digestions of up to 54 organic samples with a dry weight of several grams each are possible, using low cost disposable tubes.

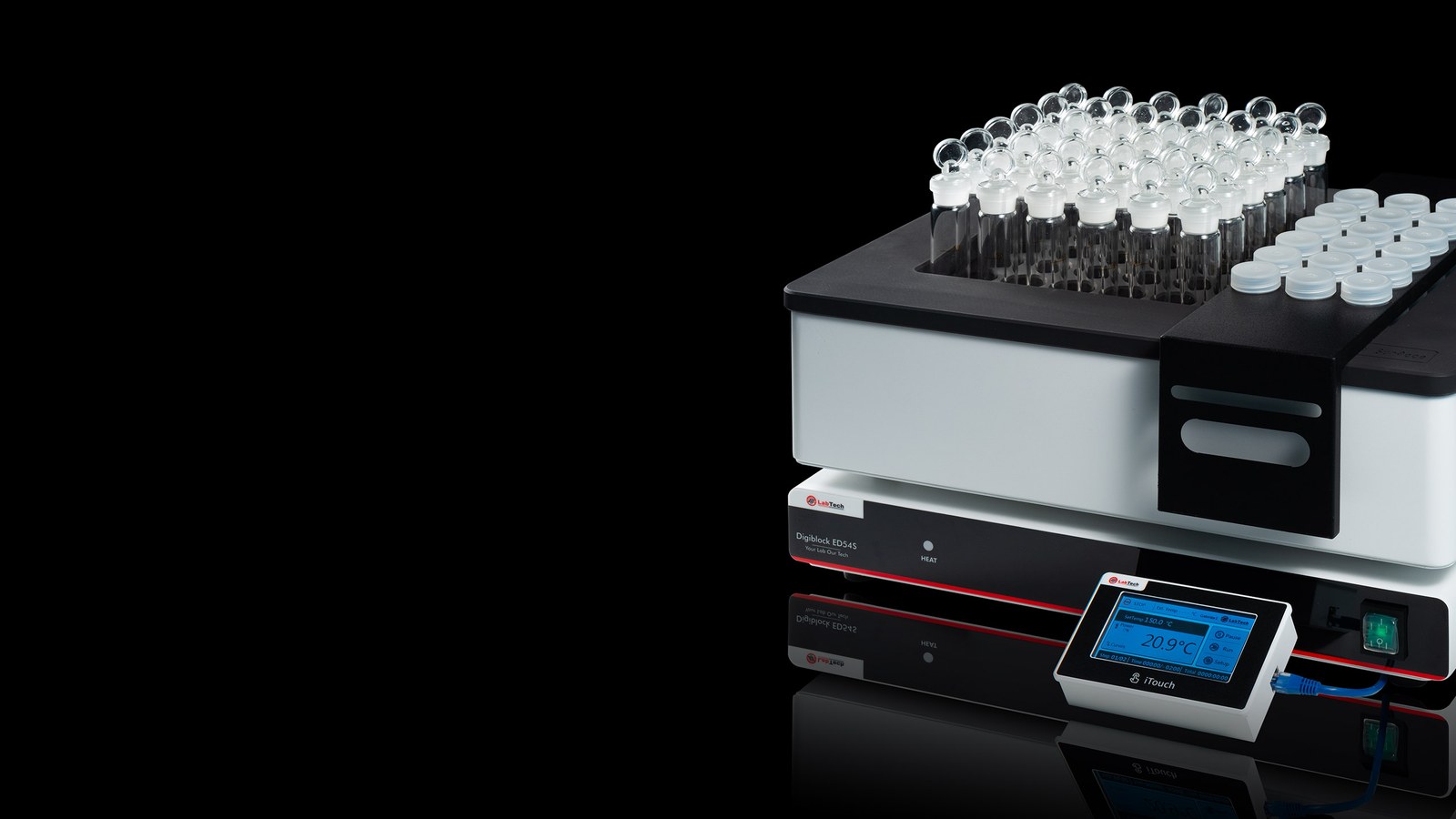

iTOUCH versions come with a separate controller on a 2 m cable that attaches by magnets to any metal surface, such as the side of a fume hood or outside a laminar flow cabinet, to control the whole digestion process.
Specifications
Technical specifications
15 parameters
- Models
- ED16S, ED36S, ED54S, EHD36S; each also as iTOUCH version
- Power
- ED16S: 1000; ED36S: 1400; ED54S: 3000; EHD36S: 3000 W
- Max. temperature
- ED16S: 210; ED36S: 210; ED54S: 240; EHD36S: 450 °C
- Accuracy
- ED16S, ED36S: ±0.2 °C; ED54S, EHD36S: ±1 °C
- Tubes
- ED16S: 16 x 100 mL; ED36S: 36 x 50 mL; ED54S: 54 x 50 mL; EHD36S: 36 x 50 mL
- Heating block
- ED16S, ED36S: PTFE coated aluminum alloy; ED54S, EHD36S: PTFE coated graphite
- Dimensions (L x W x H), standard
- ED16S: 39x28x19; ED36S: 42x42x19; ED54S: 52.5x40x29; EHD36S: 54x45x20 cm
- Dimensions (L x W x H), iTOUCH
- ED16S: 39x31x19; ED36S: 42x44x19; ED54S: 54x43x29; EHD36S: 54x48x20 cm
- Weight
- ED16S: 22; ED36S: 25; ED54S: 42; EHD36S: 28 kg
- Power supply
- 230 V, 50/60 Hz
- Ordering codes
- LH7015, LH7016, LH7018, LH7017 (iTOUCH: suffix /IT)
- iTOUCH controller
- Separate controller on a 2 m cable with built-in magnets for mounting on metal surfaces
- Vessels
- Glass (to 450 °C), PP (to 130 °C), PTFE (to 210 °C); 50 and 100 mL
- Racks
- Stainless steel, PTFE coated, polycarbonate and PTFE racks, 16 or 18 positions
- Included accessories
- Racks, PP vessels and capped glass vessels matching the block positions
Features
Key features
- 01
Up to 54 positions
Open digestion of up to 54 samples of several grams each.
- 02
Up to 450 °C
Graphite EHD36S reaches 450 °C for a wide range of applications.
- 03
Chemical resistance
PTFE coated aluminum or graphite heating blocks.
- 04
Uniform temperature
Consistent temperature regardless of sample position.
- 05
iTOUCH remote control
Controller on a 2 m cable mounts magnetically outside the hood.
- 06
Disposable tubes
Low cost disposable PP tubes speed up and simplify digestion.
