Reference: EH series

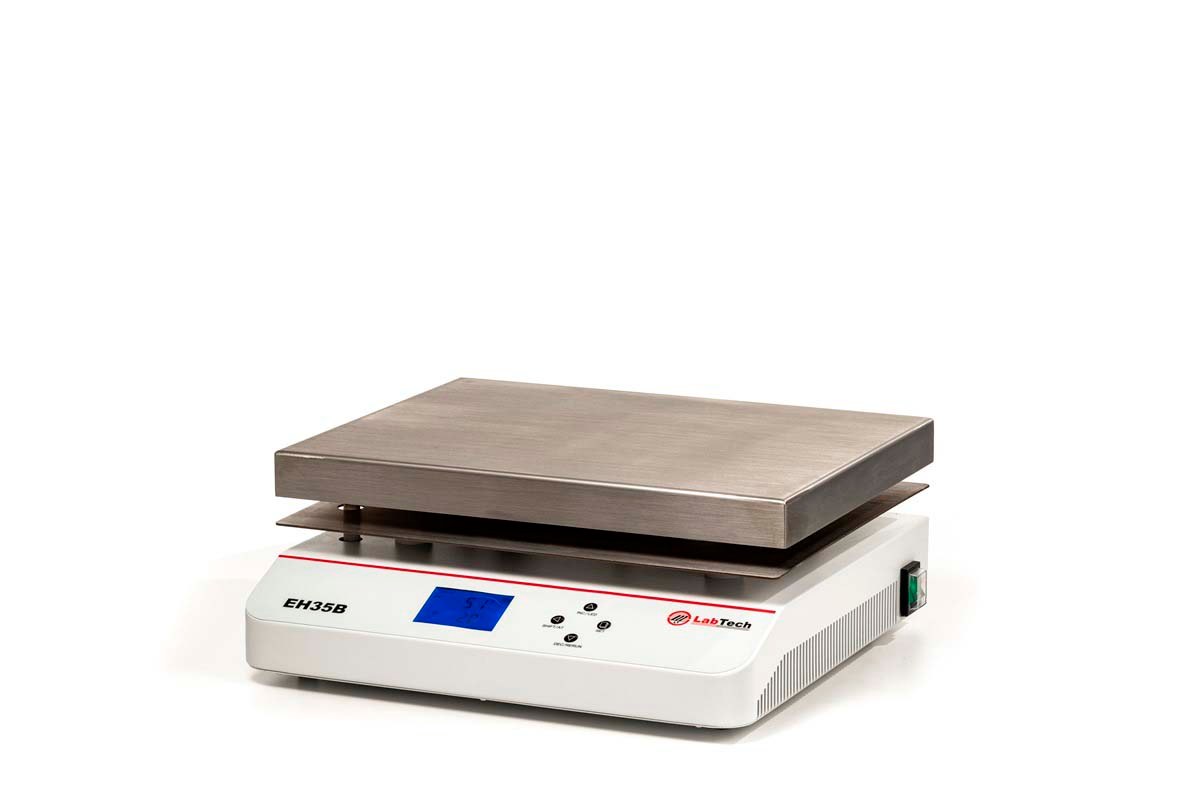

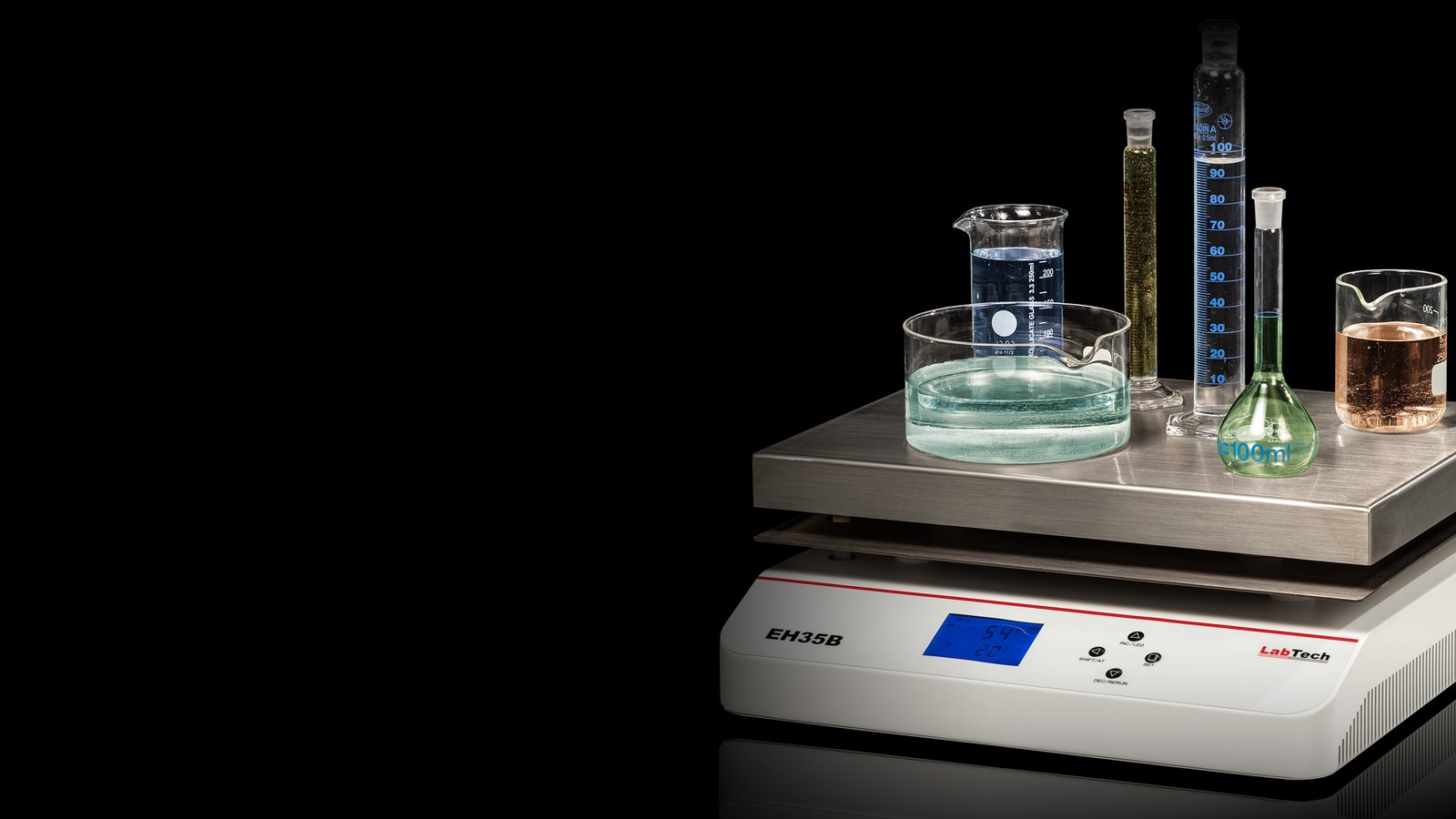

EH Series Laboratory Hotplates
Eight heavy-duty laboratory hotplates with a 40 x 30 cm PTFE coated aluminum or stainless steel surface, up to 200 or 350 °C, including a model with wireless remote control.
Key specifications
- Models
- EH20APLUS, EH20B, EH20S, EH20R, EH20D, EH35APLUS, EH35B, EH35S
- Heating power
- 2000 W
- Temperature range
- EH20 models: ambient to 200 °C; EH35 models: ambient to 350 °C
- Temperature control
- EH20APLUS, EH35APLUS: switch (LED); EH20B, EH35B: P.I.D. (LCD); EH20S, EH35S: P.I.D. (LCD) multipoint heating and dual sensor; EH20R: P.I.D. (LCD) wireless remote control; EH20D: P.I.D. (LED)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
EH Series Laboratory Hotplates
Request a quoteOverview
Product overview
The LabTech EH series hotplates are built for daily heating work such as digestion, evaporation and acid distillation. LabTech designed the line to handle heavy containers, chemical attack and rough daily use.
The eight models share a 40 x 30 cm heating area and 2000 W of heating power. EH20 models use an aluminum alloy surface with PTFE coating and reach 200 °C; EH35 models use stainless steel and reach 350 °C. Control options range from a simple switch with LED display to P.I.D. control with accuracy down to ±0.2 °C.
The EH20R adds a 2.4 GHz wireless remote controller for real-time monitoring and setting, and the EH20S and EH35S offer programmable multipoint heating with a dual sensor. The plates are rated for more than 48 hours of continuous operation.
Specifications
Technical specifications
13 parameters
- Models
- EH20APLUS, EH20B, EH20S, EH20R, EH20D, EH35APLUS, EH35B, EH35S
- Heating power
- 2000 W
- Temperature range
- EH20 models: ambient to 200 °C; EH35 models: ambient to 350 °C
- Temperature control
- EH20APLUS, EH35APLUS: switch (LED); EH20B, EH35B: P.I.D. (LCD); EH20S, EH35S: P.I.D. (LCD) multipoint heating and dual sensor; EH20R: P.I.D. (LCD) wireless remote control; EH20D: P.I.D. (LED)
- Temperature accuracy
- EH20APLUS, EH35APLUS: ±5.0 °C; EH20B, EH20S, EH20R: ±1.0 °C; EH20D: ±0.2 °C; EH35B, EH35S: ±2.0 °C
- Heating surface
- EH20 models: aluminum alloy with PTFE coating; EH35 models: stainless steel
- Heating area
- 40 x 30 cm
- Dimensions (L x W x H)
- 40 x 30 x 14 cm
- Weight
- 18 kg
- Non-stop working time
- > 48 h
- Power supply
- 230 V, 50/60 Hz
- Ordering codes
- LH2011, LH2020, LH2021, LH2022, LH2030, LH2041, LH2050, LH2060
- EH20R remote
- 2.4 GHz wireless controller for real-time monitoring and setting
Features
Key features
- 01
Large heating area
40 x 30 cm surface for multiple containers.
- 02
Choice of surface
PTFE coated aluminum to 200 °C or stainless steel to 350 °C.
- 03
Wireless remote (EH20R)
Monitor and adjust temperature from a 2.4 GHz remote controller.
- 04
Continuous duty
Rated for more than 48 hours non-stop operation.
- 05
Microprocessor control
Digital temperature control for stable operation.
- 06
Corrosion resistance
Anticorrosion coated or stainless steel heating surfaces.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
