Reference: EV20 / EV50
EV Series 20 L and 50 L Pilot-Scale Large Rotary Evaporators
Pilot-scale 20 L and 50 L rotary evaporators with motorized lift, triple-coil condenser, online feeding and built-in vacuum controller with 100-step programs.
Key specifications
- Models
- EV20, EV50
- Rotation speed
- EV20: max. 150 rpm; EV50: max. 120 rpm
- Lifting
- Motorized, 200 mm stroke
- Heating bath temperature
- Room temperature to 180 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
EV Series 20 L and 50 L Pilot-Scale Large Rotary Evaporators
Request a quoteOverview
Product overview

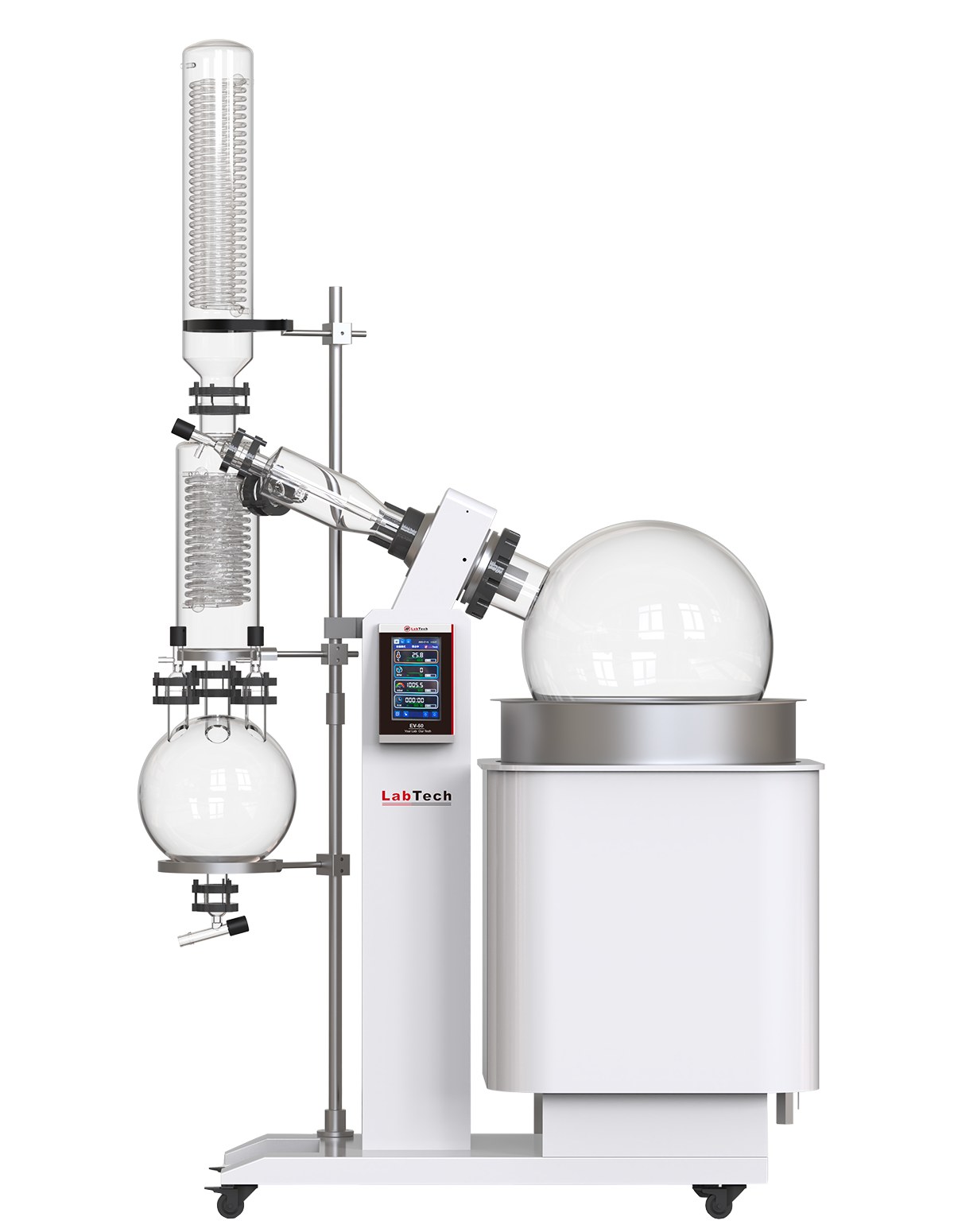

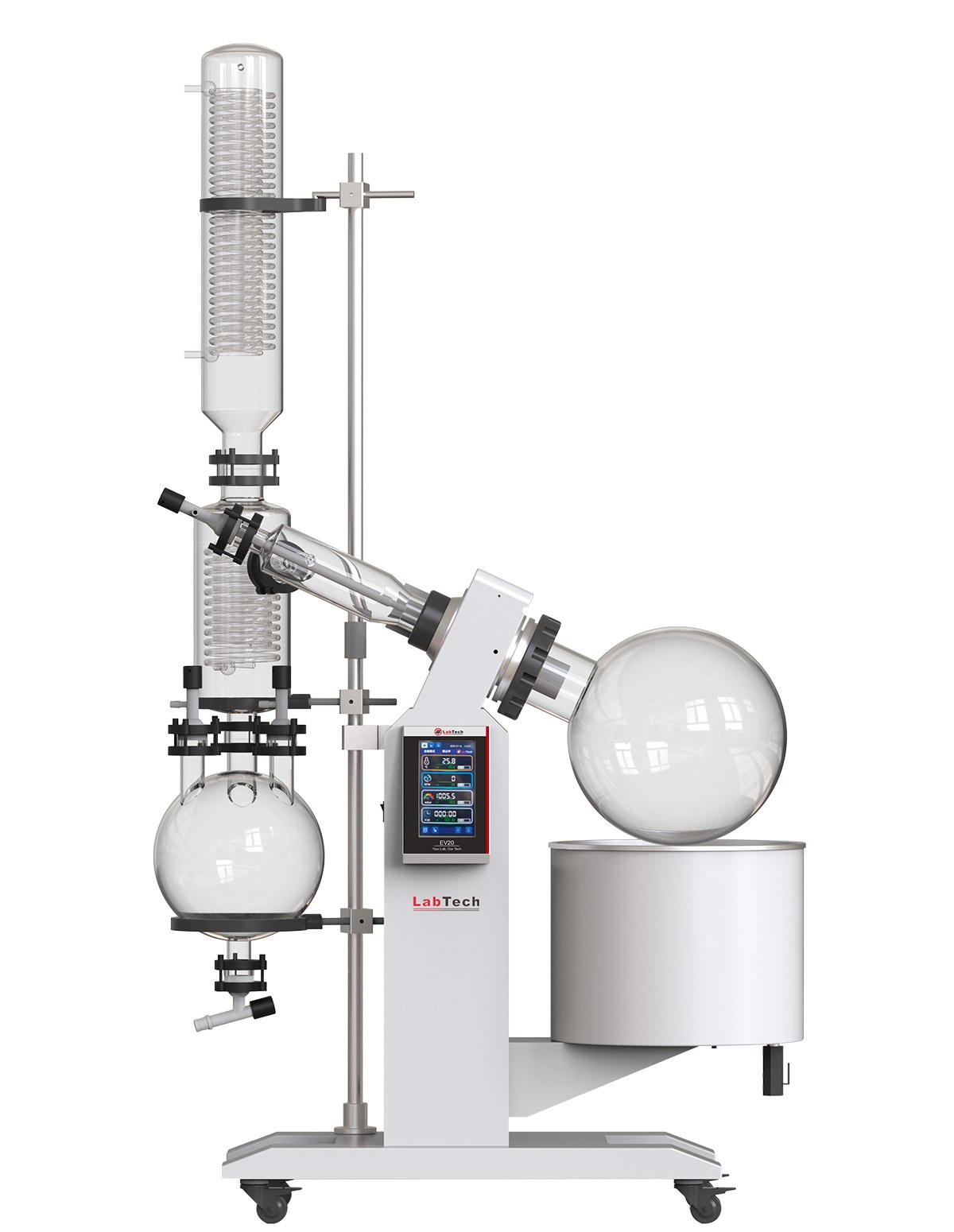

The LabTech EV Series brings rotary evaporation from the laboratory to pilot scale. Two models are available, the EV20 for 10 or 20 L flasks and the EV50 for 50 L, for pharmaceutical, chemical, biotechnology and food and beverage work that needs scalable distillation.
A vertical triple-coil condenser with a large condensation area supports high sample recovery, and an online feeding function allows large volumes to be distilled continuously. The sealing system provides corrosion resistance and airtight performance. A large color touch screen shows all parameters, and the built-in vacuum controller runs distillation programs of up to 100 steps.
The PTFE coated stainless steel bath works with water or oil up to 180 °C under intelligent PID control, and a floating switch detects low water level. A motorized vertical lift, dry-run, overload, over-temperature, overcurrent and leakage protection, and a complete glassware set are included.
Specifications
Technical specifications
17 parameters
- Models
- EV20, EV50
- Rotation speed
- EV20: max. 150 rpm; EV50: max. 120 rpm
- Lifting
- Motorized, 200 mm stroke
- Heating bath temperature
- Room temperature to 180 °C
- Bath
- Stainless steel with PTFE coating; water or oil; floating switch for low water level
- Temperature control
- PID; ±1 °C (water), ±2 °C (oil)
- Heating power
- EV20: 4000 W; EV50: 6000 W
- Evaporation capacity
- EV20: 10 / 20 L; EV50: 50 L
- Condenser
- Vertical triple-coil; area EV20: 1.5 m²; EV50: 2.25 m²
- Evaporation rate (H2O)
- EV20: 5.8 L/h; EV50: 8.5 L/h
- Vacuum control
- Built-in controller, up to 100-step distillation programs
- Display
- Large color touch screen, multi-parameter
- Safety protection
- Dry-run, lifting overload, over-temperature, motor overcurrent, residual current (leakage)
- Dimensions (L x W x H)
- EV20: 1100 x 550 x 1900 mm; EV50: 1260 x 630 x 2140 mm
- Power supply
- EV20: 220 V ±10%, 50/60 Hz, 25 A; EV50: 220 V ±10%, 50/60 Hz, 32 A
- Ordering codes
- LEV0020, LEV0050
- Other
- Online feeding function; complete glassware set included
Features
Key features
- 01
Pilot-scale capacity
10/20 L (EV20) or 50 L (EV50) evaporating flasks.
- 02
Triple-coil condenser
Large condensation area of 1.5 or 2.25 m² for high recovery.
- 03
Online feeding
Continuous sample addition for large-volume distillation.
- 04
Integrated vacuum control
Up to 100-step distillation programs.
- 05
Water or oil bath
Up to 180 °C with PID control and low level floating switch.
- 06
Multiple safety protections
Dry-run, overload, over-temperature, overcurrent and leakage protection.
