Reference: EV400 series
EV400 Series Laboratory Rotary Evaporators
Laboratory rotary evaporators from 20 to 300 rpm with a 230 °C stand-alone bath, motorized lift and, on the EV400NVAC, built-in vacuum control, gradient distillation and solvent library.
Key specifications
- Models
- EV400NH, EV400N, EV400NVAC
- Rotation speed
- 20 to 300 rpm
- Display
- EV400NH, EV400N: LCD; EV400NVAC: color touch
- Lift
- EV400NH: manual; EV400N, EV400NVAC: motorized; 160 mm stroke
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
EV400 Series Laboratory Rotary Evaporators
Request a quoteOverview
Product overview

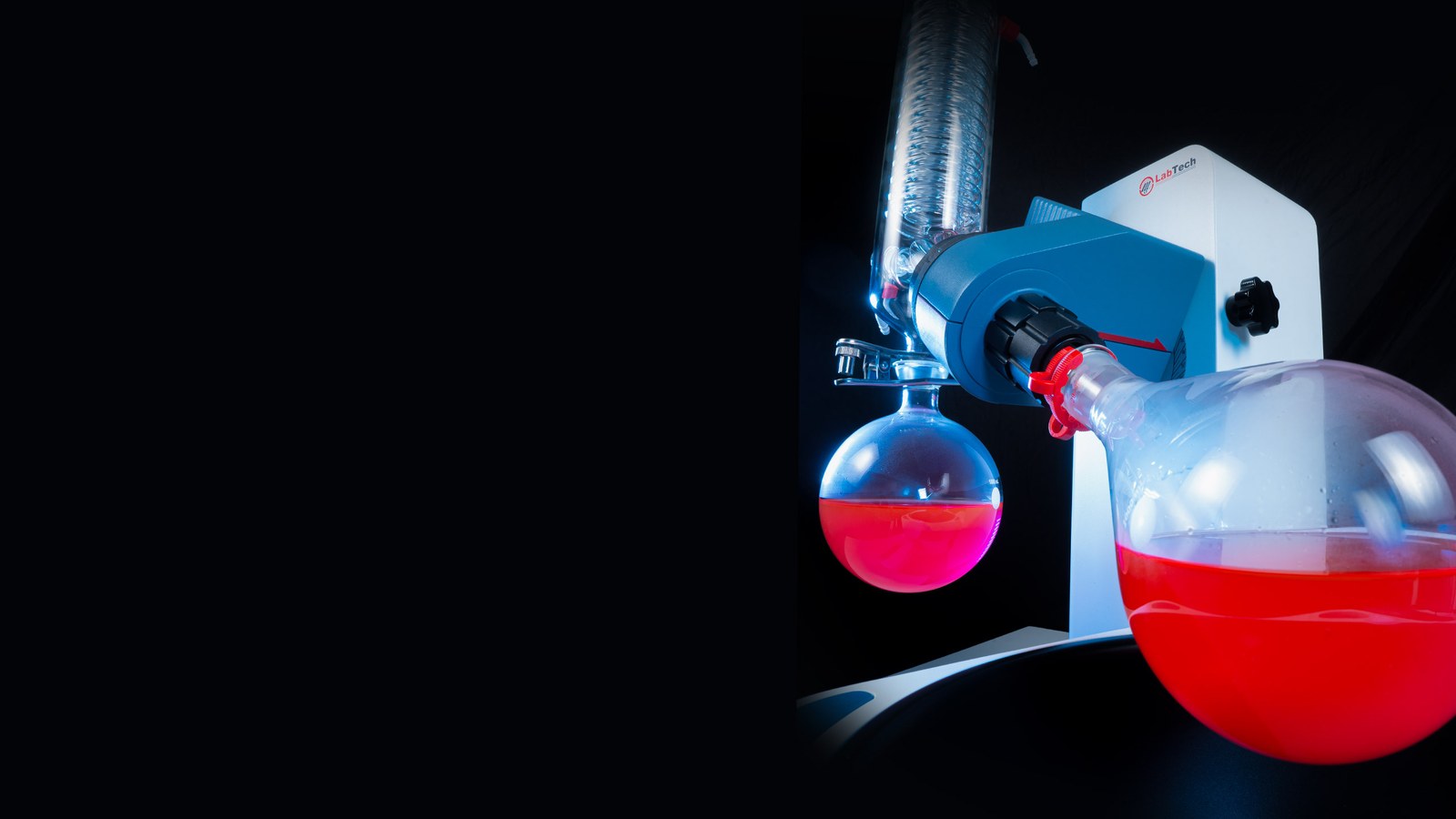

The LabTech EV400 series rotary evaporators perform single-stage distillations quickly and gently for solvent recovery, concentration, crystallization, extraction and drying in research, chemical, pharmaceutical and food laboratories.
Three models are offered. The EV400NH has a manual lift and LCD display, the EV400N adds a motorized lift, and the EV400NVAC adds a color touch screen, built-in vacuum controller, gradient distillation and a pre-loaded solvents library. All share a 20 to 300 rpm drive, 0 to 60° head tilt, vertical or diagonal condensers and online sample addition through a PTFE valve, with automatic lift-up in case of power failure.

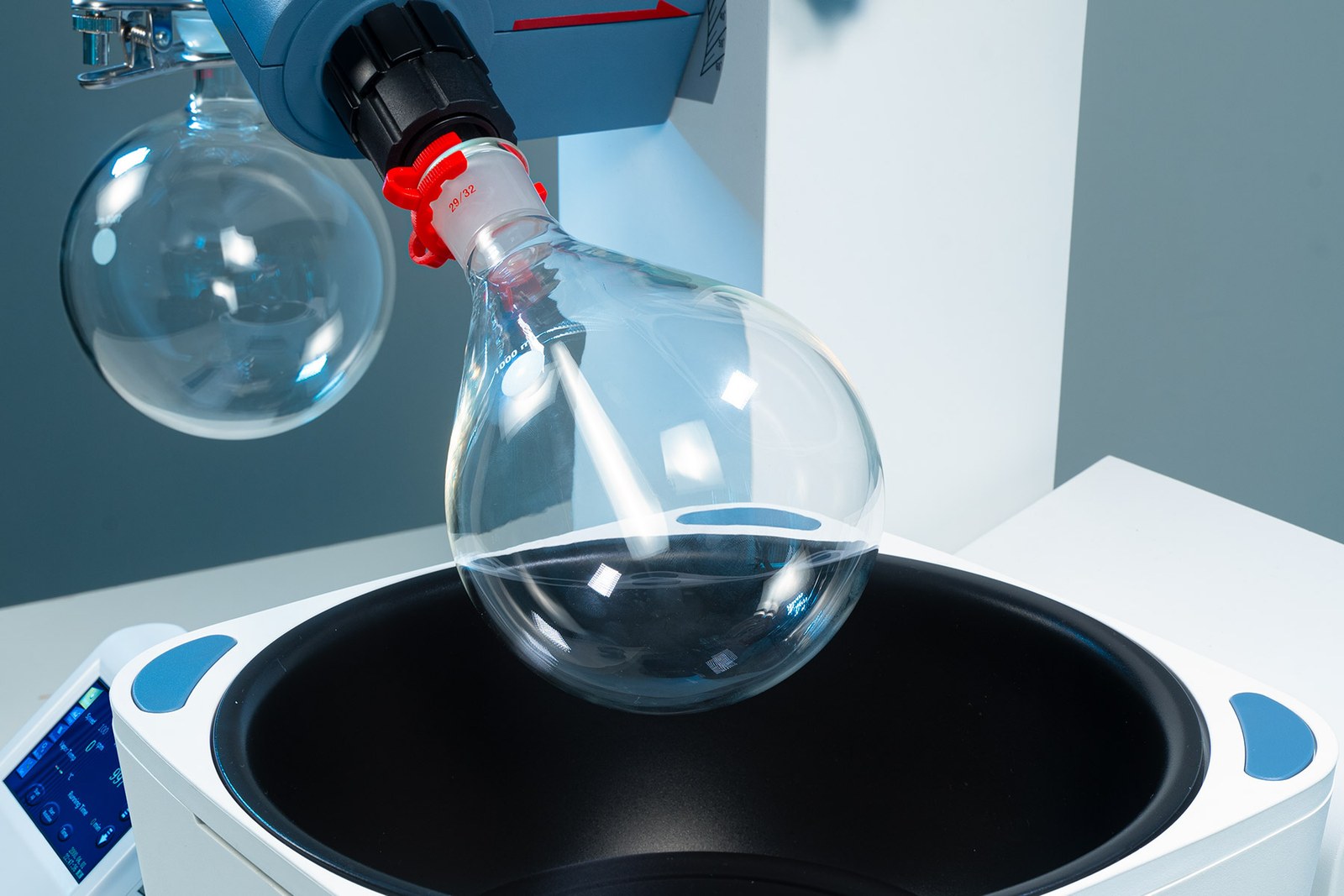

The stand-alone 5 L heating bath is PTFE coated stainless steel, reaches 230 °C and works with water or oil. Plastic-coated glassware is available to contain fragments if glass breaks. LabTech recommends the H50-500 chiller and VP18 PLUS vacuum pump for a complete package.
Specifications
Technical specifications
17 parameters
- Models
- EV400NH, EV400N, EV400NVAC
- Rotation speed
- 20 to 300 rpm
- Display
- EV400NH, EV400N: LCD; EV400NVAC: color touch
- Lift
- EV400NH: manual; EV400N, EV400NVAC: motorized; 160 mm stroke
- Head tilt angle
- 0 to 60°
- Condenser
- Vertical or diagonal; 1200 cm² standard, 1500 cm² optional
- Clockwise/counter rotation
- EV400NH, EV400NVAC
- EV400NVAC functions
- Gradient distillation, built-in vacuum controller, solvents library; vapor temperature and auto distillation optional
- Bath temperature range
- Ambient to 230 °C
- Bath
- Stainless steel with PTFE coating, 5 L, 1300 W, P.I.D.; ±1 °C (water), ±2 °C (oil)
- Dimensions incl. glassware (L x W x H)
- EV400NH, EV400N: 60x44x82; EV400NVAC: 60x44x90 cm
- Gross weight incl. glassware
- EV400NH: 23; EV400N, EV400NVAC: 29 kg
- Power supply
- 230 V, 50/60 Hz (115 V, 60 Hz)
- Ordering codes
- LEV400NH, LEV400N, LEV400NV
- Plastic-coated glassware
- Available on request; transparent coating resists up to 90 °C
- Evaporating flasks
- 50 mL to 3000 mL, joint 29/32
- Matching accessories
- H50-500 chiller, VP18 PLUS vacuum pump, LV6010 vacuum controller
Features
Key features
- 01
Three configurations
Manual lift, motorized lift, or motorized with built-in vacuum control.
- 02
Programmable operations
Gradient distillation and solvents library on the EV400NVAC.
- 03
Stand-alone bath
5 L PTFE coated bath to 230 °C for water or oil.
- 04
Safety
Automatic lift-up on power failure and optional plastic-coated glassware.
- 05
Online sample addition
Add sample through a PTFE valve during operation.
- 06
Complete package
Matching chiller, vacuum pump and vacuum controller available.
