Reference: Extrapid

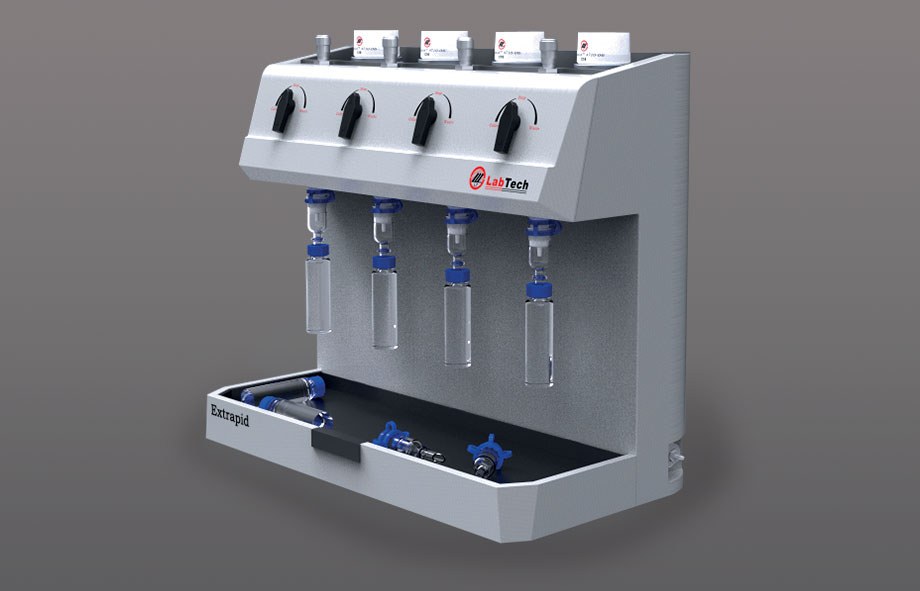

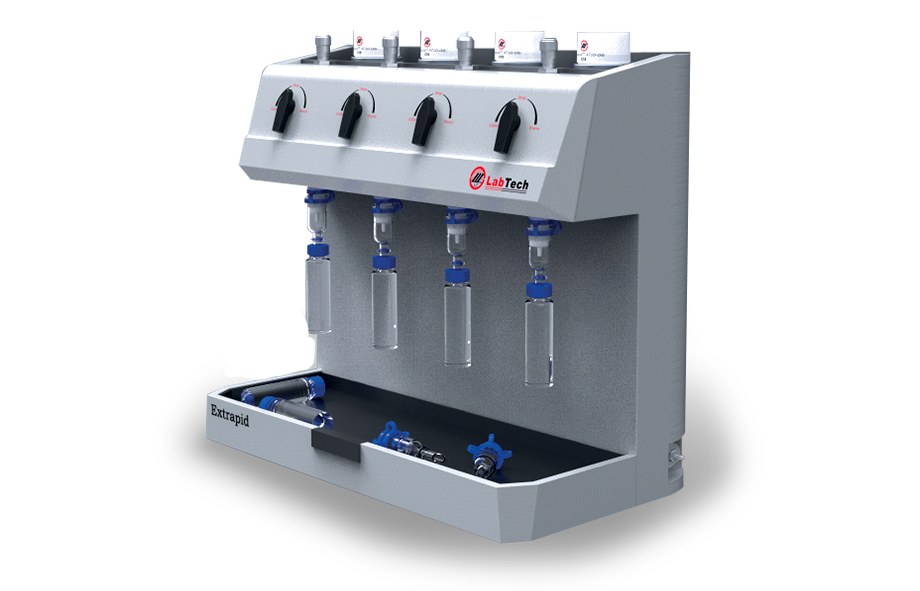

Extrapid Manual SPE Cartridge and Disk Extractor
Manual vacuum SPE workstation for large-volume samples, working with cartridges and 47/90 mm disks, independent channels, 3-way valves and a PFAS-free version.
Key specifications
- Operation
- Manual, vacuum-controlled
- Samples
- Up to 4 individually or simultaneously (web page); up to 6 (2026 brochure)
- Cartridges and disks
- 1, 3, 6 mL cartridges; 47 mm disks; 90 mm disk option
- Sample flow rate
- 1 to 45 mL/min (web page); up to 100 mL/min (2026 brochure)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Extrapid Manual SPE Cartridge and Disk Extractor
Request a quoteOverview
Product overview
The LabTech Extrapid is a manual solid phase extraction workstation designed for large-volume samples and routine SPE in environmental analysis. It offers a cost-effective alternative to automated systems while keeping precise control of each extraction.
Each channel is independent, which prevents cross-contamination. Efficient 3-way valves control sample collection and waste discharge, so there is no need to switch the vacuum pump on and off, wait for venting or drain the vacuum chamber. A flow control valve keeps flow rates accurate and reproducible, and a flow path switching system collects organic and aqueous waste in separate reservoirs.
Extrapid works with 1, 3 and 6 mL cartridges and 47 mm disks, with a 90 mm option. All parts in contact with solvents are PTFE or stainless steel. It is compatible with EPA 533 and 537 protocols and is available in an inert, PFAS-free version.
Specifications
Technical specifications
10 parameters
- Operation
- Manual, vacuum-controlled
- Samples
- Up to 4 individually or simultaneously (web page); up to 6 (2026 brochure)
- Cartridges and disks
- 1, 3, 6 mL cartridges; 47 mm disks; 90 mm disk option
- Sample flow rate
- 1 to 45 mL/min (web page); up to 100 mL/min (2026 brochure)
- Valves
- 3-way valves for sample collection and waste discharge; flow control valve per channel
- Waste handling
- Flow path switching collects organic and aqueous waste separately
- Wetted materials
- PTFE or stainless steel
- Method compatibility
- EPA 533 and 537
- PFAS-free version
- Available
- Typical applications
- Universities, environmental, food and feed, chemistry
Features
Key features
- 01
Cartridge and disk
1, 3, 6 mL cartridges and 47 mm disks, 90 mm optional.
- 02
Independent channels
Precise control of each extraction without cross-contamination.
- 03
3-way valves
Control collection and waste without stopping the vacuum.
- 04
Separate waste streams
Organic and aqueous waste collected in separate reservoirs.
- 05
Corrosion resistant
Solvent-contacting parts in PTFE or stainless steel.
- 06
PFAS-ready
EPA 533 and 537 compatible; PFAS-free version available.
