Reference: H150 Smart series

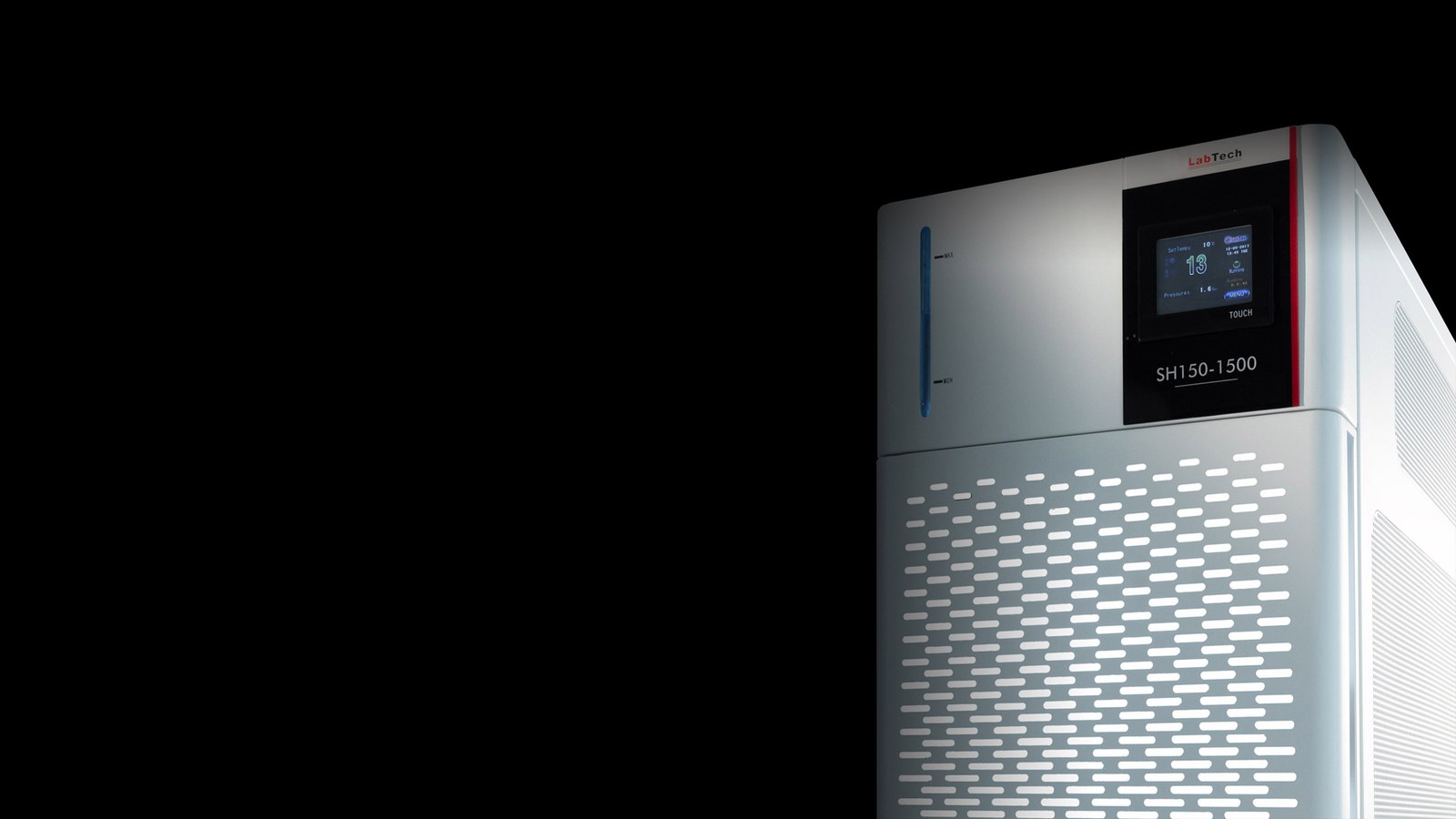

H150 Smart Series Recirculating Water Chillers
Recirculating water chillers from 1000 to 9000 W with hot gas bypass and P.I.D. control to ±0.1 °C, including -20 °C LT models, for ICP, AAS, XRF and electron microscopy.
Key specifications
- Models
- H150-1000, H150-1500, H150-2100, H150-3000, H150-5000, H150-7000, H150-9000, H150-1000LT, H150-2100LT
- Temperature range
- Standard models: +8 to +35 °C; LT models: -20 to +35 °C
- Temperature stability
- 1000 to 3000 W and LT models: ±0.1 °C; 5000 to 9000 W: ±0.2 °C
- Temperature control
- P.I.D. with hot gas bypass
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
H150 Smart Series Recirculating Water Chillers
Request a quoteOverview
Product overview
The LabTech H150 Smart series recirculating water chillers provide accurate, constant cooling for analytical instruments while avoiding the waste of once-through tap water. LabTech reports more than 35,000 of its water chillers installed worldwide.
The series covers cooling capacities from 1000 to 9000 W. Standard models run from +8 to +35 °C, and the H150-1000LT and H150-2100LT extend the range to -20 °C. Hot gas bypass technology returns uncondensed refrigerant through a reservoir coil, avoiding compressor on/off cycling and the energy waste it causes, while P.I.D. control holds the setpoint to ±0.1 °C on most models.
Magnetic pumps deliver 5 or 13 L/min at 60 psi, and a touch color panel displays pressure, temperature and flow. Components pass strict quality control for 24/7 use, the refrigerant is CFC-free, and customized versions are available. For noise-sensitive rooms, the IsoBOX enclosure can house the chiller.
Specifications
Technical specifications
18 parameters
- Models
- H150-1000, H150-1500, H150-2100, H150-3000, H150-5000, H150-7000, H150-9000, H150-1000LT, H150-2100LT
- Temperature range
- Standard models: +8 to +35 °C; LT models: -20 to +35 °C
- Temperature stability
- 1000 to 3000 W and LT models: ±0.1 °C; 5000 to 9000 W: ±0.2 °C
- Temperature control
- P.I.D. with hot gas bypass
- Cooling capacity
- 1000, 1500, 2100, 3000, 5000, 7000 or 9000 W
- Pump flux
- H150-1000, H150-1500, H150-1000LT: 5 L/min at 60 psi; other models: 13 L/min at 60 psi
- Pump
- Magnetic; 120 W or 250 W
- Heat exchanger
- Board
- Dimensions (L x W x H)
- 1000: 56x36x59; 1500: 65x39x63; 2100/3000: 74x46x71; 5000/7000/9000: 69x64x110 cm
- Weight
- 1000: 52; 1500: 68; 2100/3000: 83; 5000: 162; 7000/9000: 164 kg
- Power supply
- 230 V 50/60 Hz up to 3000 W; 5000 W: 230 V 50 Hz; 7000/9000 W: 400 V 50 Hz or 440 V 60 Hz
- Ordering codes
- LW1000N, LW1500N, LW2100N, LW3000N, LW5000N, LW7000N, LW9000N, LW1000NLT, LW2100NLT
- Controls
- Touch color control panel for pressure, temperature and flow; liquid level indicator
- Refrigerant
- CFC-free, eco-friendly
- Customization
- Customized versions available
- Applications
- ICP-OES, ICP-MS, AAS-GF, XRF, XRD, electron microscopy, laser, sputtering, rotary evaporation, distillation, packaging, industry
- Documentation
- Water Chillers brochure and technical specifications
- Accessory
- IsoBOX sound-absorbing enclosure
Features
Key features
- 01
High energy efficiency
Hot gas bypass eliminates the compressor on/off cycle.
- 02
Accurate temperature
P.I.D. control to ±0.1 °C on most models.
- 03
Wide capacity range
From 1000 to 9000 W cooling capacity.
- 04
Low temperature option
LT models reach -20 °C.
- 05
Touch control panel
Color display of pressure, temperature and flow.
- 06
Green lab conditions
CFC-free refrigerant; reduces tap water use.
