Reference: HyperCOOL
HyperCOOL Laboratory Freeze Dryer (Lyophilizer)
Laboratory freeze dryer with -55, -90 or -110 °C condensers, Teflon coated chamber and chamber, manifold or combined configurations for biological, food and solvent samples.
Key specifications
- Models
- HC3055, HC3110, HC9090PLUS
- Ultimate chamber temperature
- HC3055: -55 °C; HC3110: -110 °C; HC9090PLUS: -90 °C
- Cold trap volume
- HC3055/HC3110: 4 L; HC9090PLUS: 12 L
- Cold trap size
- HC3055/HC3110: Ø165 x H202 mm; HC9090PLUS: Ø305 x H355 mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
HyperCOOL Laboratory Freeze Dryer (Lyophilizer)
Request a quoteOverview
Product overview

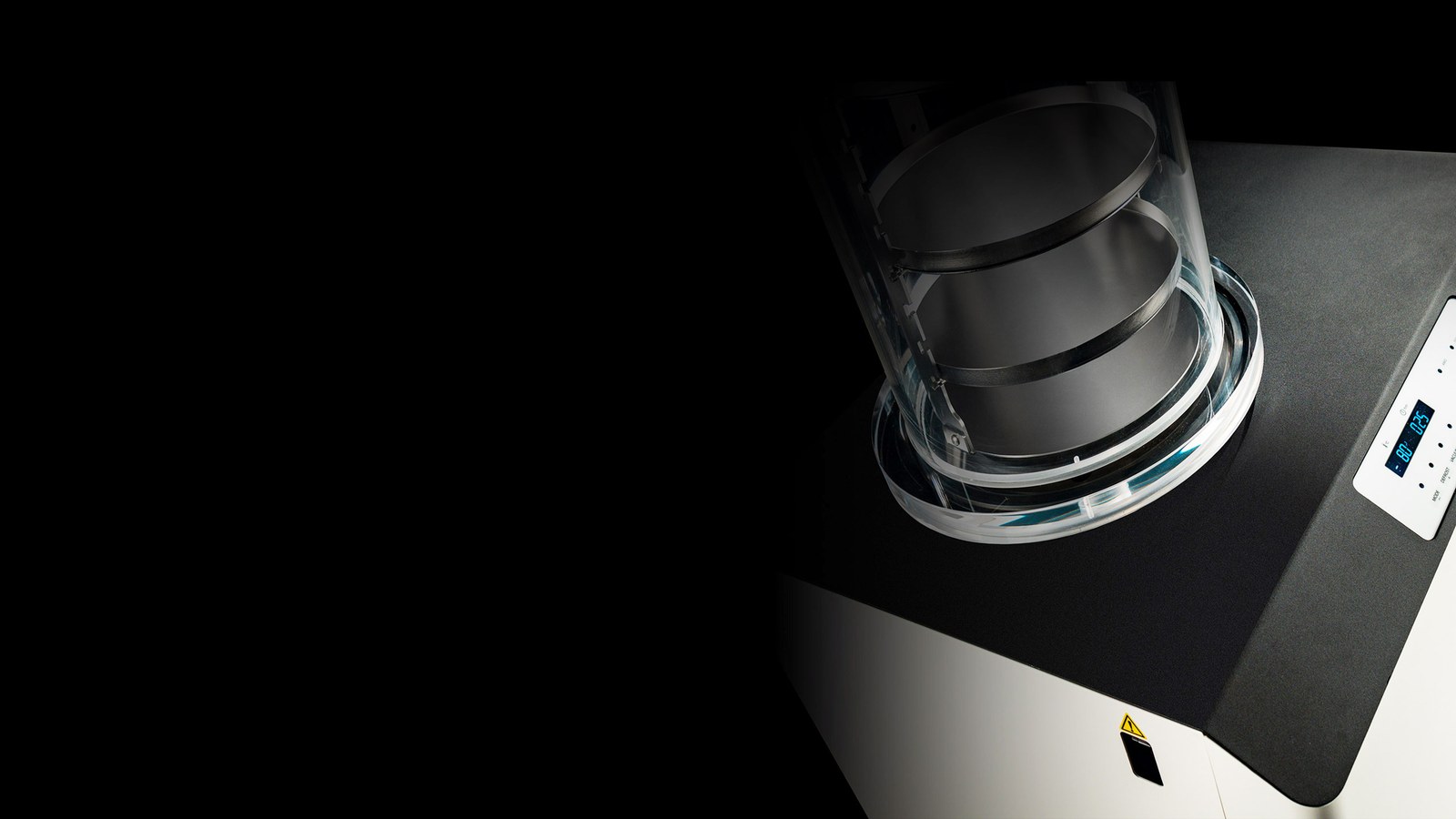

The LabTech HyperCOOL is a laboratory freeze dryer that removes moisture from pre-frozen samples by applying a deep vacuum, so frozen water passes directly to vapor without a liquid phase. This preserves the structure and quality of the dried sample.
Models operate at ultra-low temperatures of -55 °C (HC3055), -90 °C (HC9090PLUS) or -110 °C (HC3110), which makes them suitable for biological materials, aqueous products and solvents with low freezing points. The top plate and chamber are Teflon coated for resistance to aggressive solvents, the cooling coils are hidden so ice can be removed after a quick de-ice cycle, and the front condenser has a magnetic, detachable cover for maintenance. A Pirani gauge monitors the vacuum level.
Three main configurations are offered: a chamber for solids on trays or liquids in vials, a manifold for up to 16 flasks from 120 to 1,200 mL, and a multi configuration combining both. An optional heated shelf controls temperature from -20 to +40 °C. Applications cover biotechnology, pharmaceuticals, food and plant samples, environmental extracts and archaeological materials.
Specifications
Technical specifications
17 parameters
- Models
- HC3055, HC3110, HC9090PLUS
- Ultimate chamber temperature
- HC3055: -55 °C; HC3110: -110 °C; HC9090PLUS: -90 °C
- Cold trap volume
- HC3055/HC3110: 4 L; HC9090PLUS: 12 L
- Cold trap size
- HC3055/HC3110: Ø165 x H202 mm; HC9090PLUS: Ø305 x H355 mm
- Ice condensing capacity
- HC3055/HC3110: 3 kg; HC9090PLUS: 9.8 kg
- Ice condensing performance
- HC3055/HC3110: 2.5 kg/24 h; HC9090PLUS: 9 kg/24 h
- Display
- HC3055/HC3110: 4 inch LCD; HC9090PLUS: 7 inch touch LCD with graphic display
- Control
- ON/OFF vacuum and defrost; HC9090PLUS also temperature
- Power requirement (resting)
- HC3055: 642 VA; HC3110: 819 VA; HC9090PLUS: 1,500 VA
- Dimensions (W x D x H)
- HC3055/HC3110: 400 x 660 x 570 mm; HC9090PLUS: 600 x 708 x 885 mm
- Weight
- HC3055: 58; HC3110: 72; HC9090PLUS: 130 kg
- Pirani gauge
- Installed; integrated Pirani versions HC3055P and HC3110P
- Chamber
- Teflon coated stainless steel chamber and top plate
- Configurations
- Chamber (up to 5 trays x Ø25 cm), manifold (4, 6, 8, 12 or 16 flasks, 120 to 1,200 mL), multi (chamber + 4 or 8 valve manifold), stoppering chamber
- Optional heated shelf
- -20 to +40 °C, ±1 °C
- Functions
- Automatic De-Vac and De-Ice
- Ordering codes
- Hyper-HC3055, Hyper-HC3110, Hyper-HC9090P
Features
Key features
- 01
Ultra-low temperatures
Condenser options of -55, -90 and -110 °C.
- 02
Chemical resistance
Teflon coated stainless steel chamber and top plate.
- 03
Flexible configurations
Chamber, manifold for up to 16 flasks, or both combined.
- 04
Shorter cycles
Hidden cooling coils and automatic De-Vac and De-Ice functions.
- 05
Vacuum monitoring
Pirani gauge for accurate vacuum readings.
- 06
Easy maintenance
Front condenser with magnetic detachable cover.
