Reference: IsoBOX
IsoBOX Sound-Absorbing Enclosure for Water Chillers
Sound-absorbing enclosure that lowers the noise of LabTech water chillers and other small equipment while six rear fans keep chiller cooling performance unaffected.
Key specifications
- Function
- Sound-absorbing enclosure for water chillers and other small noisy equipment
- Ventilation
- Six fans on the back; fans air supply 1100 m³/h
- Fan power
- 140 W
- Internal lining
- Pyramidal polyurethane sound-absorbing panels, self-extinguishing, avoid condensation
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
IsoBOX Sound-Absorbing Enclosure for Water Chillers
Request a quoteOverview
Product overview

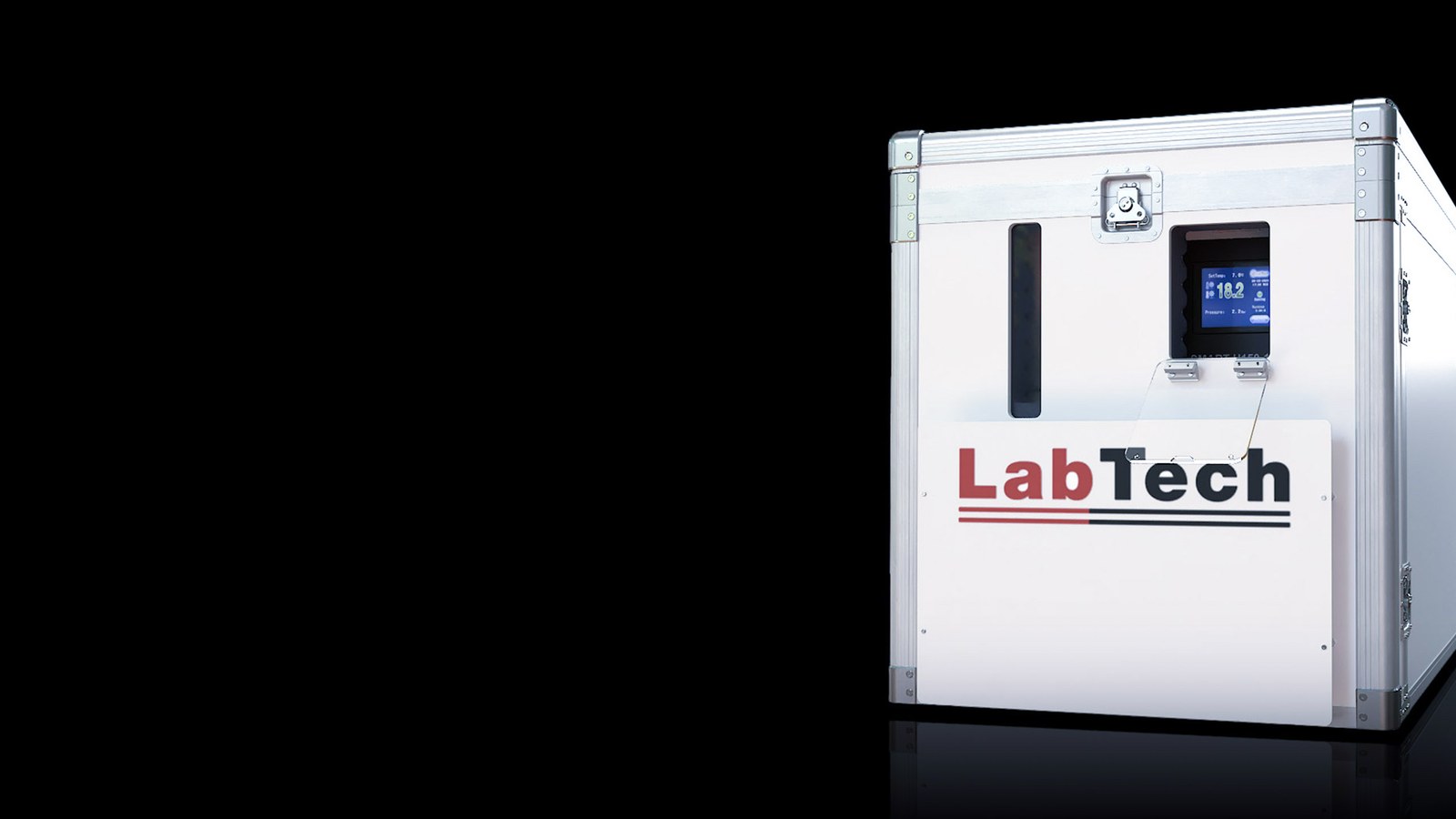

IsoBOX is a LabTech enclosure made from high quality sound-absorbing material to reduce the noise of water chillers or other smaller equipment that generates high noise levels. It addresses the health and comfort issues that high laboratory noise can cause and that laboratory managers are required to manage.

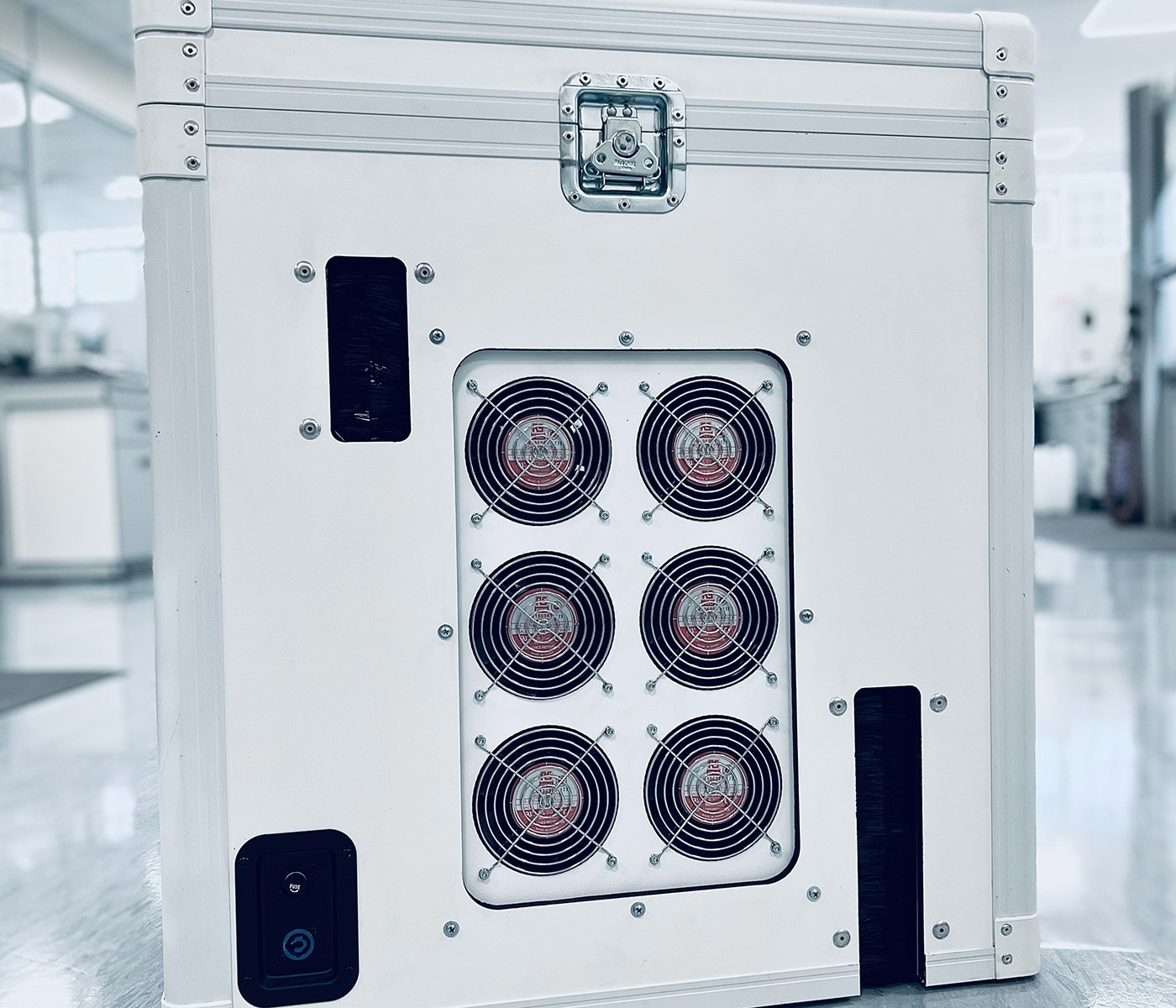

LabTech designed IsoBOX so that chiller cooling performance is not affected: six fans on the back keep the chiller at high efficiency and stable temperature at maximum heat load. The inside is lined with pyramidal polyurethane panels that are self-extinguishing and avoid condensation.
The enclosure assembles quickly, and butterfly latches allow it to be taken apart piece by piece for access to the front, rear or sides of the chiller. The chiller display and liquid level indicator remain easy to reach.
Specifications
Technical specifications
11 parameters
- Function
- Sound-absorbing enclosure for water chillers and other small noisy equipment
- Ventilation
- Six fans on the back; fans air supply 1100 m³/h
- Fan power
- 140 W
- Internal lining
- Pyramidal polyurethane sound-absorbing panels, self-extinguishing, avoid condensation
- Assembly
- Butterfly latches; panels removable for front, rear or side access
- Access
- Chiller display and liquid level indicator remain accessible
- Required room temperature
- No more than 25 °C
- Dimensions (L x W x H)
- 105 x 73 x 83 cm
- Weight
- 50 kg
- Power supply
- 230 V, 50/60 Hz
- Ordering code
- LW-ISOBOX21/30
Features
Key features
- 01
Noise reduction
Pyramidal polyurethane panels absorb chiller noise.
- 02
Cooling unaffected
Six rear fans maintain efficiency and stable temperature at maximum heat load.
- 03
Easy access
Butterfly latches let panels be removed for front, rear or side access.
- 04
Display visible
Chiller display and liquid level indicator remain accessible.
- 05
Safe materials
Self-extinguishing lining that avoids condensation.
