LAC Series Oil-Free Laboratory Air Compressors
Oil-free laboratory air compressors from 35 to 220 L/min with integrated storage tank, humidity removal and automatic water drain, for AAS, ICP-OES and gas generators.
View product
Reference: LN series
LN Series Nitrogen Gas Generators
Laboratory nitrogen generators up to 99.9999% purity and up to 70 L/min, in stackable LN, low-THC LNGC and LNC versions with built-in air compressor, for GC, LC-MS and ICP.
Key specifications
- Versions
- LN series (external air), LNGC series (with catalyst for low THC), LNC series (built-in air compressor)
- Models
- LN500, LN1000, LN4000, LNGC500, LNGC1000, LN15NC, LN30NC, LN70SNC
- Flow rate (up to)
- LN500: 0.5; LN1000: 1; LN4000: 4; LNGC500: 0.5; LNGC1000: 1; LN15NC: 15; LN30NC: 30; LN70SNC: 70 L/min
- Purity (up to)
- LN500, LNGC500: 99.9999%; LN1000, LNGC1000: > 99.9995%; LN4000: 99.9%; LN15NC, LN30NC: 99.5%; LN70SNC: 99.9%
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
LN Series Nitrogen Gas Generators
Request a quoteOverview
Product overview

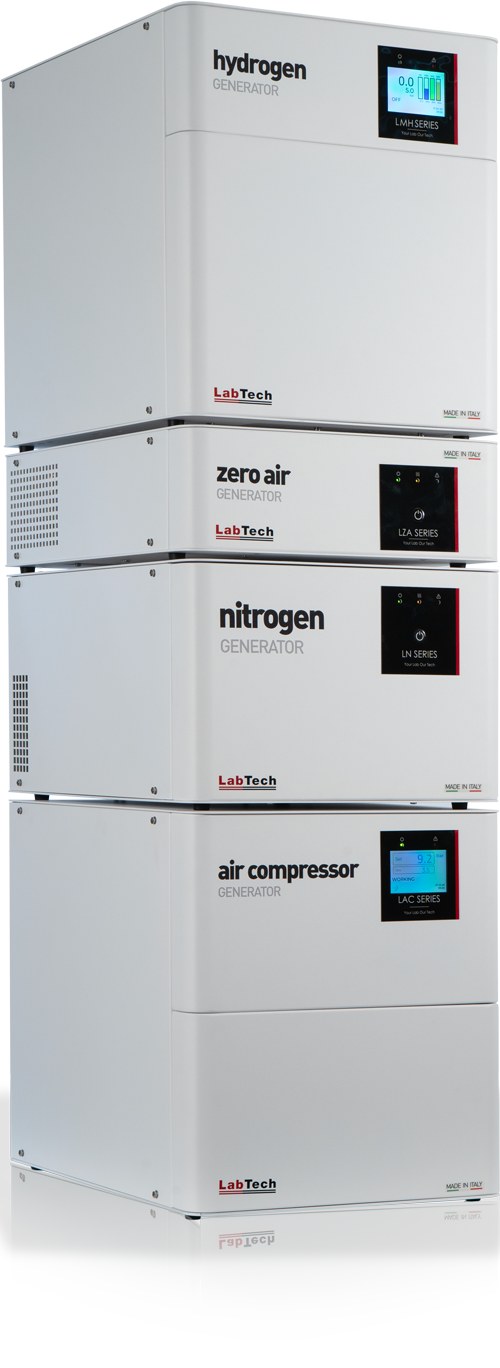

The LabTech LN series nitrogen generators supply nitrogen on demand for analytical and industrial applications that need high purity and rapid flow changes. LabTech positions them as an alternative to high-pressure cylinders, removing cylinder logistics and the risk of running out of gas.
The range covers flows from 0.5 to 70 L/min in three versions: the stackable LN series fed by external compressed air, the LNGC series with a catalyst for low total hydrocarbon content (below 0.1 ppm), and the LNC series with a built-in low noise air compressor. Purity reaches 99.9999% on the low-flow models.
A touch screen control system shows process and flow alarms, trend graphs and an automated start/stop and auto-run function. Typical applications are GC, ICP, LC-MS and LC-MS/MS including Orbitrap and ToF systems, ELSD detectors and sample concentrators.
Specifications
Technical specifications
15 parameters
- Versions
- LN series (external air), LNGC series (with catalyst for low THC), LNC series (built-in air compressor)
- Models
- LN500, LN1000, LN4000, LNGC500, LNGC1000, LN15NC, LN30NC, LN70SNC
- Flow rate (up to)
- LN500: 0.5; LN1000: 1; LN4000: 4; LNGC500: 0.5; LNGC1000: 1; LN15NC: 15; LN30NC: 30; LN70SNC: 70 L/min
- Purity (up to)
- LN500, LNGC500: 99.9999%; LN1000, LNGC1000: > 99.9995%; LN4000: 99.9%; LN15NC, LN30NC: 99.5%; LN70SNC: 99.9%
- Outlet pressure (up to)
- 7 to 8 bar depending on model
- Total hydrocarbon content
- LNGC series: < 0.1 ppm
- Power supply
- LN/LNGC: 100-240 Vac ±10%, 50/60 Hz; LNC: 220-240 Vac ±10%, 50/60 Hz
- Rated output
- LN/LNGC: 0.35 kW; LN15NC: 0.8 kW; LN30NC: 1.6 kW; LN70SNC: 2.2 kW
- Air supply
- LN/LNGC: external, 6.5 to 10 bar, < 30 °C, ISO 8573-1:2010 Class [1:3:1]; LNC: built-in compressor (piston or scroll)
- Noise emission
- From < 35 dBA (LN/LNGC) to < 58 dBA (LNC models)
- Dimensions (W x D x H)
- LN/LNGC: 40.5 x 59 x 28 cm; LNC: 43.5 x 60 x 73 cm or 59 x 92 x 73 cm
- Weight
- From 39 kg (LN/LNGC) to 175 kg (largest LNC)
- Operating environment
- 5 to 40 °C (LN/LNGC), 5 to 35 °C (LNC); below 2000 m
- Controls
- Touch screen, auto-run, process and flow alarms, automatic start/stop, trend graphs
- Stackable
- LN series
Features
Key features
- 01
High purity
Nitrogen purity up to 99.9999%.
- 02
Wide flow range
From 0.5 to 70 L/min across the range.
- 03
Built-in compressor option
LNC models include a low noise air compressor.
- 04
Low THC option
LNGC series catalyst for hydrocarbon-sensitive work.
- 05
Touch screen control
Alarms, trend graphs, auto-run and automatic start/stop.
- 06
Stackable
LN units stack with other LabTech gas generators.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
