Reference: MultiVap 6

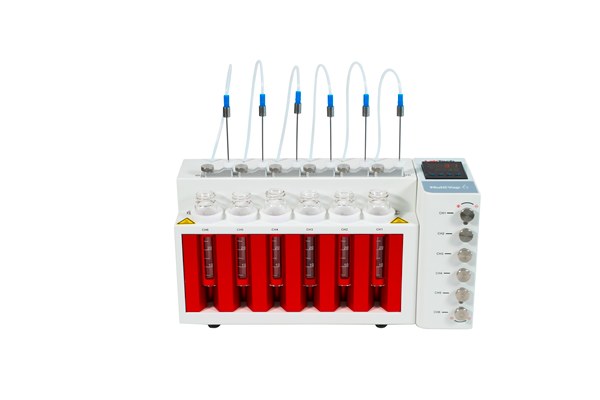

MultiVap 6 Six-Channel Nitrogen Evaporator Concentrator
Basic six-channel nitrogen evaporator with independent flow control per channel and an aluminum dry block heater up to 120 °C, concentrating directly in the vial.
Key specifications
- Channels
- 6 independent channels, samples up to 40 mL
- Nitrogen flow
- Dedicated regulator per channel
- Needles
- Height adjustable per channel
- Heating
- Aluminum alloy dry block
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MultiVap 6 Six-Channel Nitrogen Evaporator Concentrator
Request a quoteOverview
Product overview
The LabTech MultiVap 6 is a basic, cost-effective sample preparation instrument with six independent channels. Samples of up to 40 mL are concentrated directly in the vial, without transfer, which reduces transfer losses, improves recovery and saves time.
Nitrogen flow is adjusted separately for each channel, and each needle can be moved up or down to the most efficient position. Nitrogen blowdown is combined with heating from an aluminum alloy dry block, from ambient to 120 °C with P.I.D. control, chosen to avoid water vapor interference and give uniform sample temperature.
An open view of the vials allows the volume level to be checked during evaporation. Interchangeable aluminum blocks accept a range of tube diameters.
Specifications
Technical specifications
14 parameters
- Channels
- 6 independent channels, samples up to 40 mL
- Nitrogen flow
- Dedicated regulator per channel
- Needles
- Height adjustable per channel
- Heating
- Aluminum alloy dry block
- Temperature range
- Ambient to 120 °C
- Temperature control
- P.I.D. with digital display
- Compatibility
- Collection vials of Sepaths UP
- Dimensions (L x W x H)
- 13 x 35 x 20 cm
- Gross weight
- 8 kg
- Power supply
- 230 V, 50/60 Hz
- Included
- 6 x 40 mL collection bottles, power cord, connector, PU tubing, 6 nitrogen needles, flange tool
- Optional blocks
- Aluminum blocks for 2 mL (12 mm OD), 16 x 100 mm, 15, 18 and 22 mm OD tubes
- Ordering code
- U-SP9005-C01
- Documentation
- LabTech Advanced Concentration Solutions brochure
Features
Key features
- 01
Six independent channels
Run samples together or separately.
- 02
Per-channel flow control
Dedicated nitrogen flow regulator for each channel.
- 03
Adjustable needles
Needle height set for the most efficient evaporation.
- 04
Dry block heating
Aluminum block from ambient to 120 °C with P.I.D. control.
- 05
In-vial concentration
No sample transfer, reducing losses and improving recovery.
