Reference: MultiVap 64

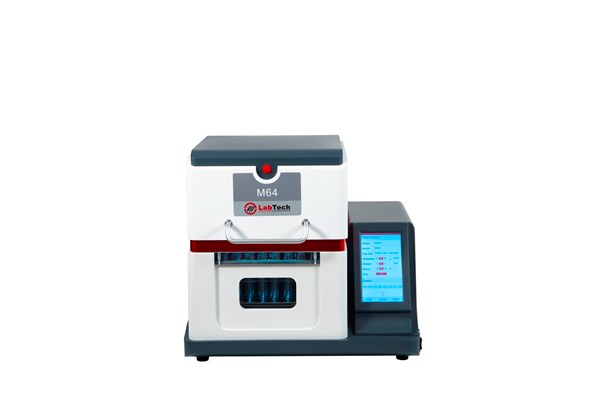

MultiVap 64 Automated Nitrogen Evaporator Concentrator
Automated 64-position nitrogen evaporator with eight channels, automatic needle height adjustment, heated liquid bath to 100 °C and a visible concentration chamber.
Key specifications
- Channels
- 8 channels of 8 needles each (64 samples of 10 mL), individually or simultaneously
- Needle adjustment
- Automatic, following sample volume reduction
- Temperature control
- P.I.D.
- Temperature range
- Ambient to 100 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MultiVap 64 Automated Nitrogen Evaporator Concentrator
Request a quoteOverview
Product overview
The LabTech MultiVap 64 is a multi-channel parallel nitrogen evaporator with eight channels of eight needles each, concentrating up to 64 samples of 10 mL. Channels can run individually or together.
Nitrogen needles adjust automatically as the sample volume drops, which LabTech links to precision, repeatability and lower gas use. The samples sit in a P.I.D. controlled liquid bath from ambient to 100 °C, and the process can be watched through a lit front window while the cover stays locked during operation.
The unit is run from a 7 inch color touch screen and includes a low liquid level alarm. Racks for 2, 10 and 15 mL vials (64 positions) and 40 or 50 mL vials (48 positions) are available, along with custom racks.
Specifications
Technical specifications
16 parameters
- Channels
- 8 channels of 8 needles each (64 samples of 10 mL), individually or simultaneously
- Needle adjustment
- Automatic, following sample volume reduction
- Temperature control
- P.I.D.
- Temperature range
- Ambient to 100 °C
- Heating mode
- Liquid bath
- Nitrogen requirement
- 2 to 6.8 bar (30 to 100 psi)
- Display
- 7 inch color touch screen
- Safety
- Auto-locked cover during operation; low liquid level alarm
- Visibility
- Front window with internal lights
- Dimensions (L x W x H)
- 50 x 50 x 69 (open); 50 x 50 x 45 (closed) cm
- Weight
- 30 kg
- Power supply
- 230 V, 50/60 Hz
- Included
- 64 + 10 needles, 64-position rack for 10 mL vials, 100 glass and 100 PP 10 mL vials, exhaust tube, drain tube
- Optional racks
- 2 mL GC vials (64), 10 mL (64), 15 mL (64), 40 mL (48), 50 mL (48), custom
- Ordering code
- US-MP6000
- Documentation
- LabTech Advanced Concentration Solutions brochure
Features
Key features
- 01
64 samples
Eight channels of eight needles, run individually or together.
- 02
Automatic needle adjustment
Needles follow the sample volume reduction for repeatable results and gas saving.
- 03
Visible process
Front window and internal lights show the concentration in progress.
- 04
Heated liquid bath
P.I.D. control from ambient to 100 °C.
- 05
Safety
Auto-locked cover and low liquid level alarm.
- 06
Flexible racks
Racks for 2 mL GC vials up to 50 mL vials, plus custom options.
