Reference: MultiVap 96

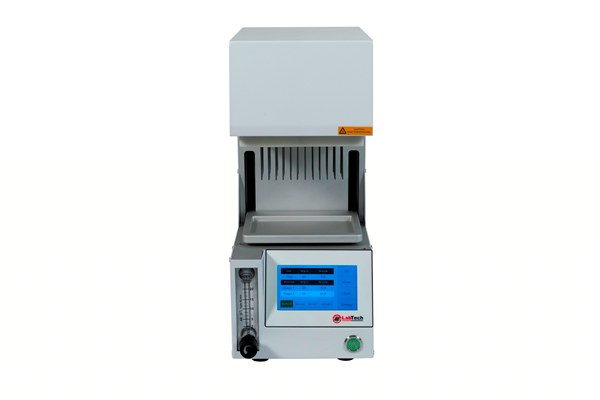

MultiVap 96 Nitrogen Evaporator Concentrator for Microplates
Nitrogen blowdown concentrator for 96-well microplates with direct nitrogen heating, touch screen control and automatic plate lift, for high-throughput sample preparation.
Key specifications
- Positions
- 96 (microplate)
- Heating
- Direct nitrogen heating
- Temperature range
- Ambient to 80 °C
- Temperature control accuracy
- ±3 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MultiVap 96 Nitrogen Evaporator Concentrator for Microplates
Request a quoteOverview
Product overview
The LabTech MultiVap 96 is a nitrogen evaporator designed for microplates. It concentrates samples with high throughput, for example in sample preparation for drug screening, hormone analysis, liquid chromatography and mass spectrometry.
Instead of heating from a dry block underneath, the MultiVap 96 uses direct nitrogen heating, which LabTech states improves heating uniformity and brings samples to evaporation faster. Nitrogen purge pressure and flow rate (0 to 20 L/min) can be set to suit the samples, and the temperature range is ambient to 80 °C.
Temperature, time and flow are set on an LCD touch screen, four methods can be stored, the plate holder height is adjustable and the plate lifts up and down automatically. The nitrogen needles are removable for cleaning.
Specifications
Technical specifications
15 parameters
- Positions
- 96 (microplate)
- Heating
- Direct nitrogen heating
- Temperature range
- Ambient to 80 °C
- Temperature control accuracy
- ±3 °C
- Gas flow rate
- 0 to 20 L/min
- Timer range
- 1 to 9999 min
- Stored methods
- 4
- Plate holder
- Adjustable height, automatic lift up/down
- Display
- LCD touch screen
- Dimensions (L x W x H)
- 16.9 x 33.8 x 37.1 cm
- Weight
- 11 kg
- Power supply
- 230 V, 50/60 Hz
- Included
- Gas line adapter, 3 m tube, pressure regulator, power cord, 4 spare gas needles
- Ordering code
- US-MP9000
- Documentation
- LabTech Advanced Concentration Solutions brochure
Features
Key features
- 01
96 positions
Concentrates a full microplate in one run.
- 02
Direct nitrogen heating
Heated nitrogen improves heating uniformity compared with bottom block heating.
- 03
Adjustable gas flow
Purge pressure and flow rate from 0 to 20 L/min set per application.
- 04
Automatic plate lift
Auto lift up/down with adjustable plate holder height.
- 05
Method storage
Four methods can be saved and loaded on the touch screen.
- 06
Removable needles
Nitrogen needles detach for easy cleaning.
