Reference: MVP-48
MVP-48 High-Throughput Parallel Vacuum Concentrator
Automatic 48-position parallel vacuum concentrator for 60 mL bottles or 50 mL centrifuge tubes, using heating, vacuum and vortex agitation with independently sealed channels.
Key specifications
- Sample positions
- 48, independently sealed and controlled
- Sample volume
- 60 mL sample bottles or 50 mL centrifuge tubes, with elastic sealing lids
- Evaporation method
- Heating, vacuum and vortex agitation
- Lid
- Safety-lock design for one-handed operation
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MVP-48 High-Throughput Parallel Vacuum Concentrator
Request a quoteOverview
Product overview

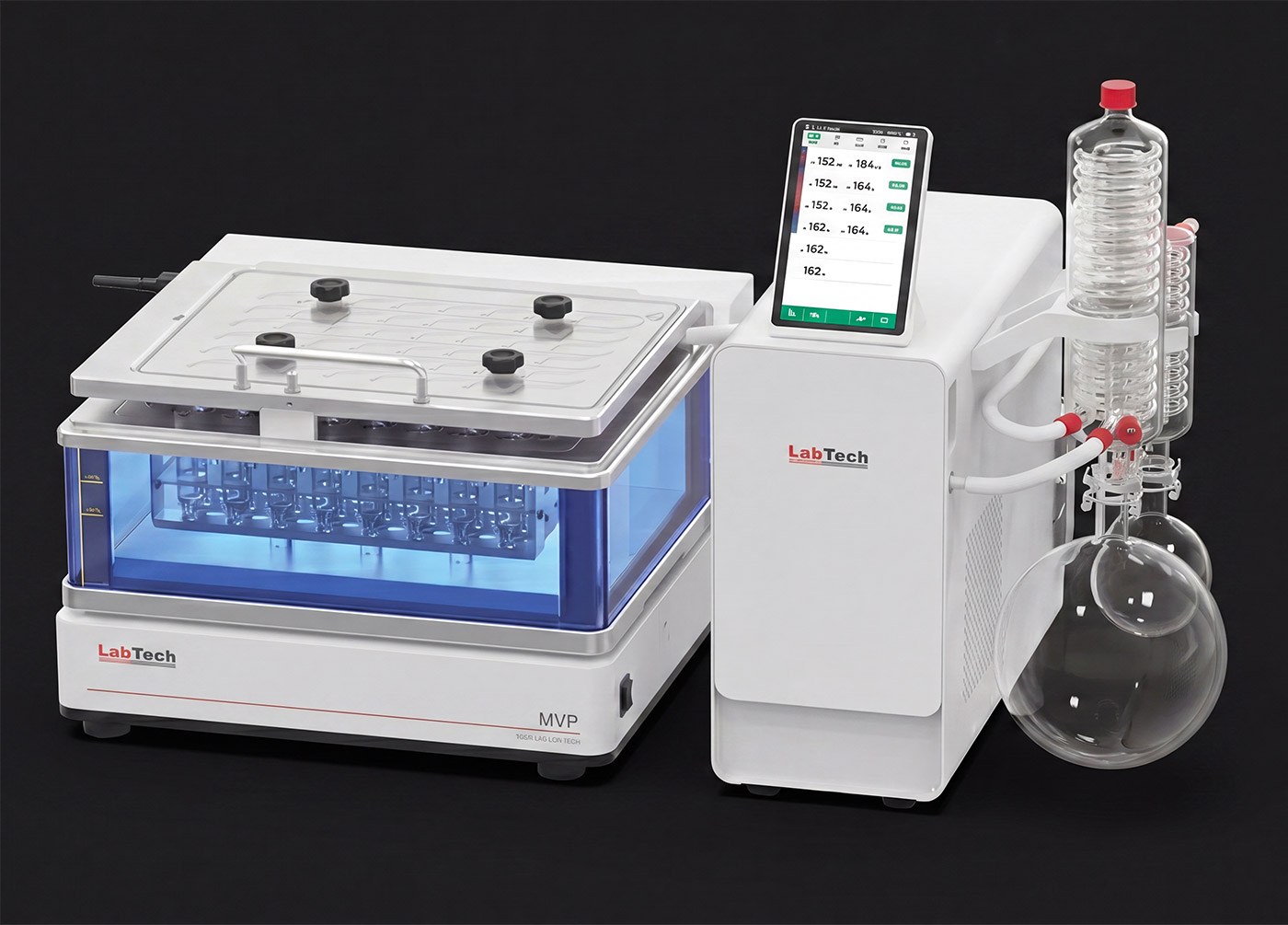

The LabTech MVP-48 is an automatic parallel vacuum concentrator for rapid evaporation and volume reduction of many samples using heating, vacuum and vortex agitation. Its 48 independent positions allow up to 48 samples to be concentrated at once.
The instrument accepts either 60 mL sample bottles or 50 mL centrifuge tubes with elastic sealing lids, giving flexibility in how samples arrive from upstream preparation. Each channel is independently sealed and controlled, which eliminates accidental cross-contamination between samples.
A safety-lock lid allows easy, one-handed operation. The MVP-48 is widely used in food, environmental and agricultural product testing, and LabTech offers it with its water chillers as an all-in-one evaporation package for solvent recovery and throughput.
Specifications
Technical specifications
15 parameters
- Sample positions
- 48, independently sealed and controlled
- Sample volume
- 60 mL sample bottles or 50 mL centrifuge tubes, with elastic sealing lids
- Evaporation method
- Heating, vacuum and vortex agitation
- Lid
- Safety-lock design for one-handed operation
- Shaking bath
- Yes, 0 to 300 rpm
- Temperature range
- Room temperature to 70 °C
- Controller
- Integrated Android controller with touch screen
- Power consumption
- 1.8 kW
- Power supply
- 230 V, 50/60 Hz
- Dimensions (W x D x H)
- 78 x 47 x 55 cm
- Weight
- 62 kg
- Integrated module
- Vacuum pump, condenser, waste bottle and controller in one unit
- Ordering code
- LT-MVP-48
- Applications
- Food (pesticide residues, additives), pharma (API, residues), environment (SVOC, PAHs), chemical QC
- Typical sectors
- Food, environmental and agricultural product testing
Features
Key features
- 01
48 positions
Up to 48 samples concentrated simultaneously.
- 02
Flexible vessels
60 mL sample bottles or 50 mL centrifuge tubes.
- 03
No cross-contamination
Each channel independently sealed and controlled.
- 04
Vortex agitation
Heating, vacuum and vortex for rapid evaporation.
- 05
One-handed lid
Safety-lock design for easy operation.
