Reference: RH series

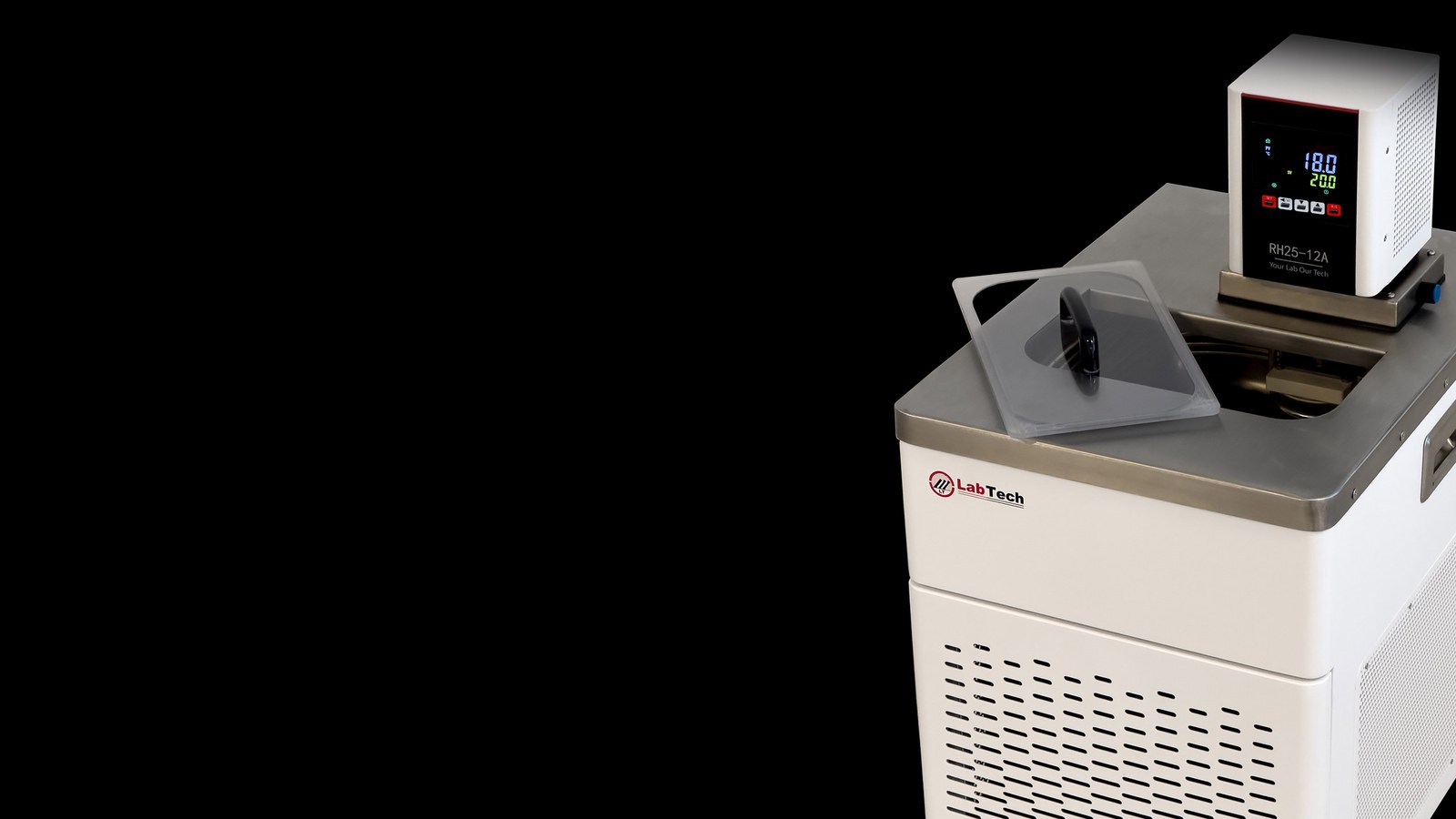

RH Series Refrigerated Thermostatic Circulating Baths
Heating and cooling circulating baths from -40 to +100 °C with 6 to 25 L stainless steel baths, internal and external circulation and P.I.D. control to ±0.05 °C.
Key specifications
- Models
- RH25-6A, RH25-12A, RH25-25A, RH40-12A, RH40-25A
- Temperature range
- RH25 models: -25 to +100 °C; RH40 models: -40 to +100 °C
- Temperature stability
- RH25-6A: ±0.05 °C; other models: ±0.2 °C
- Display resolution
- 0.1 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
RH Series Refrigerated Thermostatic Circulating Baths
Request a quoteOverview
Product overview
LabTech thermostatic baths are circulating baths for applications where consistent temperature and uniformity are important. They combine heating and cooling in one instrument and provide both internal circulation and external circulation to connected equipment.
Five RH models cover -25 to +100 °C or -40 to +100 °C with bath capacities of 6, 12 or 25 litres. P.I.D. control gives stability of ±0.05 °C on the RH25-6A and ±0.2 °C on the other models, with 2000 W heating and pumps of 6 or 18 L/min.
The bath and cover are stainless steel, the drain port is easy to reach, and the units include high and low temperature protection, low liquid level protection and safety class III/FL to DIN 12876. Applications include rotary evaporation, calorimetry, electrophoresis, fermentation, photometry, polarimetry, rheometry and viscosimetry.
Specifications
Technical specifications
18 parameters
- Models
- RH25-6A, RH25-12A, RH25-25A, RH40-12A, RH40-25A
- Temperature range
- RH25 models: -25 to +100 °C; RH40 models: -40 to +100 °C
- Temperature stability
- RH25-6A: ±0.05 °C; other models: ±0.2 °C
- Display resolution
- 0.1 °C
- Temperature control
- P.I.D. (LCD)
- Heating power
- 2000 W
- Cooling capacity at 20 °C
- RH25-6A: 200; RH25-12A: 650; RH25-25A: 1000; RH40-12A: 550; RH40-25A: 800 W
- Cooling capacity at -20 °C
- RH25-6A: 30; RH25-12A: 100; RH25-25A: 50; RH40-12A: 200; RH40-25A: 250 W
- Pump flow
- 6 L/min (6A, 12A models); 18 L/min (25A models)
- Maximum pressure
- 0.4 bar (6A, 12A models); 1.4 bar (25A models)
- Bath capacity
- 6, 12 or 25 L
- Overall dimensions (L x W x H)
- RH25-6A: 24x44x63; 12A models: 40x55x73; 25A models: 37x56x86 cm
- Weight
- RH25-6A: 28; 12A models: 57; 25A models: 61 kg
- Operating conditions
- 5 to 35 °C
- Power supply
- 230 V, 50 Hz
- Safety
- High and low temperature protection, low liquid level protection; safety class III/FL (DIN 12876)
- Construction
- Stainless steel bath and cover; accessible drain port
- Ordering codes
- LRH2506, LRH2512, LRH2525, LRH4012, LRH4025
Features
Key features
- 01
Internal and external circulation
Temperature control inside the bath or for connected instruments.
- 02
Cooling and heating
Two functions in the same instrument, down to -40 °C.
- 03
Precise control
P.I.D. with stability to ±0.05 °C.
- 04
Safety protection
High/low temperature and low liquid level protection, class III/FL.
- 05
Quick heat-up and cool-down
2000 W heater and refrigeration for short changeover times.
- 06
Tube racks
Standard and specially designed racks available.
