Reference: SPE2000

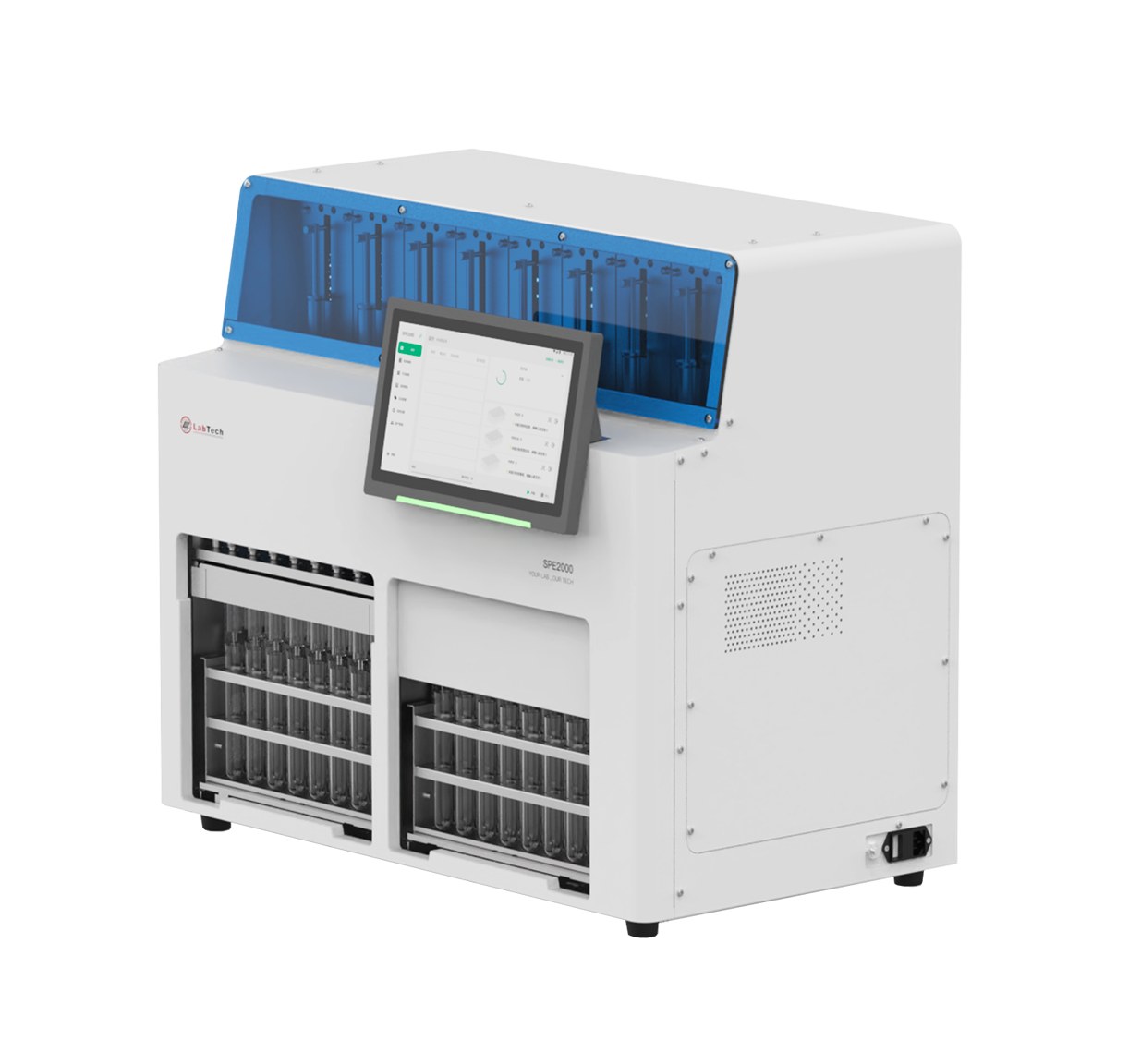

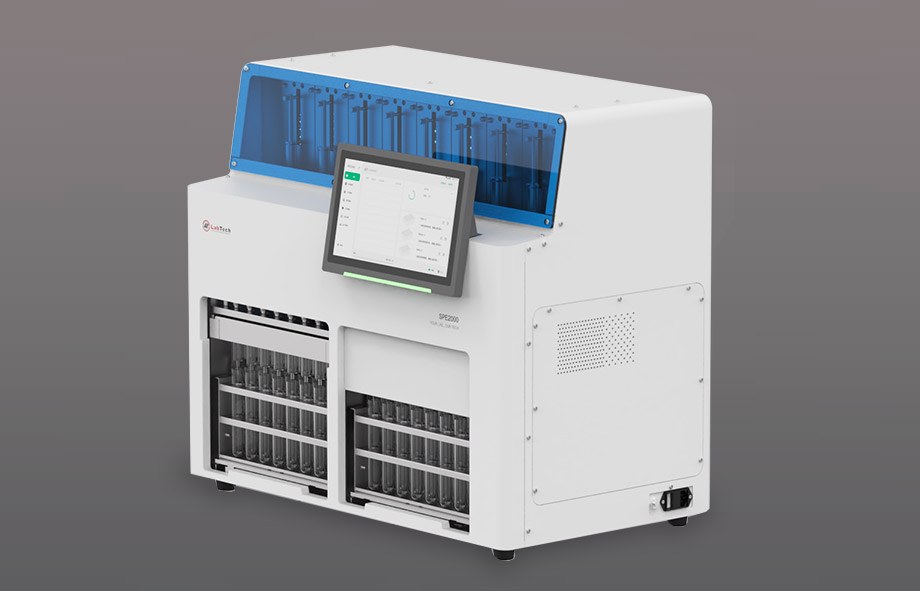

SPE2000 Fully Automated Multi-Channel SPE System
Fully automated 6 or 8 channel solid phase extraction system for up to 80 samples, with 8 solvents, online filtration, automatic rack recognition and real-time monitoring.
Key specifications
- Channels
- 6 or 8
- Sample capacity
- Up to 60 samples (6-channel) or 80 samples (8-channel)
- Cartridges
- 1, 3 and 6 mL
- Sample volume
- 1 mL to 4 L
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SPE2000 Fully Automated Multi-Channel SPE System
Request a quoteOverview
Product overview
The LabTech SPE2000 is a fully automated, multi-channel solid phase extraction system that streamlines sample preparation for environmental, food, chemical and pharmaceutical analysis. By automating the whole SPE workflow it improves consistency, efficiency and reproducibility.
Six and eight channel models process up to 60 or 80 samples per batch, in parallel or sequentially. The system handles sample volumes from 1 mL to 4 L with 1, 3 and 6 mL cartridges, uses up to 8 solvents, and includes automatic online filtration for samples containing particles and a four-way waste discharge system. Pressure-responsive syringe pumps increase thrust as needed to resist clogging.
Racks are identified automatically to reduce handling errors. An 11.6 inch touch screen gives access to step-by-step method programming, and the software monitors solvent volume, gas pressure and system status in real time, checks sample and tube settings and calculates method and batch durations with live run-time updates.
Specifications
Technical specifications
18 parameters
- Channels
- 6 or 8
- Sample capacity
- Up to 60 samples (6-channel) or 80 samples (8-channel)
- Cartridges
- 1, 3 and 6 mL
- Sample volume
- 1 mL to 4 L
- Collection volume
- 1 to 60 mL (15 mL tubes, 20 mL glass tubes, 40 mL concentration cups, 50 mL tubes, 60 mL glass tubes)
- Sample loading flow rate
- 0.1 to 100 mL/min
- Solvent ports
- 8
- Nitrogen input pressure
- 0.1 to 0.5 MPa
- Filtration
- Automatic online filtration
- Waste
- Four-way waste discharge
- Rack recognition
- Automatic
- Display
- 11.6 inch Android touch screen
- Anti-clogging
- Pressure-responsive syringe pumps
- Dimensions (W x H x D)
- 6-channel: 642 x 658 x 472 mm; 8-channel: 774 x 658 x 472 mm
- Weight
- 6-channel: 58 kg; 8-channel: 68 kg
- Power
- AC 220 V ±22 V, 50/60 Hz; 180 VA max.
- Operating environment
- Indoor, 15 to 30 °C, ≤ 80% RH, below 2000 m
- Accessories
- Racks for 1, 3, 6 and 3-6 mL cartridges, immunoaffinity cartridges, large-volume sample rack with spray assembly
Features
Key features
- 01
High capacity
Up to 60 (6-channel) or 80 (8-channel) samples per batch.
- 02
Automatic rack recognition
Reduces errors from manual setup.
- 03
Multi-solvent
Up to 8 solvents used simultaneously.
- 04
Online filtration
Handles particle-containing samples automatically.
- 05
Intelligent monitoring
Real-time solvent volume, gas pressure and status tracking.
- 06
Anti-clogging
Pressure-responsive syringe pumps increase thrust when needed.
