Reference: VP series
VP Series Oil-Free Laboratory Vacuum Pumps
Compact oil-free membrane vacuum pumps from 18 to 50 L/min with anticorrosive coating and low noise, for rotary evaporation, filtration, degassing and drying.
Key specifications
- Models in brochure
- VP30, VP18 PLUS, VP50 PLUS, VP20 PLUS
- Pumping speed
- VP30: 30; VP18 PLUS: 18; VP50 PLUS: 50; VP20 PLUS: 20 L/min
- Vacuum pressure
- VP30: 250 mbar; VP18 PLUS: 20 mbar; VP50 PLUS: 150 mbar; VP20 PLUS: 5 mbar
- Power
- VP30: 80; VP18 PLUS: 140; VP50 PLUS: 100; VP20 PLUS: 280 W
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

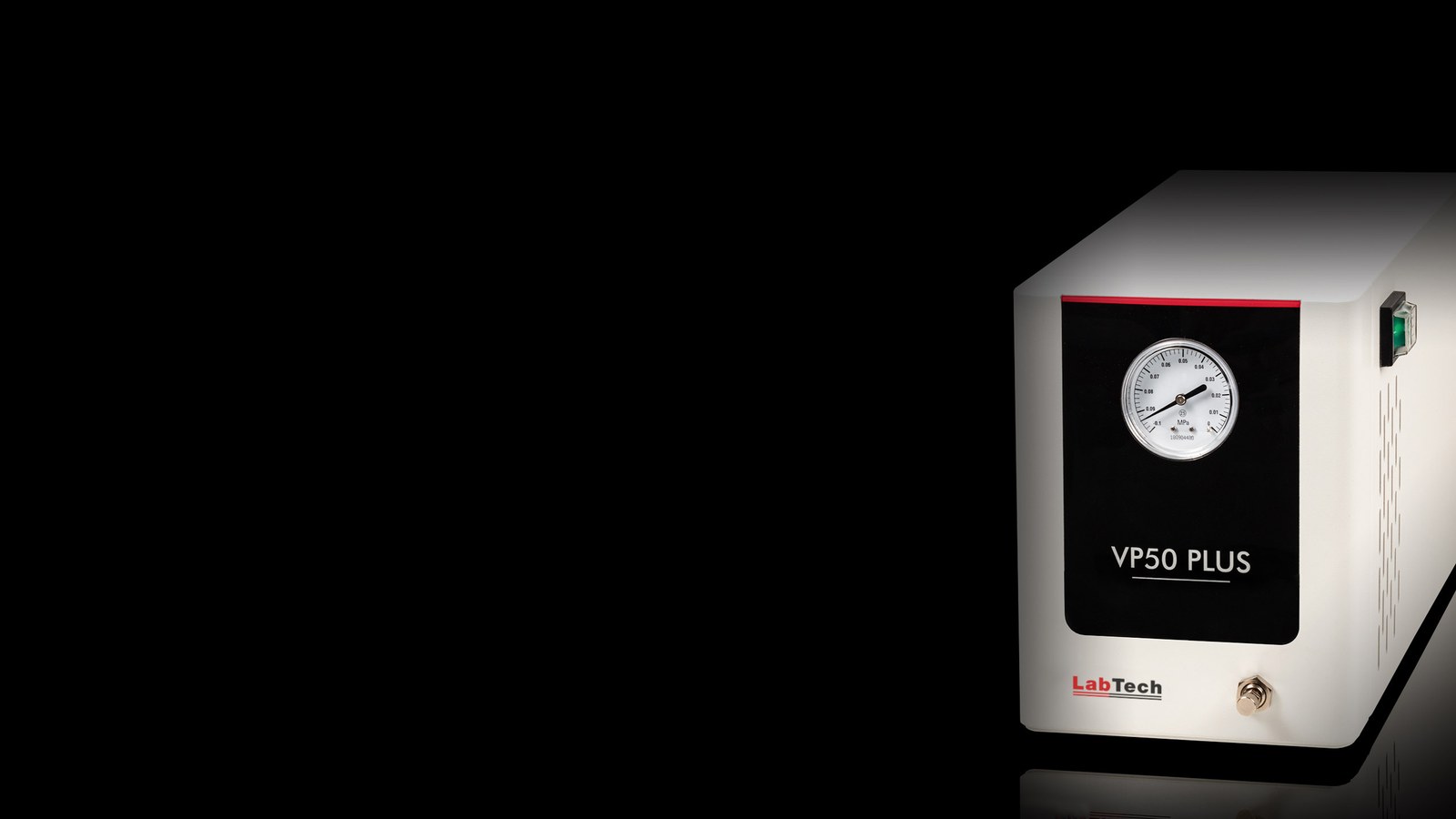

VP Series Oil-Free Laboratory Vacuum Pumps
Request a quoteOverview
Product overview
LabTech VP series pumps are oil-free membrane vacuum pumps. They were created as companions for LabTech rotary evaporators but are also used for vacuum filtration, degassing, impregnation, drying chambers, distillation, gel dryers, gas analytical systems and roughing of turbo molecular pumps.
The web page lists three models with pumping speeds from 18 to 50 L/min; the current brochure tables the VP30, VP18 PLUS, VP50 PLUS and VP20 PLUS. Ultimate vacuum ranges from 250 mbar on the VP30 to 5 mbar on the VP20 PLUS, and the PLUS models include a manual vacuum controller.
The pumps are compact and light, with noise from 42 to 60 dB, and the surface and main parts carry an anticorrosive coating for long service. LabTech recommends the VP18 PLUS as the match for its rotary evaporators.
Specifications
Technical specifications
12 parameters
- Models in brochure
- VP30, VP18 PLUS, VP50 PLUS, VP20 PLUS
- Pumping speed
- VP30: 30; VP18 PLUS: 18; VP50 PLUS: 50; VP20 PLUS: 20 L/min
- Vacuum pressure
- VP30: 250 mbar; VP18 PLUS: 20 mbar; VP50 PLUS: 150 mbar; VP20 PLUS: 5 mbar
- Power
- VP30: 80; VP18 PLUS: 140; VP50 PLUS: 100; VP20 PLUS: 280 W
- Vacuum controller
- VP30: none; PLUS models: manual
- Noise
- VP30: ≤50; VP18 PLUS: ≤42; VP50 PLUS: ≤58; VP20 PLUS: ≤60 dB
- Dimensions (L x W x H)
- VP30, VP18 PLUS, VP50 PLUS: 31.5x18x24; VP20 PLUS: 35x20x38 cm
- Weight
- VP30: 6; VP18 PLUS: 7; VP50 PLUS: 8; VP20 PLUS: 14 kg
- Power supply
- 230/110 V, 50/60 Hz
- Ordering codes
- LV5010, LV5080P, LV5050P, LV5020P
- Design
- Oil-free membrane pump; anticorrosive coating on surface and main parts
- Accessories
- Solvent filter stations (glass or SS316L funnels, 1, 3 or 6 branches)
Features
Key features
- 01
Oil-free
Membrane design with no oil to change or contaminate.
- 02
Low noise and vibration
From 42 dB on the VP18 PLUS.
- 03
Anticorrosive coating
Surface and main parts coated for long service.
- 04
Compact and light
From 6 kg; easy to move between workstations.
- 05
Manual vacuum control
PLUS models include a vacuum controller.
