Reference: XELSIUS
XELSIUS 10-Position Parallel Reactor with Heating, Cooling and Stirring
Ten-cell parallel reactor with independent Peltier heating and cooling from -20 to +150 °C, individual stirring to 1,500 rpm and ±0.1 °C stability, for reaction optimization and DoE.
Key specifications
- Reaction cell positions
- 10
- Reaction cell diameter
- 24 mm
- Reaction cell power
- 100 W
- Working temperature range
- -20 to +150 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
XELSIUS 10-Position Parallel Reactor with Heating, Cooling and Stirring
Request a quoteOverview
Product overview

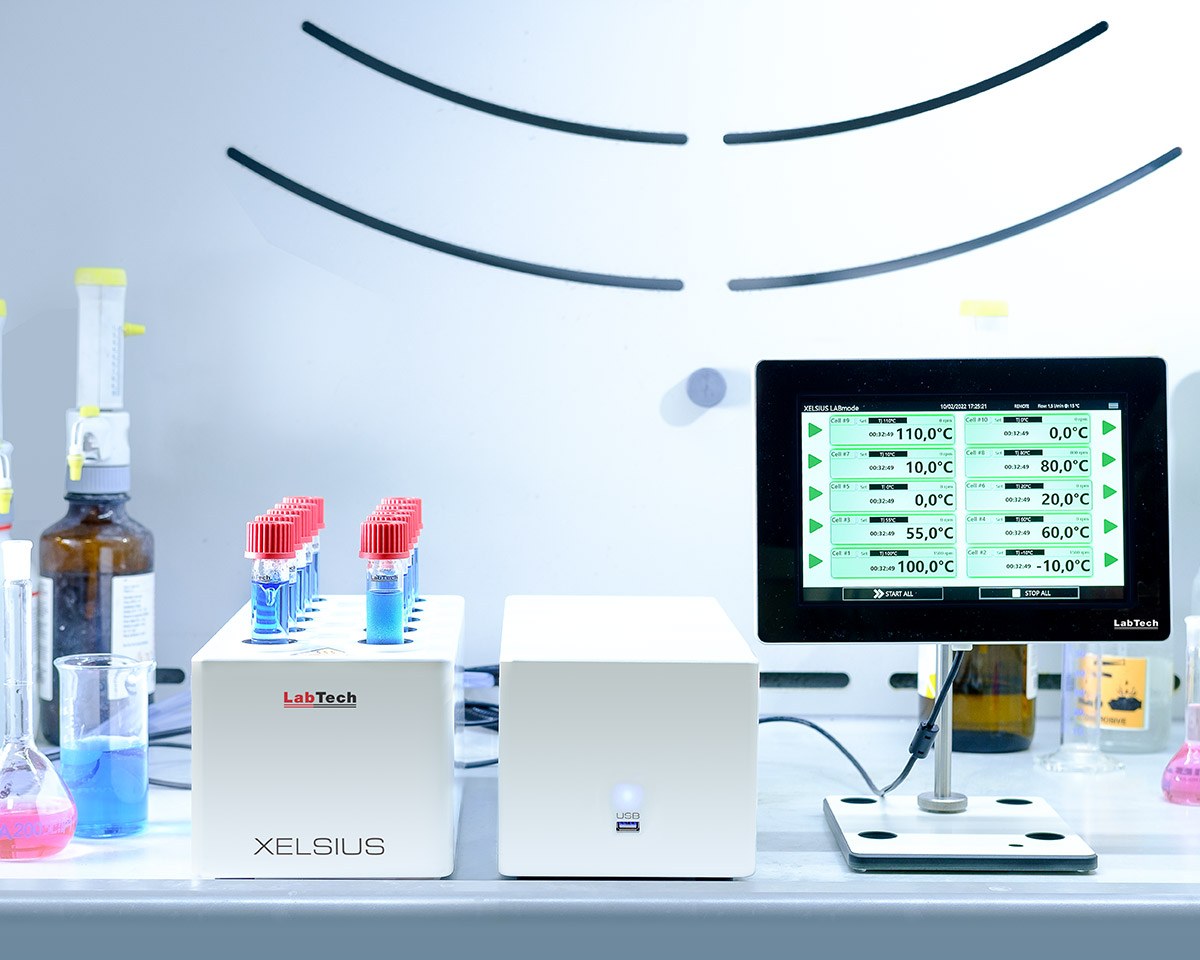

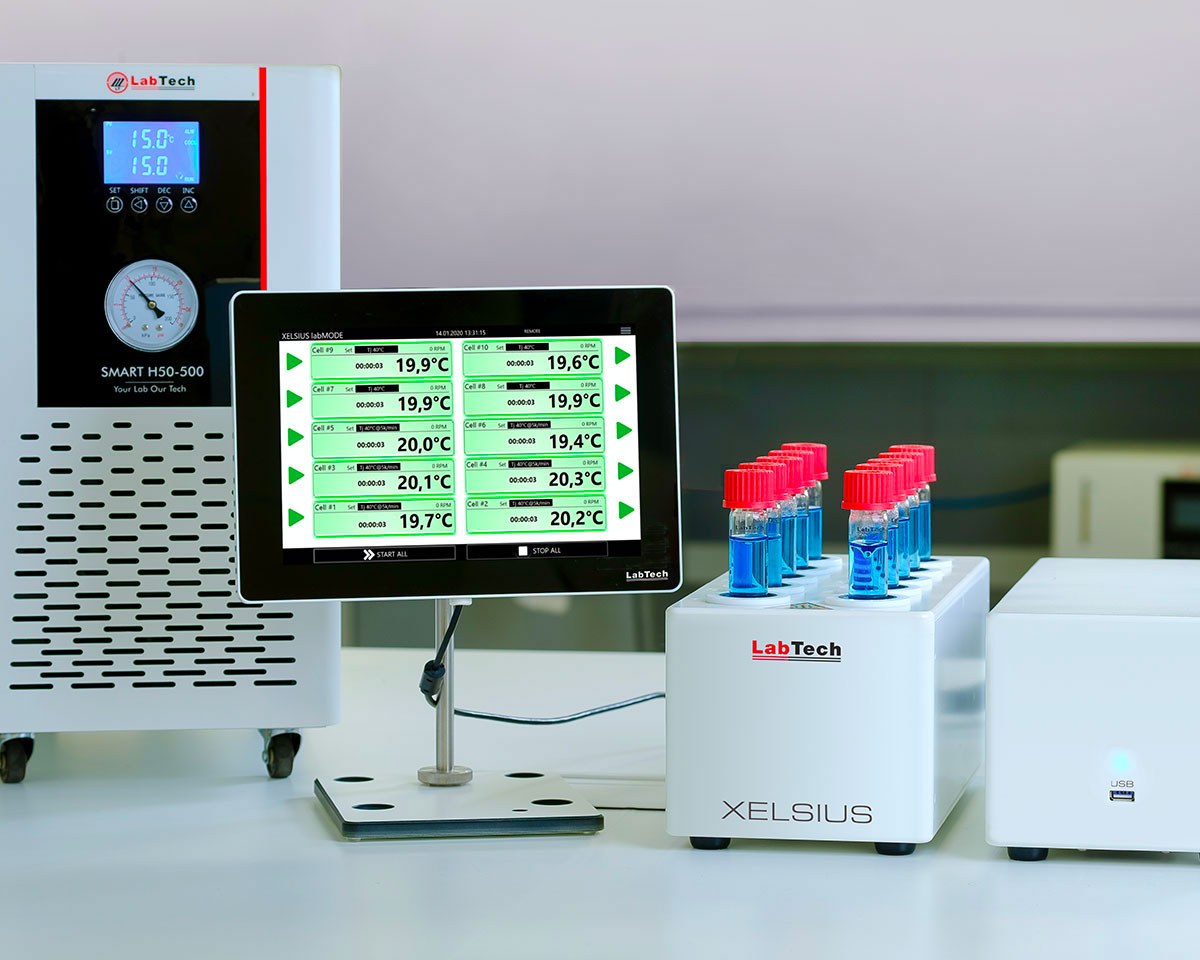

XELSIUS by LabTech runs ten experiments in one unit, each with fully independent heating, cooling and stirring. It is intended for solubility determination, catalyst supported reactions, design of experiments (DoE), crystallization experiments and PCR reactions, as well as parallel synthesis, route scouting and drug discovery.
Each 24 mm reaction cell is Peltier heated and cooled between -20 and +150 °C with ±0.1 °C accuracy and stability, heats at up to 48 °C/min and cools at up to 36 °C/min, and has its own stirring rate from 100 to 1,500 rpm. An external PT1000 sensor can be fitted to each cell to record the actual sample temperature. The PTFE coated housing and PFA protected cables are built for use in chemical fume hoods.
The software starts in LAB mode, showing all ten cells so heating, cooling, stirring or ramps can be started with a few clicks, and parameters can be copied to several cells. Methods can be created, saved and exported, with data logged for every cell. Accessories include a reflux condenser that reduces solvent loss, reaction vials from 1 to 30 mL with PTFE 5-port caps, and a dosing station.
Specifications
Technical specifications
19 parameters
- Reaction cell positions
- 10
- Reaction cell diameter
- 24 mm
- Reaction cell power
- 100 W
- Working temperature range
- -20 to +150 °C
- Temperature accuracy and stability
- ±0.1 °C
- Heating and cooling
- Peltier module system; independent ramping per cell
- Max. heating rate
- +48 °C/min
- Max. cooling rate
- -36 °C/min
- Stirring rate
- 100 to 1,500 rpm, independent per cell
- Sample volume per cell
- Up to 30 mL (vials 1 to 30 mL; PP, glass or PTFE)
- Other functions
- Sampling during reaction, inert gas atmosphere, anti-condensing circuit, overheating protection
- External sensors
- Up to 10 PT1000 sensors, one per cell
- Surface
- Aluminium with PTFE coating; cables protected by PFA hose
- Dimensions
- Reactor module and power supply module: 360 x 165 x 140 mm each; 10.1 inch touch terminal (1200 x 800)
- Weight
- Reactor 13 kg; power supply 7 kg; terminal 2 kg
- Power
- 240 V 50 Hz / 110 V 60 Hz; 1.2 kW
- System
- Windows IoT, 4 GB RAM, 128 GB SSD; USB, RS232, Ethernet, WLAN, Bluetooth
- Data
- Simultaneous logging per cell; export to Excel, CSV, PDF
- Accessories
- Reflux condenser, reaction vials and PTFE 5-port caps, dosing station (2 dosing units, 20 to 4000 µL/min)
Features
Key features
- 01
10 reactions in one
Independent heating, cooling and stirring for each cell.
- 02
Wide temperature range
-20 to +150 °C with ±0.1 °C stability.
- 03
Independent stirring
100 to 1,500 rpm set separately in each vial.
- 04
Fume hood ready
PTFE coated housing and glove-sensitive touch screen.
- 05
Data and methods
Live graphs, method storage and export to Excel, CSV and PDF.
- 06
Accessories
Reflux condenser, 5-port caps and dosing station.
