Reference: AET-4025 to AET-7095WC; AETR

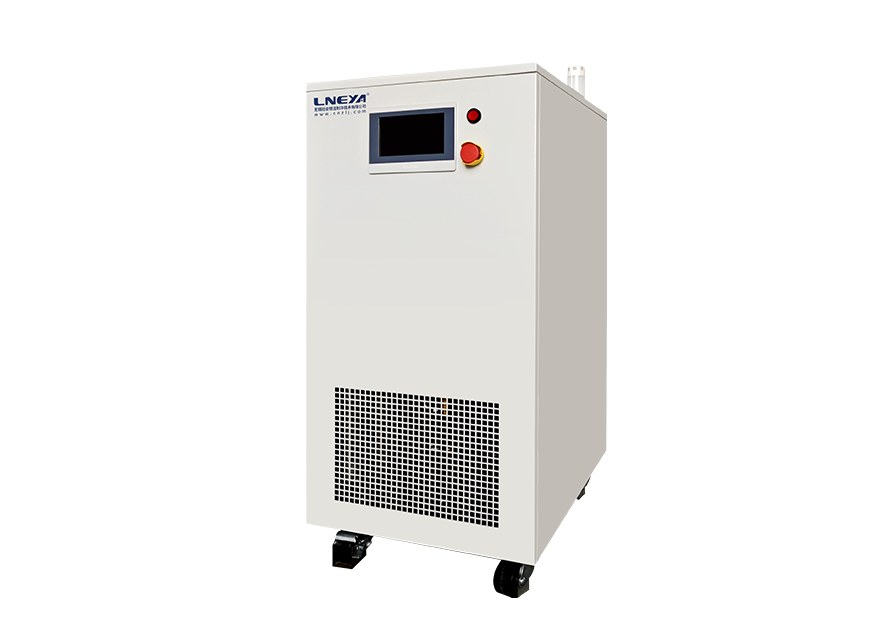

AET Thermal Test Chiller System (-75 to 250 °C)
Gas-based temperature control system for chucks, chambers and hot plates, delivering -75 to 250 °C air at ±0.1 °C outlet accuracy and 22 to 95 m³/h flow.
Key specifications
- Temperature range
- -40 to 250 / -75 to 250 °C
- Temperature accuracy (steady-state outlet)
- ±0.1 °C
- Remote process accuracy
- ±0.5 °C
- Air handling
- 25 / 50 / 95 m³/h
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
AET Thermal Test Chiller System (-75 to 250 °C)
Request a quoteOverview
Product overview
The AET series is a thermal test chiller for industrial gas cooling. Compressed air passes through a built-in dryer to a dew point of -70 °C or below, is cooled and heated, and leaves as a stable, constant-pressure stream used to control the temperature of chucks, chamber environments, heat plates, material shuttles and electronic components.
Models AET-4025, 4050 and 4095 reach -40 to 250 °C; AET-7025, 7050W and 7095W reach -75 to 250 °C, with 25, 50 or 95 m³/h air handling. Outlet accuracy is ±0.1 °C and remote process accuracy ±0.5 °C. AETR is the eco-friendly refrigerant version.
Specifications
Technical specifications
8 parameters
Performance
- Temperature range
- -40 to 250 / -75 to 250 °C
- Temperature accuracy (steady-state outlet)
- ±0.1 °C
- Remote process accuracy
- ±0.5 °C
- Air handling
- 25 / 50 / 95 m³/h
- Heating power
- 3000 / 3000 / 4000 W
Hydraulics
- Pressure range
- 0.6 to 0.8 MPa
Physical
- Refrigerant
- R454C / R290 / CO2 / R508B
- Air requirement
- Filter < 1 µm, oil < 1 mg/m³, dew point < 10 °C
Features
Key features
- 01
Gas outlet ±0.1 °C
Remote process ±0.5 °C.
- 02
Built-in dryer
Pre-dries air to -70 °C dew point.
- 03
Three flow sizes
25, 50 and 95 m³/h.
