Reference: DR-300, DR-600, DR-1200

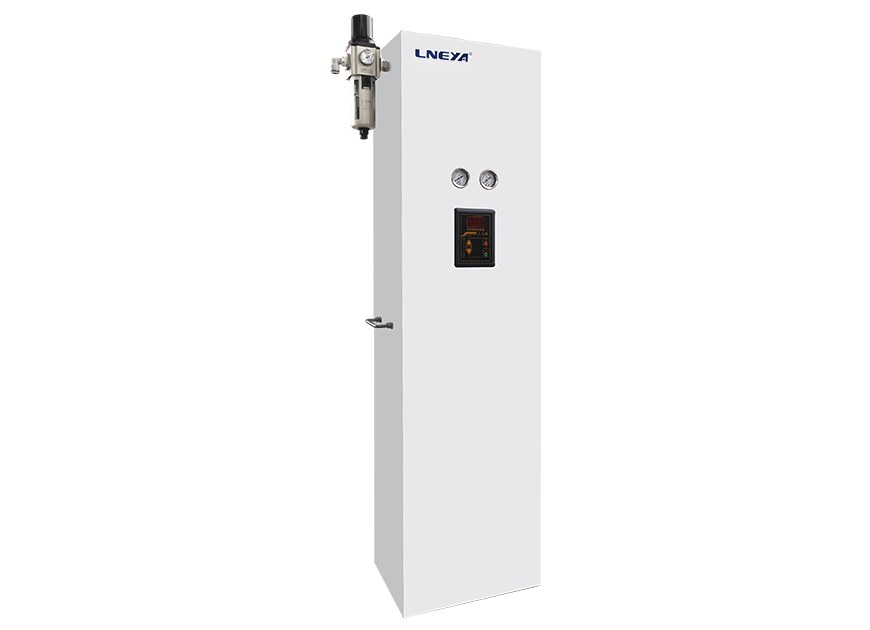

DR Series Industrial Gas Dryer (-70 °C dew point)
Desiccant compressed-air dryer delivering a -70 °C dew point at 0.65 to 1.0 MPa, with 300 to 1200 L/min of finished gas.
Key specifications
- Dew point temperature
- -70 °C
- Pressure range
- 0.65 to 1.0 MPa
- Gas processing capacity
- 425 / 900 / 1750 L/min
- Finished gas volume
- 300 / 600 / 1200 L/min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
DR Series Industrial Gas Dryer (-70 °C dew point)
Request a quoteOverview
Product overview
The DR series dries compressed air for sensors, semiconductor manufacturing, film and packaging, powder transport, spraying, food and pharmaceutical uses that require very low dew point and clean gas. It is also the dryer that supplies LNEYA's temperature forcing and thermal probe systems.
Multiple desiccant cartridges operate alternately: while one dries the air, part of the output regenerates the other. Models DR-300, DR-600 and DR-1200 process 425, 900 and 1750 L/min and deliver 300, 600 and 1200 L/min; desiccant life is about 15,000 working hours.
Specifications
Technical specifications
6 parameters
Performance
- Dew point temperature
- -70 °C
- Pressure range
- 0.65 to 1.0 MPa
- Gas processing capacity
- 425 / 900 / 1750 L/min
- Finished gas volume
- 300 / 600 / 1200 L/min
Physical
- Connection size
- ZG1/2, ZG1/2, ZG3/4
Electrical
- Power
- 220V 15W
Features
Key features
- 01
-70 °C dew point
Very dry air for sensitive processes.
- 02
Three sizes
Up to 1200 L/min finished gas.
- 03
Long desiccant life
About 15,000 working hours.
