Reference: ETCU-005W to ETCU-300W

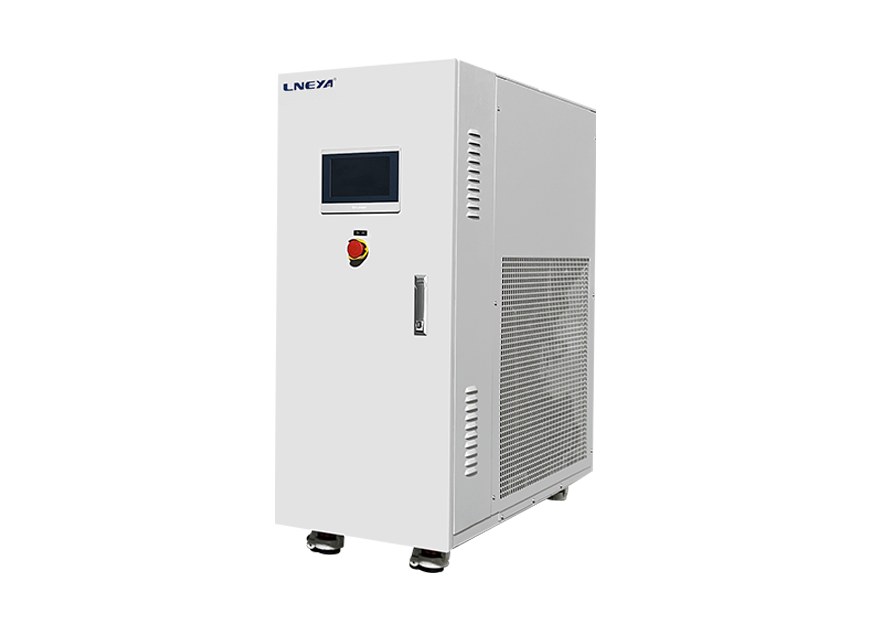

ETCU Heat-Exchange Chiller (5 to 90 °C)

Compressor-free heat-exchange temperature control units, 5 to 300 kW, holding ±0.05 °C by modulating facility cooling water.

Research & Academia

Key specifications

Temperature range (above cooling water temperature): 5 to 90 °C
Temperature control accuracy (steady-state outlet): ±0.05 °C
Cooling capacity: 5 / 15 / 30 / 50 / 100 / 200 / 300 kW
Circulation pump flow: 7-20 L/min up to 400-650 L/min at 5 bar

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

ETCU Heat-Exchange Chiller (5 to 90 °C)

Overview

Product overview

ETCU units control process temperature by regulating facility cooling water through Siemens or Honeywell valves, with no compressor. The series spans ETCU-005W to ETCU-300W, 5 to 300 kW at a 15 °C difference to the cooling water, with tank volumes from 5 to 240 L.

Accuracy at the steady-state outlet is ±0.05 °C over 5 to 90 °C. Below 40 °C, compressor hot-gas heating is used and the enclosed design allows 24-hour continuous operation; the units are used for semiconductor front-end to back-end processes and as extra channels in FLTZ multi-channel systems.

Specifications

Technical specifications

6 parameters

Performance

Temperature range (above cooling water temperature): 5 to 90 °C
Temperature control accuracy (steady-state outlet): ±0.05 °C
Cooling capacity: 5 / 15 / 30 / 50 / 100 / 200 / 300 kW

Hydraulics

Circulation pump flow: 7-20 L/min up to 400-650 L/min at 5 bar
Tank volume: 5 to 240 L
Cooling water temperature: 7 to 30 °C

Features

Key features

01
Valve-regulated cooling
Siemens or Honeywell regulating valves control cooling water.
02
Seven sizes
5 to 300 kW cooling capacity.
03
Fully enclosed
Designed for 24-hour continuous running.
