GD Battery Test Chamber (-40 to 100 °C)
Standard battery test chambers combining a temperature chamber with an antifreeze flow and pressure loop, -40 to 100 °C with ±0.1 °C antifreeze accuracy.
Key specifications
- Temperature range
- -40 to 100 °C
- Antifreeze temperature control accuracy
- ±0.1 °C
- Chamber temperature uniformity
- ≤ ±1 (unloaded) °C
- Antifreeze flow control
- 1 to 40 / 1 to 25 / 1 to 10 L/min, ±0.2 L/min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA

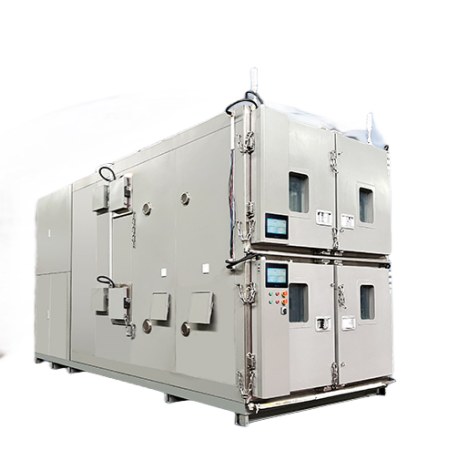

GD Battery Test Chamber (-40 to 100 °C)
Request a quoteOverview
Product overview
These chambers simulate temperature, flow rate and pressure conditions for power-battery samples during performance, safety and life-cycle testing. The GD-9000 models have independent upper and lower chambers; the GD-1000 has a single 100 x 100 x 100 cm cavity. They pair with a KRYCH antifreeze loop with 1 to 40 L/min flow control at ±0.2 L/min.
Chamber uniformity is within ±1 °C unloaded, cooling is possible directly from 100 °C and a variable-frequency compressor saves over 20% energy. Safety features include explosion-proof chains and pressure relief on the door, a fully welded stainless steel door, SUS304 inner chamber and 100 mm insulation. Data can be acquired and exported.
Specifications
Technical specifications
8 parameters
Performance
- Temperature range
- -40 to 100 °C
- Antifreeze temperature control accuracy
- ±0.1 °C
- Chamber temperature uniformity
- ≤ ±1 (unloaded) °C
- Antifreeze flow control
- 1 to 40 / 1 to 25 / 1 to 10 L/min, ±0.2 L/min
- Chamber heating rate
- ≥ 2 °C/min (25 to 100 °C, no load)
- Chamber cooling rate
- ≥ 1 °C/min (25 to -40 °C, no load)
Physical
- Chamber size
- Upper 220*322*120 cm and lower 220*322*110 cm (GD-9000); single 100*100*100 cm (GD-1000)
- Refrigerant
- R125 / R404A
Features
Key features
- 01
Dual chamber structure
Independent upper and lower chambers (GD-9000).
- 02
Explosion-proof relief
Door and pressure relief fitted with chains.
- 03
Data export
Acquisition and export supported.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
