Automatic Changeover - Mechanical / Electronic
Gas changeover manifold for two or more cylinders that switches from an empty to a standby cylinder without interrupting flow, up to 250 LPM at 6 bar.
Key specifications
- Flow
- 250 LPM at 6 bar
- Inlet
- 2 x 0-210 kg/cm2
- Outlet
- 1 x 0-14 kg/cm2 (or as required)
- Compatible gases
- Air, N2, H2, He, acetylene, Ar, N2O, P10, other flammable / non-flammable / corrosive gases
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Automatic Changeover - Mechanical / Electronic
Request a quoteOverview
Product overview

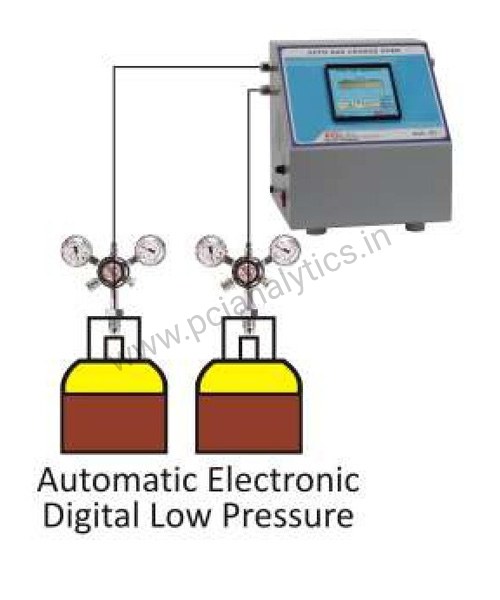

The automatic changeover system, in mechanical and electronic versions, switches from a depleted cylinder to a standby cylinder without any break in flow. The mechanical version suits two-cylinder systems and switches when pressure in the active cylinder falls below the set value; the set pressures can be adjusted to user requirements.
It can be used on multi-cylinder banks and handles air, N2, H2, He, acetylene, argon, N2O, P10 and other flammable, non-flammable and corrosive gases, at up to 250 LPM at 6 bar.
Specifications
Technical specifications
7 parameters
Performance
- Flow
- 250 LPM at 6 bar
Pressure gauges
- Inlet
- 2 x 0-210 kg/cm2
- Outlet
- 1 x 0-14 kg/cm2 (or as required)
Gas service
- Compatible gases
- Air, N2, H2, He, acetylene, Ar, N2O, P10, other flammable / non-flammable / corrosive gases
Connections
- Outlet
- 1/4 in OD ferrule fitting with ball valve
- Inlet
- 1/4 in BSP male to suit cylinder pigtail
Dimensions
- Mounting size
- 500 (L) x 300 (H) x 45 (D) mm
Features
Key features
- 01
Mechanical and electronic versions
- 02
No flow interruption
- 03
Suitable for corrosive and flammable gases
