PCI Oil-Free Diaphragm Vacuum Pumps and Compressors

Series of oil-free diaphragm pumps from 15 to 75 L/min, usable as vacuum pumps or small compressors, with chemical-resistant (CRP) versions.

Key specifications

PCI-15
max flow 15 L/min; max vacuum 22 in (554 mm Hg); max pressure 25 psig; weight approx. 3.0 kg; motor 1/20 HP; dimensions approx. 175 x 110 x 150 mm
PCI-25-S
max flow 15 L/min; max vacuum 27 in (680 mm Hg); max pressure 35 psig; weight approx. 5.5 kg; motor 1/16 HP; dimensions approx. 220 x 110 x 150 mm
PCI-25-P
max flow 25 L/min; max vacuum 22 in (554 mm Hg); max pressure 25 psig; weight approx. 5.5 kg; motor 1/16 HP; dimensions approx. 220 x 110 x 150 mm
PCI-45
max flow 45 L/min; max vacuum 22 in (554 mm Hg); max pressure 35 psig; weight approx. 7.0 kg; motor 1/8 HP; dimensions approx. 200 x 125 x 200 mm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

PCI Analytics makes a range of oil-free diaphragm pumps that need no lubrication, run quietly and are portable. Models listed include PCI-15, PCI-25-S/P, PCI-45, PCI-75-S/P, the CRP chemical-resistant versions, ROCKER-300, PV-300, PCI-30 and PCI-60, with flows from 15 to 75 L/min.

The pumps have a built-in micro suction filter and SS 316 valves. Options include special diaphragms, single-phase or flame-proof motors, a vacuum gauge with regulator and SS 316 contact parts. Typical uses are solvent filtration, solid-phase extraction, rotary evaporation, gas sampling and, as compressors, AAS and flame photometer supply.

Specifications

Technical specifications

14 parameters

Models

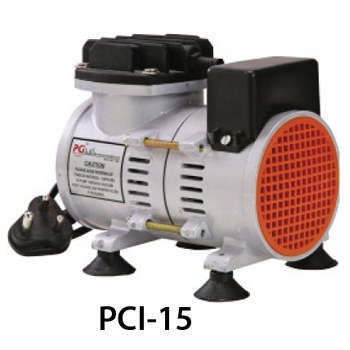

PCI-15
max flow 15 L/min; max vacuum 22 in (554 mm Hg); max pressure 25 psig; weight approx. 3.0 kg; motor 1/20 HP; dimensions approx. 175 x 110 x 150 mm
PCI-25-S
max flow 15 L/min; max vacuum 27 in (680 mm Hg); max pressure 35 psig; weight approx. 5.5 kg; motor 1/16 HP; dimensions approx. 220 x 110 x 150 mm
PCI-25-P
max flow 25 L/min; max vacuum 22 in (554 mm Hg); max pressure 25 psig; weight approx. 5.5 kg; motor 1/16 HP; dimensions approx. 220 x 110 x 150 mm

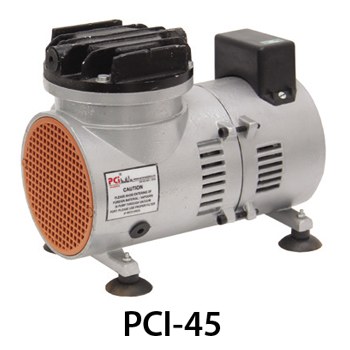

PCI-45
max flow 45 L/min; max vacuum 22 in (554 mm Hg); max pressure 35 psig; weight approx. 7.0 kg; motor 1/8 HP; dimensions approx. 200 x 125 x 200 mm
PCI-45-CRP
max flow 30 L/min; max vacuum 22 in (554 mm Hg); max pressure 10 psig; weight approx. 7.0 kg; motor 1/8 HP; dimensions approx. 220 x 150 x 200 mm
PCI-75-S
max flow 45 L/min; max vacuum 27 in (680 mm Hg); max pressure 55 psig; weight approx. 12.5 kg; motor 1/4 HP; dimensions approx. 300 x 130 x 200 mm
PCI-75-P
max flow 75 L/min; max vacuum 22 in (554 mm Hg); max pressure 40 psig; weight approx. 12.5 kg; motor 1/4 HP; dimensions approx. 300 x 130 x 200 mm
PCI-75-CRP
max flow 38 L/min; max vacuum 22 in (554 mm Hg); max pressure 10 psig; motor 1/4 HP

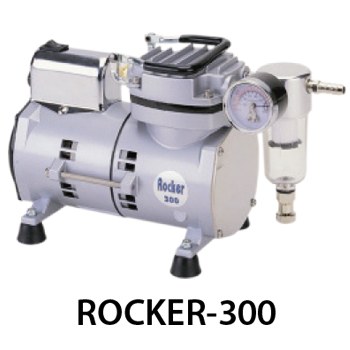

ROCKER-300
max flow 20 L/min; max vacuum 27 in (670 mm Hg); max pressure 12 psig; motor 1/8 HP; dimensions approx. 268 x 135 x 204 mm
PV-300
max flow 17 L/min; max vacuum 90 mbar; max pressure 41 psig
PCI-30
max flow 25 L/min; max vacuum 650 mm Hg; max pressure 43 psig; weight approx. 5.5 kg; dimensions approx. 240 x 100 x 140 mm
PCI-60
max flow 50 L/min; max vacuum 700 mm Hg; max pressure 87 psig; weight approx. 4 kg; dimensions approx. 175 x 85 x 145 mm

General

Diaphragm
2-ply nylon-reinforced neoprene (Teflon / Viton optional)
Valve material
SS 316
Features

Key features

  • 01

    Oil-free, no lubrication

    Practically maintenance-free

  • 02

    Vacuum or compressor use

  • 03

    CRP versions

    PP and Teflon contact parts

  • 04

    Motor options

    Single-phase or flame-proof
