Pconlab Solvent Safety System for HPLC
Closed-loop mobile phase caps for GL45 bottles with two or four ports, a 120 µm PTFE air filter and check valve that keeps solvent vapour out of the lab.
Key specifications
- Air inlet filter
- 120 µm PTFE particulate filter
- Cap materials
- PTFE body, polypropylene collar, FFKM seals
- Cap format
- GL45 bottles; two or four ports; 1/8 in or smaller OD tubing with 1/4-28 flat-bottom fittings
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Pconlab Solvent Safety System for HPLC
Request a quoteOverview
Product overview
The Pconlab Solvent Safety System is a closed-loop way to handle HPLC mobile phase. A PTFE cap body seals tightly against the reservoir, and air entering as solvent is withdrawn passes through a 120 µm PTFE particulate filter, while a built-in check valve prevents vapour escaping.

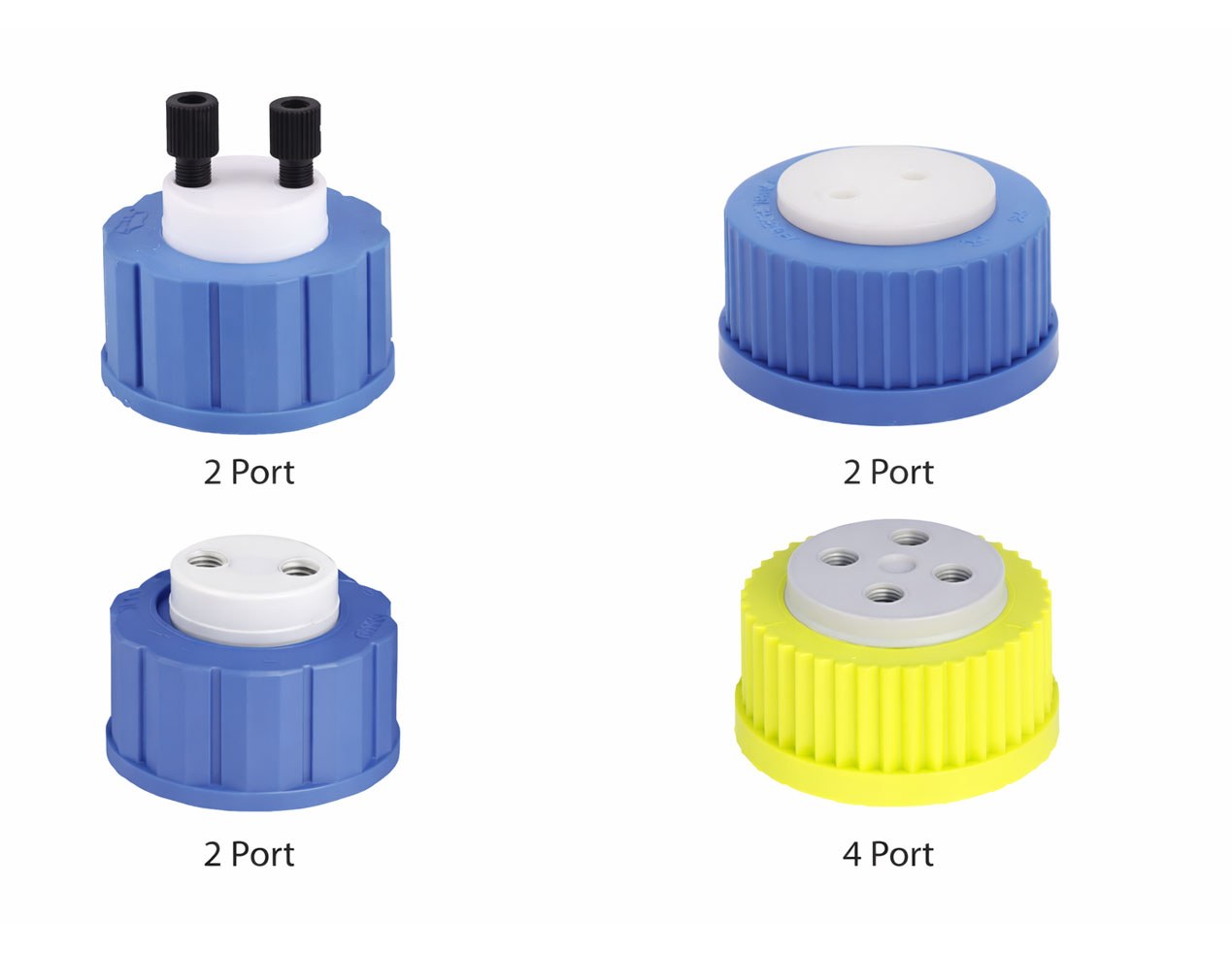

Caps fit GL45 bottles with two or four ports for 1/8 in or smaller OD tubing, and the materials are polypropylene collar, PTFE body and FFKM seals. Caps and accessories are sold individually or as kits of one or four caps with fittings and plugs.
Specifications
Technical specifications
3 parameters
- Air inlet filter
- 120 µm PTFE particulate filter
- Cap materials
- PTFE body, polypropylene collar, FFKM seals
- Cap format
- GL45 bottles; two or four ports; 1/8 in or smaller OD tubing with 1/4-28 flat-bottom fittings
Features
Key features
- 01
GL45 caps with two or four ports
- 02
120 µm PTFE air filter and check valve
- 03
Sold individually or as kits
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
