Pconlab Solvent Safety Waste Collector (HPLC Waste Safety System)
Closed-loop HPLC waste manifold and kit with an activated-carbon exhaust filter and breakthrough indicator that traps solvent vapours from waste containers.
Key specifications
- Ports
- 6 port; 1 port for 1/4 in HB or 3/8 in HB
- Material
- Polypropylene (PP), 83 mm connection
- PP / HDPE carboy
- 10 L / 20 L, 83 mm neck
- SS 304/316 carboy
- 10 L, 83 mm neck
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Pconlab Solvent Safety Waste Collector (HPLC Waste Safety System)
Request a quoteOverview
Product overview

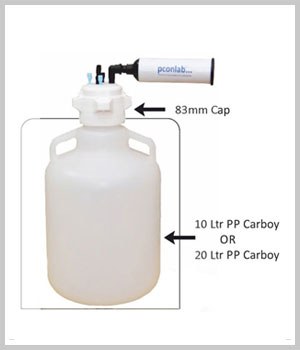

The Solvent Safety Waste Collector seals an HPLC waste container air tight and connects the LC waste lines to it through a 6-port polypropylene manifold (83 mm connection). An activated-carbon exhaust filter adsorbs solvent vapours, and an optional colour indicator shows when the carbon is loaded.
Containers are PP or HDPE carboys of 10 or 20 L, or SS 304/316 carboys of 10 L. A complete kit adds fittings for several tubing sizes, adapters, siphoned overflow tubing and a 100 g activated charcoal cartridge, and a liquid level sensor is an option on request.
Specifications
Technical specifications
5 parameters
Manifold
- Ports
- 6 port; 1 port for 1/4 in HB or 3/8 in HB
- Material
- Polypropylene (PP), 83 mm connection
Containers
- PP / HDPE carboy
- 10 L / 20 L, 83 mm neck
- SS 304/316 carboy
- 10 L, 83 mm neck
Filtration
- Exhaust filter
- Activated charcoal cartridge (100 g) with optional breakthrough indicator
Features
Key features
- 01
6-port PP manifold
- 02
Activated carbon exhaust filter
- 03
Breakthrough colour indicator
- 04
PP, HDPE or stainless carboys
