P-Lok Cylinder and Point-of-Use Regulators (NGS, NGSH, NGSS, FBG, TXC, HFS)
P-Lok regulator range: single and double stage, pre-heated and piston types, corrosive-gas TXC series and wall or table point-of-use regulators.
Key specifications
- Type / use
- Double stage; inert and flammable gases; inlet 150 bar, outlet 10 bar
- Type / use
- Double stage with pre-heater; liquefied gases; inlet 150 bar, outlet 10 bar
- Type / use
- Single stage; inert and flammable gases; inlet 40 to 10 bar, outlet 10 to 4 bar
- Type / use
- Piston type; high-pressure user point; inlet 150 bar, outlet 12 to 150 bar
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
P-Lok Cylinder and Point-of-Use Regulators (NGS, NGSH, NGSS, FBG, TXC, HFS)
Request a quoteOverview
Product overview

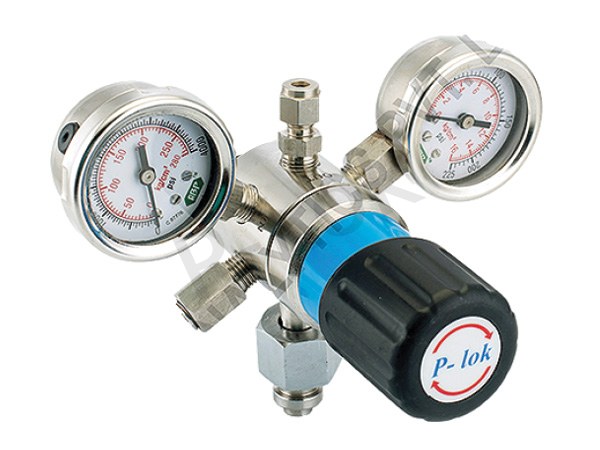

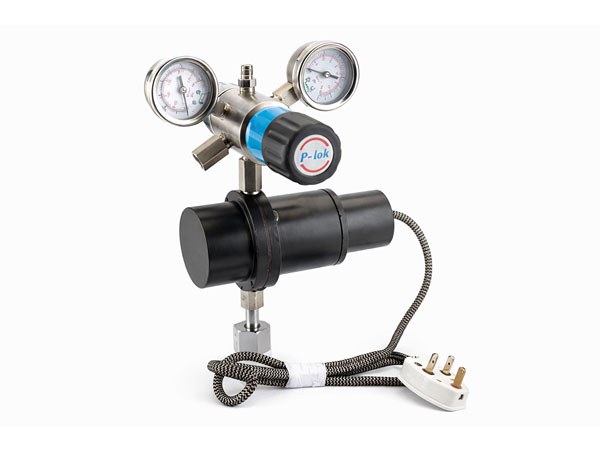

P-Lok makes cylinder regulators in several series: NGS (double stage for inert and flammable gases), NGSH (double stage with pre-heater for liquefied gases), NGSS (single stage), FBG (piston type for high-pressure user points), TXC (single stage for corrosive gases) and HFS (high-flow double stage).

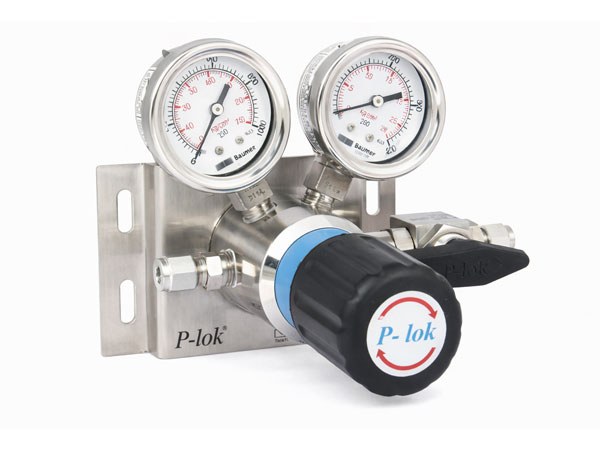

Point-of-use regulators for wall or table mounting are also offered, combining outlet or inlet and outlet gauges with ball, needle or shut-off valves. Bodies are SS 316, brass or Monel with flow up to 600 LPM.
Specifications
Technical specifications
6 parameters
- Type / use
- Double stage; inert and flammable gases; inlet 150 bar, outlet 10 bar
- Type / use
- Double stage with pre-heater; liquefied gases; inlet 150 bar, outlet 10 bar
- Type / use
- Single stage; inert and flammable gases; inlet 40 to 10 bar, outlet 10 to 4 bar
- Type / use
- Piston type; high-pressure user point; inlet 150 bar, outlet 12 to 150 bar
- Type / use
- Single stage; corrosive/reactive gases (HCl, Cl2, NH3, SF6, H2S); inlet 150 to 10 bar, outlet 10 to 2 bar
- Type / use
- High-flow double-stage cylinder regulator
Features
Key features
- 01
NGS / NGSH / NGSS series
Double and single stage, with pre-heater option
- 02
FBG piston-type series
High-pressure user point
- 03
TXC series
Corrosive and reactive gases
- 04
Point-of-use regulators
Wall or table mount
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
