P-Lok Tube Fittings (Compression, Connector, Orbital and Socket Weld)
Leak-proof tube fittings for gas and instrumentation piping, rated up to 300 bar: compression, NPT/BSP connectors, tee and elbow, orbital weld and forged socket weld.
Key specifications
- Pressure rating
- up to 300 bar
- Fitting types
- Compression, connector, tee and elbow connector, orbital weld, socket weld
- Connector threads
- NPT / BSP, male / female
- Socket weld fittings
- According to ASME B16
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
P-Lok Tube Fittings (Compression, Connector, Orbital and Socket Weld)
Request a quoteOverview
Product overview
P-Lok fittings are designed for gas piping, instrumentation piping, high-pressure service, autoclaves and pilot plants. Compression fittings come as body, nut, front ferrule and back ferrule, install without special tools and resist vibration.

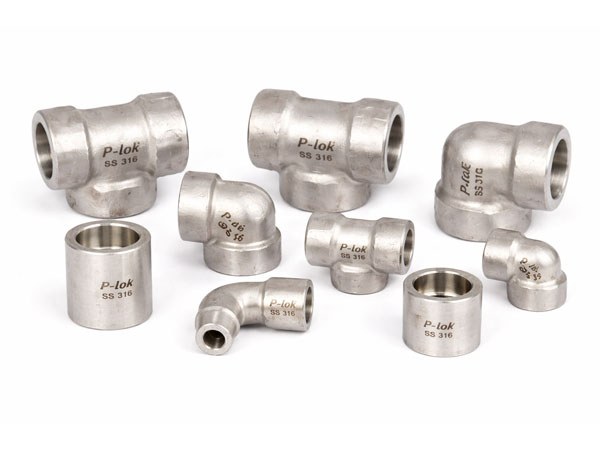

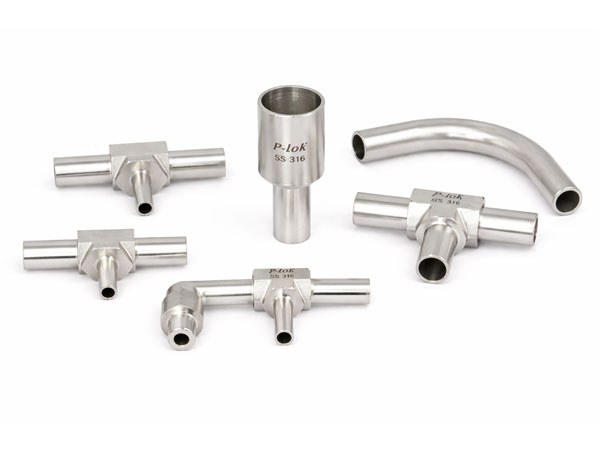

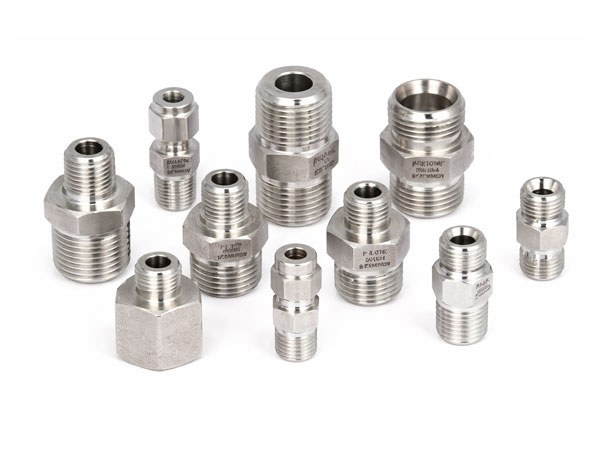

The range also has NPT/BSP connectors and tee/elbow connectors rated up to 300 bar, 100% leak-proof orbital weld fittings for semiconductor and similar uses, and forged socket weld fittings to ASME B16.
Specifications
Technical specifications
4 parameters
- Pressure rating
- up to 300 bar
- Fitting types
- Compression, connector, tee and elbow connector, orbital weld, socket weld
- Connector threads
- NPT / BSP, male / female
- Socket weld fittings
- According to ASME B16
Features
Key features
- 01
Compression fittings
Four-part design, no special tools
- 02
Connectors, tees and elbows
NPT / BSP threads up to 300 bar
- 03
Orbital and socket weld
Leak-proof welded joints
