Reference: PrepCon 6
PrepCon 6 Control & Data Handling System for Preparative LC and HPLC
Modular preparative chromatography data system, the successor to PrepCon 5, with flowchart visualization, intelligent fractionation and GMP / FDA 21 CFR Part 11 compliance.
Key specifications
- Operating system
- Windows 10 or higher, 64 bit
- RAM
- 8 GB or more
- CPU
- At least Intel Core i5 6th Gen. or comparable
- Disk space
- At least 10 GB free
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
PrepCon 6 Control & Data Handling System for Preparative LC and HPLC
Request a quoteOverview
Product overview

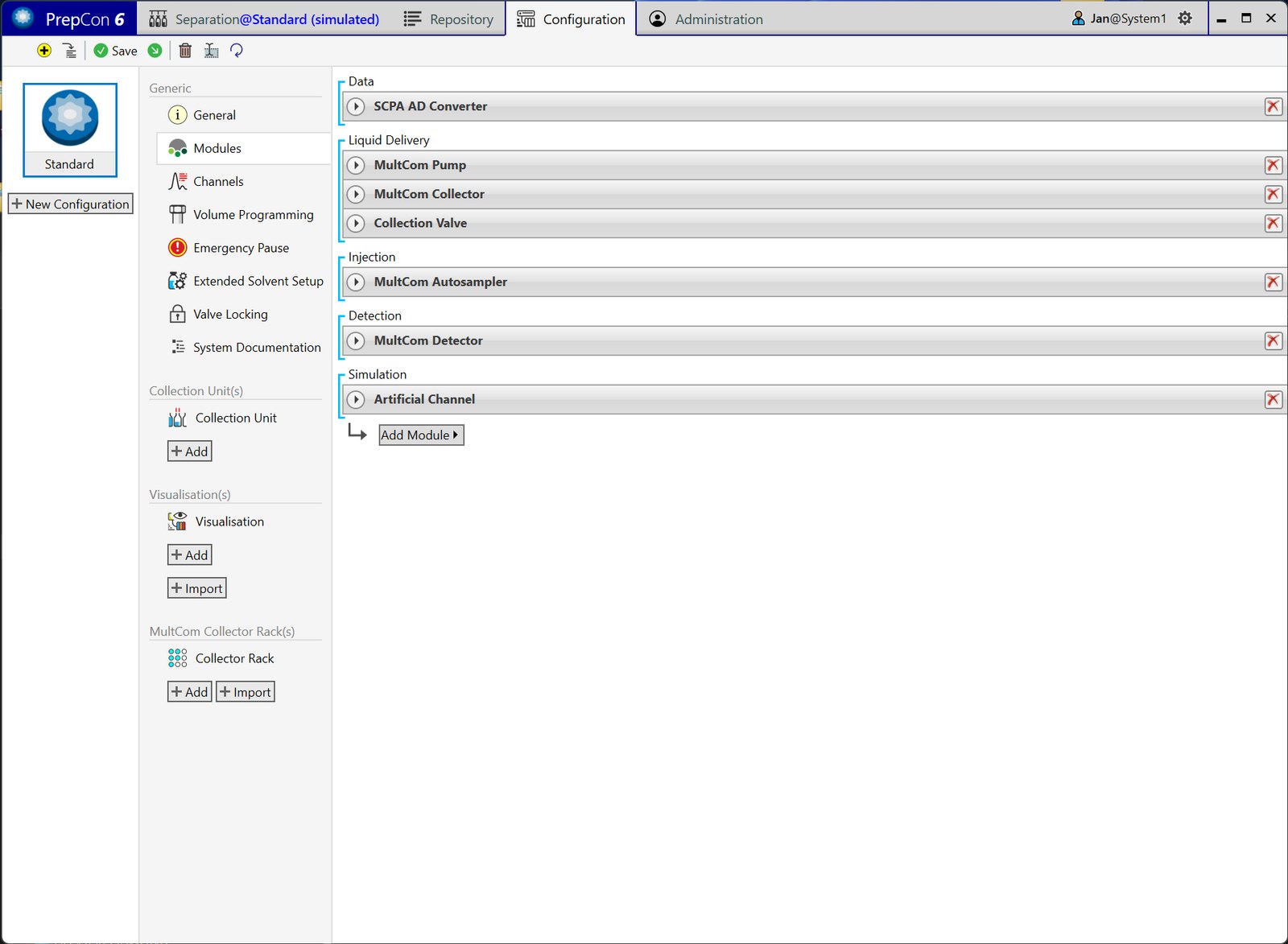

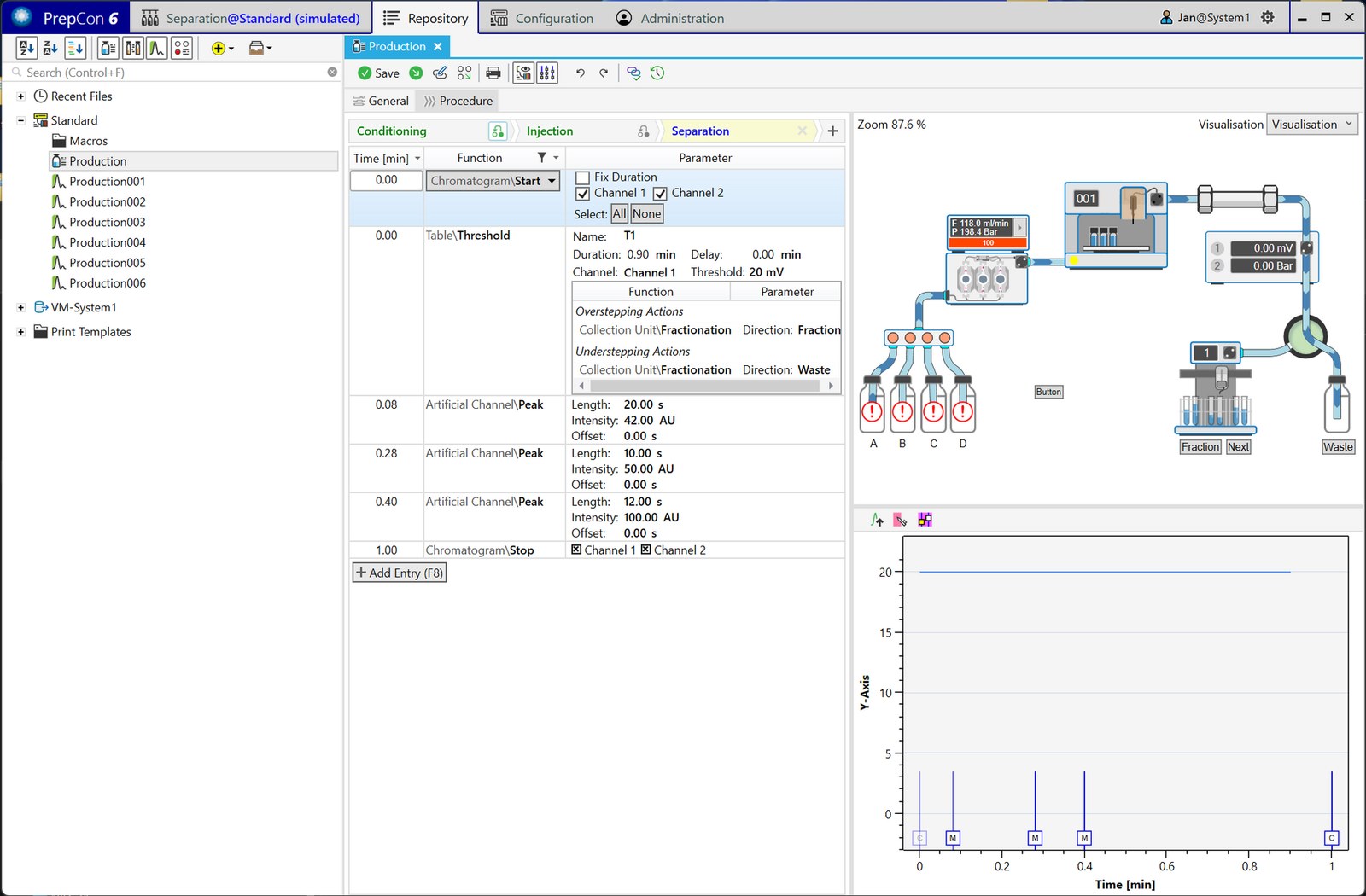

PrepCon 6 is the successor to PrepCon 5 for controlling preparative LC/HPLC systems. Its modular structure lets users configure even complex processing plants, supported by dynamic flowchart visualizations, customizable graphical interfaces and management of multiple configurations. Intelligent Fractionation supports the purification process, and an error-handling mechanism detects and manages device errors.
It follows GMP and FDA 21 CFR Part 11 requirements and takes the principles of GAMP5 into account. Methods can be step-based and time- or volume-based, process data can be reconstructed and documented, and users and roles are managed independently. Data can be stored in the local file system or on a central server, and the database servers can be made redundant for high availability.
Specifications
Technical specifications
7 parameters
System requirements
- Operating system
- Windows 10 or higher, 64 bit
- RAM
- 8 GB or more
- CPU
- At least Intel Core i5 6th Gen. or comparable
- Disk space
- At least 10 GB free
- Screen resolution
- 1920 x 1080 @ 96 dpi, or better
- Input devices
- Mouse and keyboard
- Connectivity
- A second network card creating an independent LAN is recommended; a free USB port is needed if a license dongle is used
Features
Key features
- 01

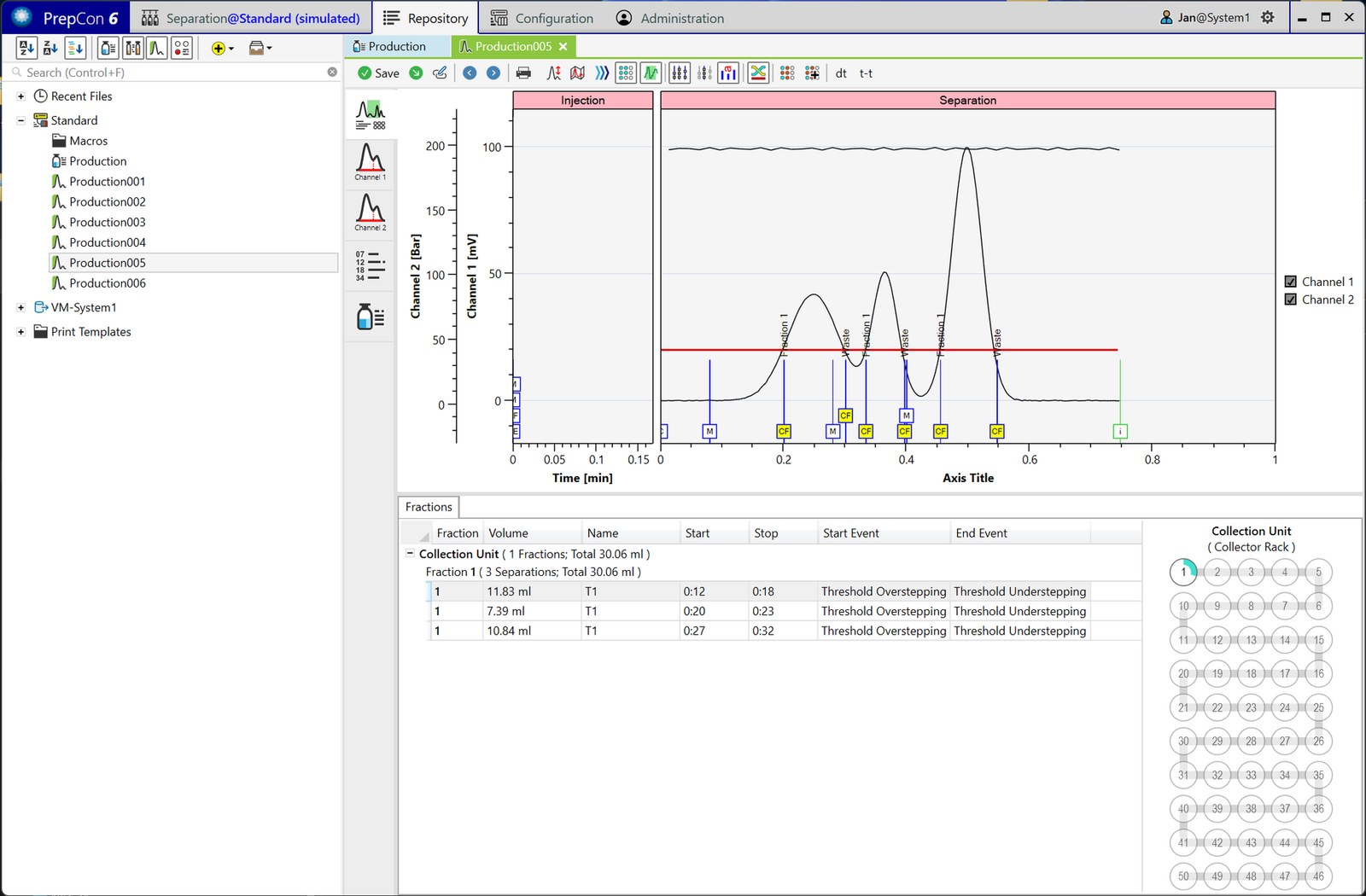

Intelligent Fractionation
Supports efficient, precise purification.
- 02
Regulatory compliance
GMP, FDA 21 CFR Part 11, GAMP5 principles.
- 03
Modular configuration
Flowchart visualization and multiple configurations.
- 04
Redundant servers
Optional central server with redundancy.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
