Reference: S 1130

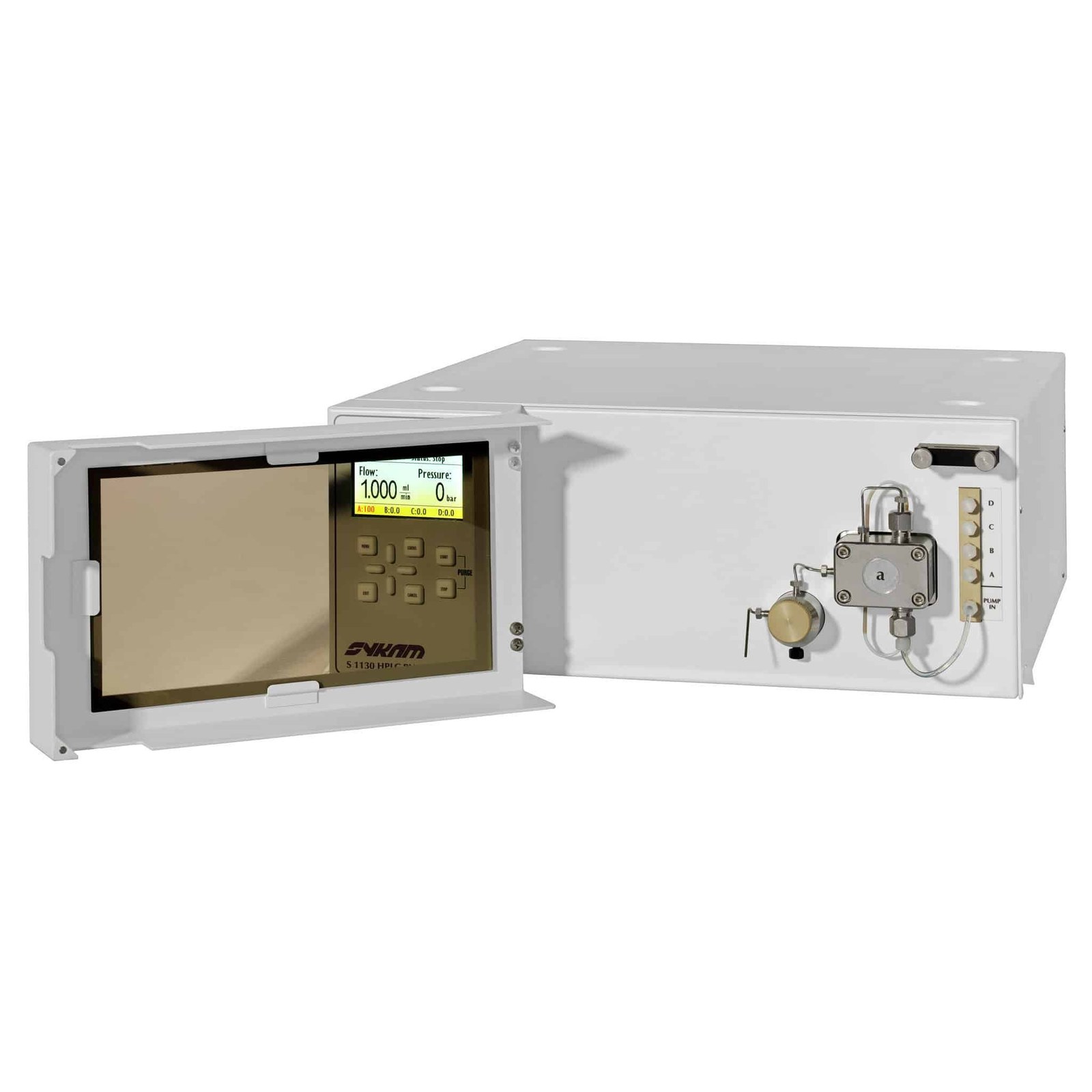

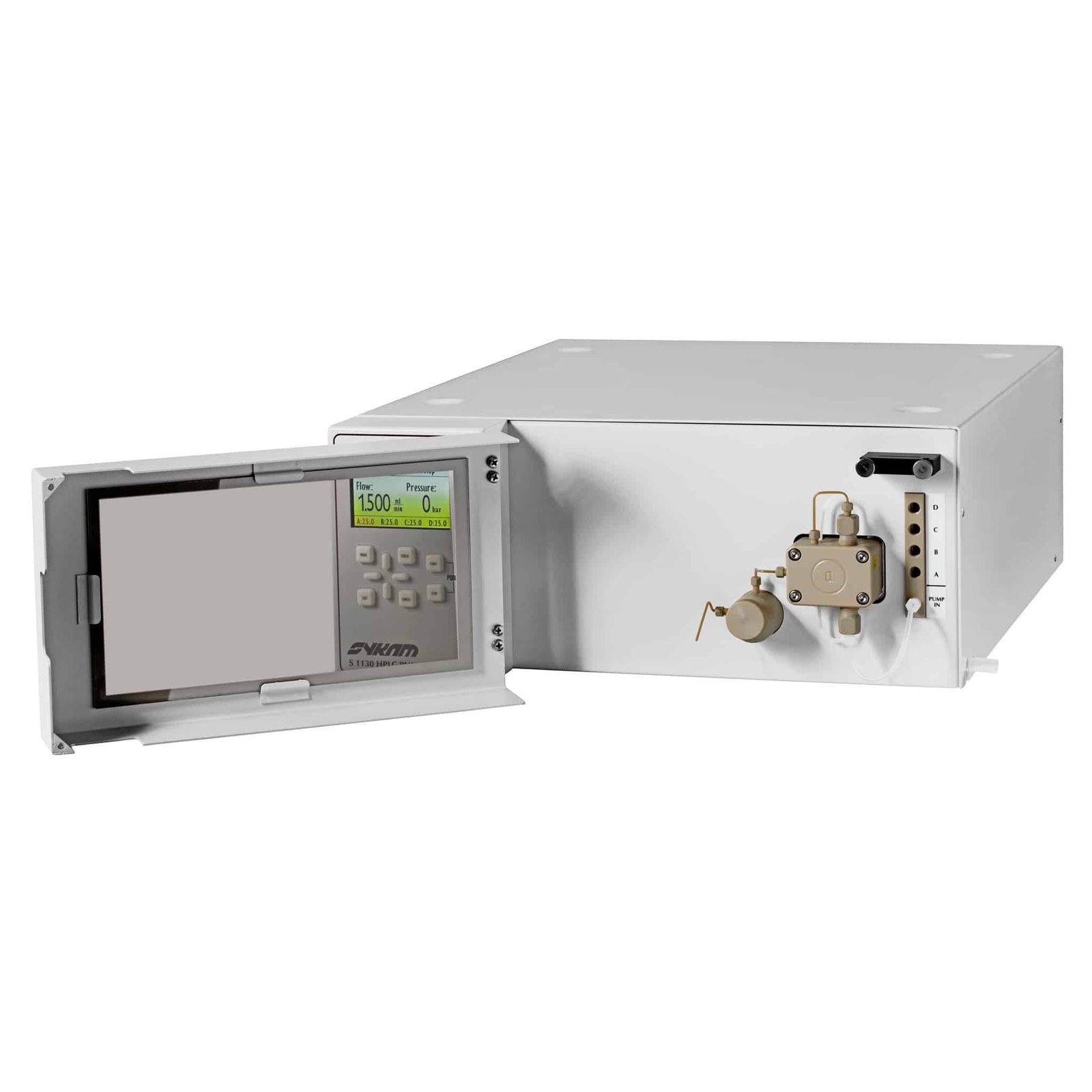

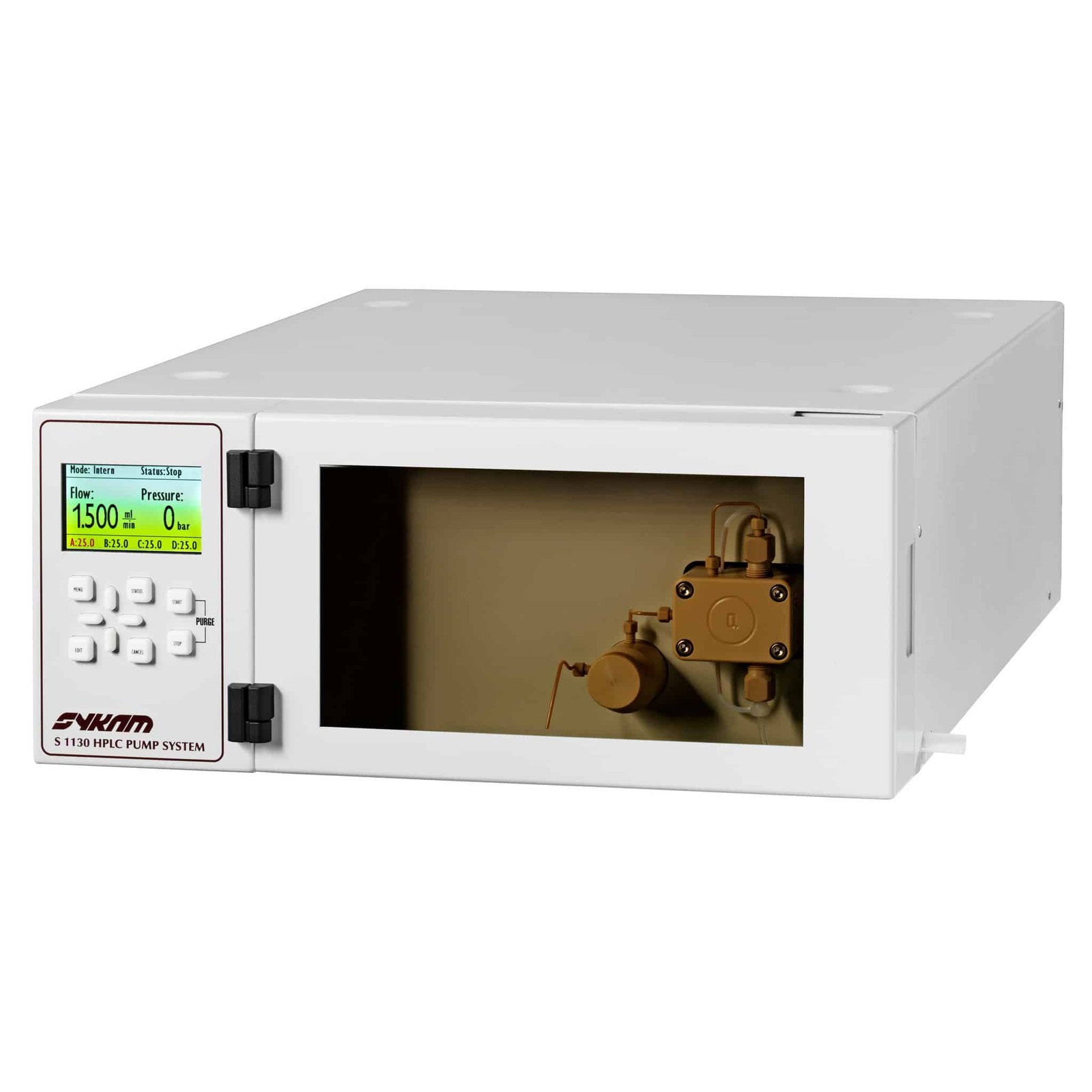

Sykam S 1130 Isocratic HPLC Pump
Isocratic HPLC pump from the Sykam S 600 series with stainless steel or PEEK pump heads, microprocessor pressure feedback and optional degasser.
Key specifications
- Dimensions
- 47,8 × 16,5 × 39,6 cm
- Solvent delivery method
- Dual piston in series with two checkvalves
- Pressure feedback
- Microprocessor controlled
- Pulsation compensation
- Microprocessor controlled
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 1130 Isocratic HPLC Pump
Request a quoteOverview
Product overview
The S 1130 isocratic pump is part of the S 600 routine series of Sykam HPLC instruments but works equally well as a stand-alone instrument. Analytical (0.001 – 10 ml/min), micro (0.001 – 4 ml/min) and semi-preparative (0.1 – 40 ml/min) versions are available with stainless steel or PEEK pump heads.
With the optional built-in vacuum degasser and active piston backwash it suits applications from standard reversed-phase HPLC to bio-chromatography with high-salt or corrosive buffers. Its footprint is only 396 x 165 x 478 mm (HxWxD), so it takes little bench space.
Specifications
Technical specifications
10 parameters
Instrument
- Dimensions
- 47,8 × 16,5 × 39,6 cm
Pump
- Solvent delivery method
- Dual piston in series with two checkvalves
- Pressure feedback
- Microprocessor controlled
- Pulsation compensation
- Microprocessor controlled
- Pump heads
- Stainless steel with passive piston back-seal flushing; PEEK with passive piston back-seal flushing
- Active piston back-seal flushing
- Optional
- Built-in vacuum degasser
- Optional
- Flow rate (analytical version)
- 0.001 – 10 ml/min
- Flow rate (micro version)
- 0.001 – 4 ml/min
- Flow rate (semi-preparative version)
- 0.1 – 40 ml/min
Features
Key features
- 01
Steel or PEEK pump heads
Passive piston back-seal flushing on both.
- 02
Optional degasser and active backwash
For corrosive or high-salt buffers.
- 03
Microprocessor control
Pressure feedback and pulsation compensation.
