Reference: S 150

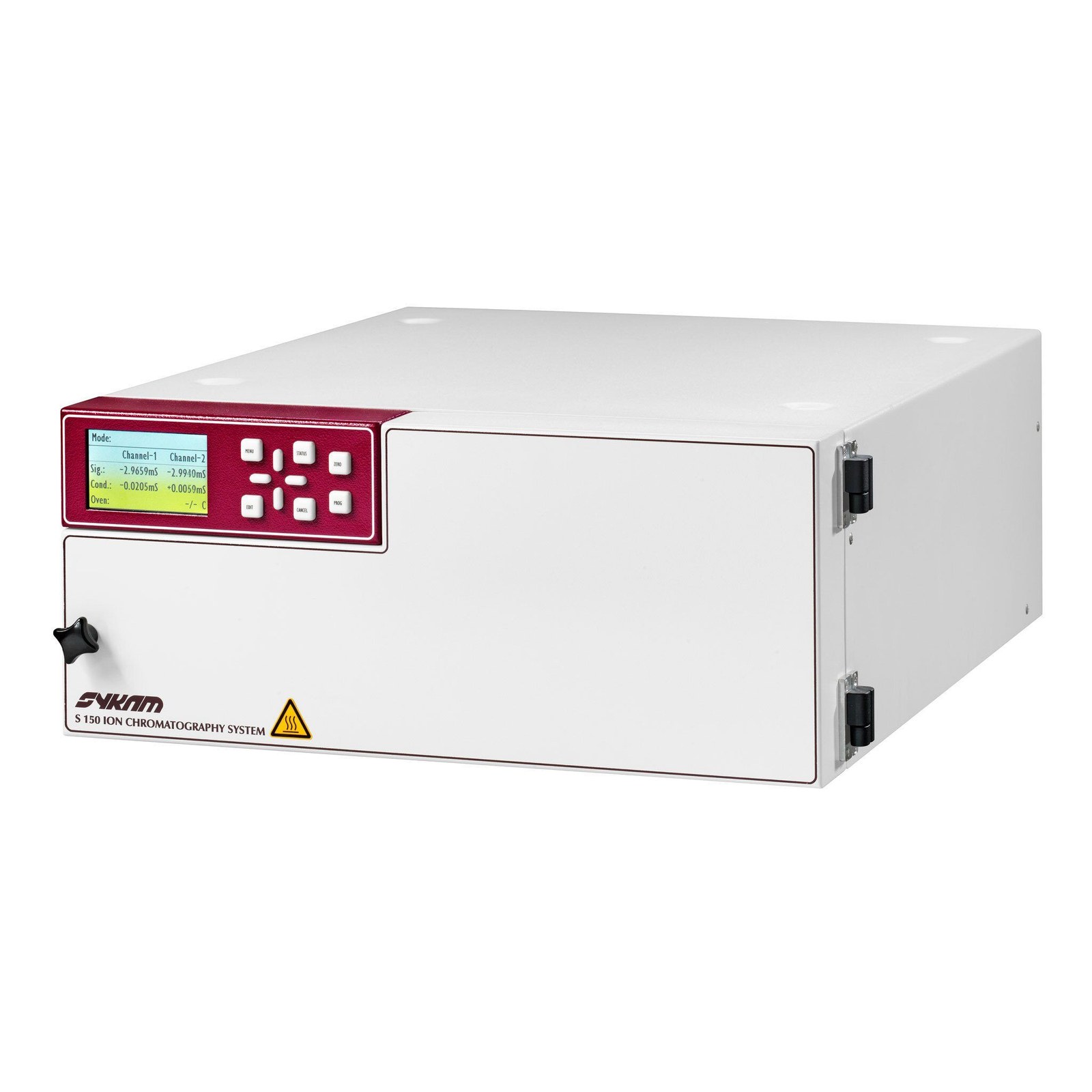

Sykam S 150 Ion Chromatography System Module
Integrated ion chromatography module combining column oven, in-line suppressor (anion configuration) and conductivity detector.
Key specifications
- Dimensions
- 47,8 × 39,6 × 16,5 cm
- Wetted materials
- PEEK, PPS, PTFE, stainless steel
- Column oven temperature range
- +30 to +100 °C
- Column oven temperature accuracy
- < 0.1 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 150 Ion Chromatography System Module
Request a quoteOverview
Product overview

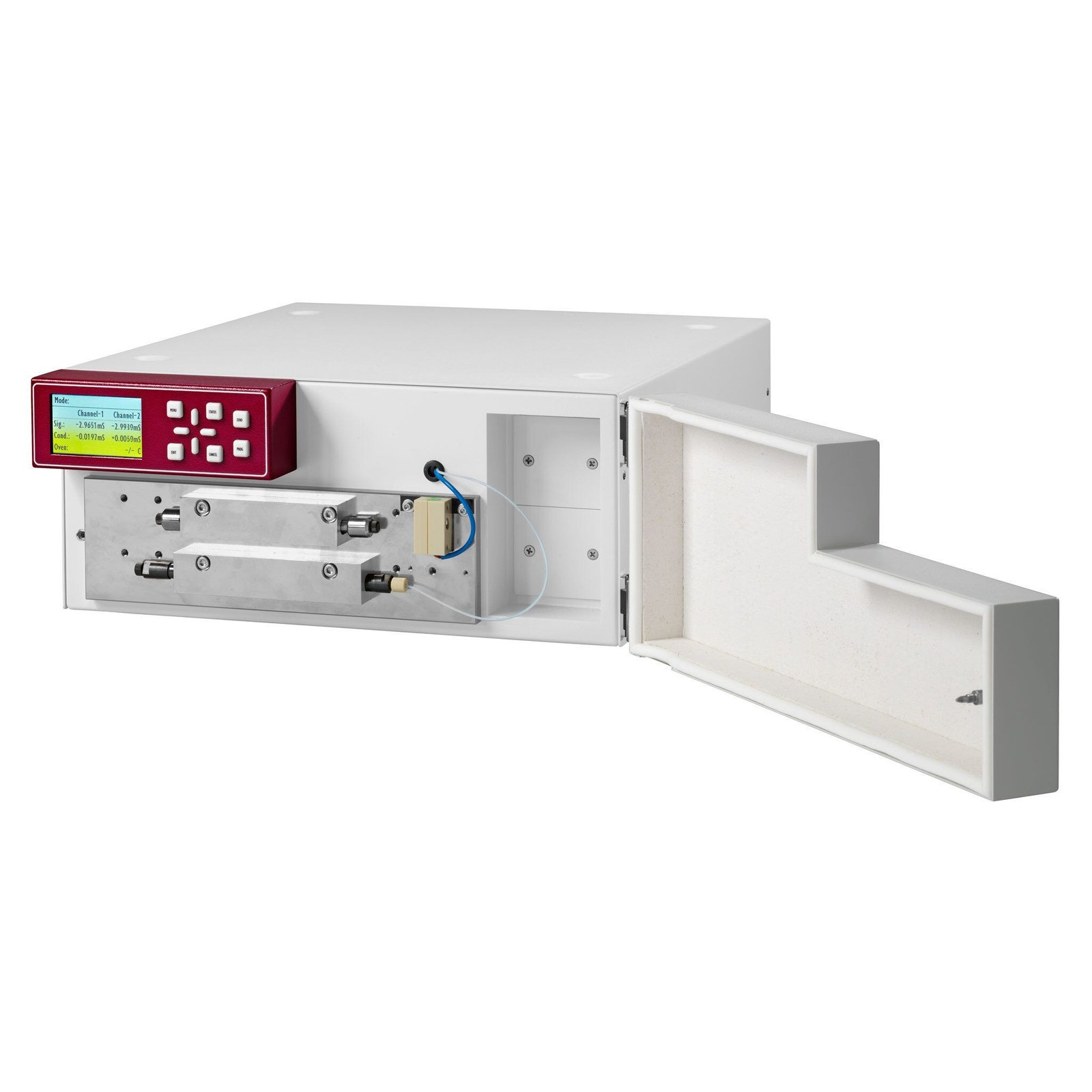

The S 150 module is built as a column oven, an in-line suppressor unit (for anion analysis) and a conductivity detector in one integrated module. Combined with the S 1130 isocratic or gradient IC pump and/or the S 5300 IC autosampler it completes an ion chromatograph for anions, cations, transition metals, organic acids and amines.
For cation chromatography the unit consists of a column oven and a conductivity detector; for anion chromatography an additional built-in suppressor provides high-sensitivity detection.
Specifications
Technical specifications
8 parameters
Module
- Dimensions
- 47,8 × 39,6 × 16,5 cm
- Wetted materials
- PEEK, PPS, PTFE, stainless steel
Oven
- Column oven temperature range
- +30 to +100 °C
- Column oven temperature accuracy
- < 0.1 °C
- Column oven switching valve
- Optional (for automatic column switching or flow-diversion)
Detector
- Conductivity measuring range
- 20 nS/cm – 20000 µS/cm
- Flowcell volume
- 0.76 µl
Suppressor
- Auto-suppressor
- Anion configuration: integrated in-line auto-suppressor. Cation configuration: no, upgradable with auto-suppressor for anion analysis.
Features
Key features
- 01
Integrated module
Column oven, suppressor and conductivity detector in one unit.
- 02
Oven range
+30 to +100 °C with < 0.1 °C accuracy.
- 03
Low flowcell volume
0.76 µl conductivity flowcell.
- 04
Optional switching valve
For automatic column switching or flow diversion.
