Reference: S 1525

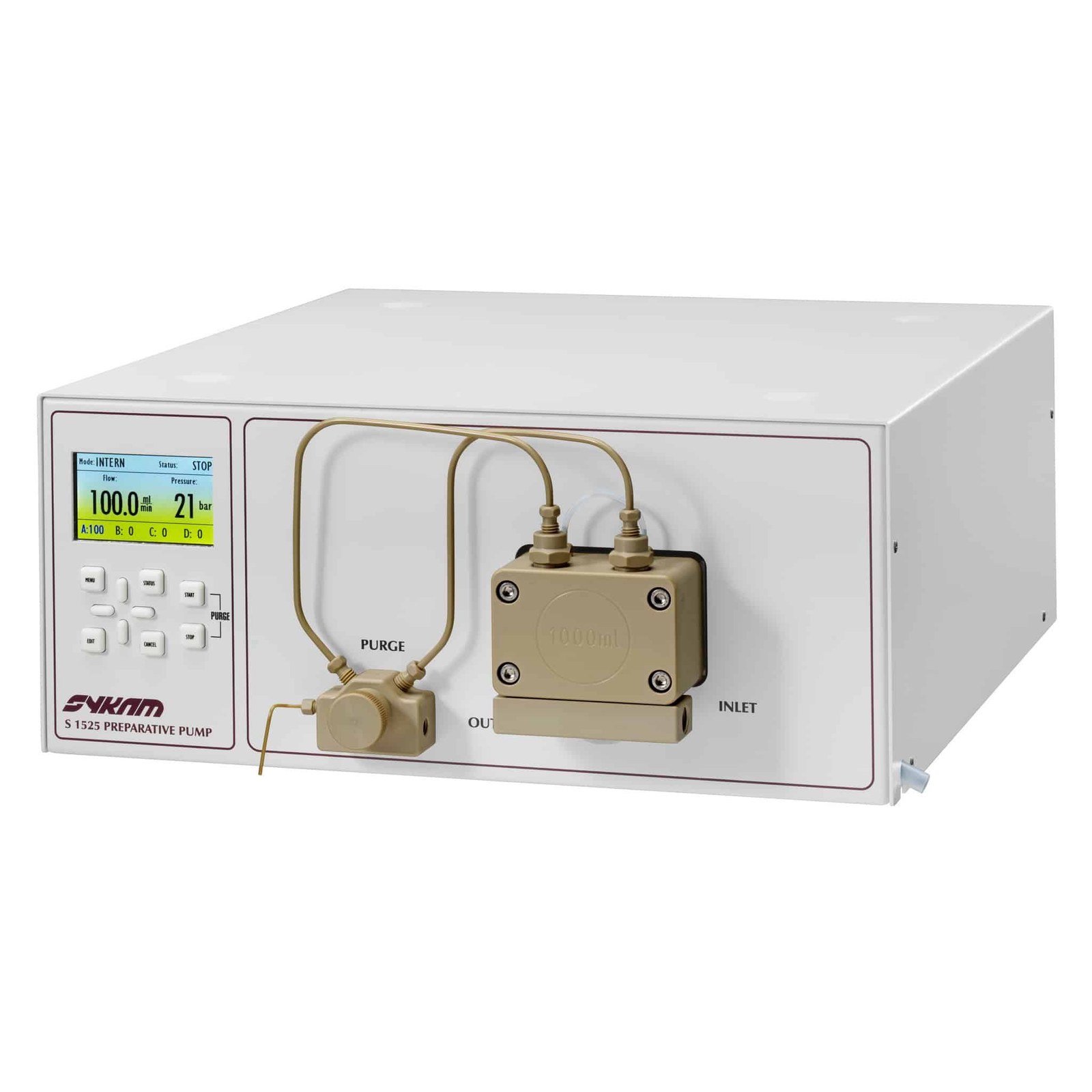

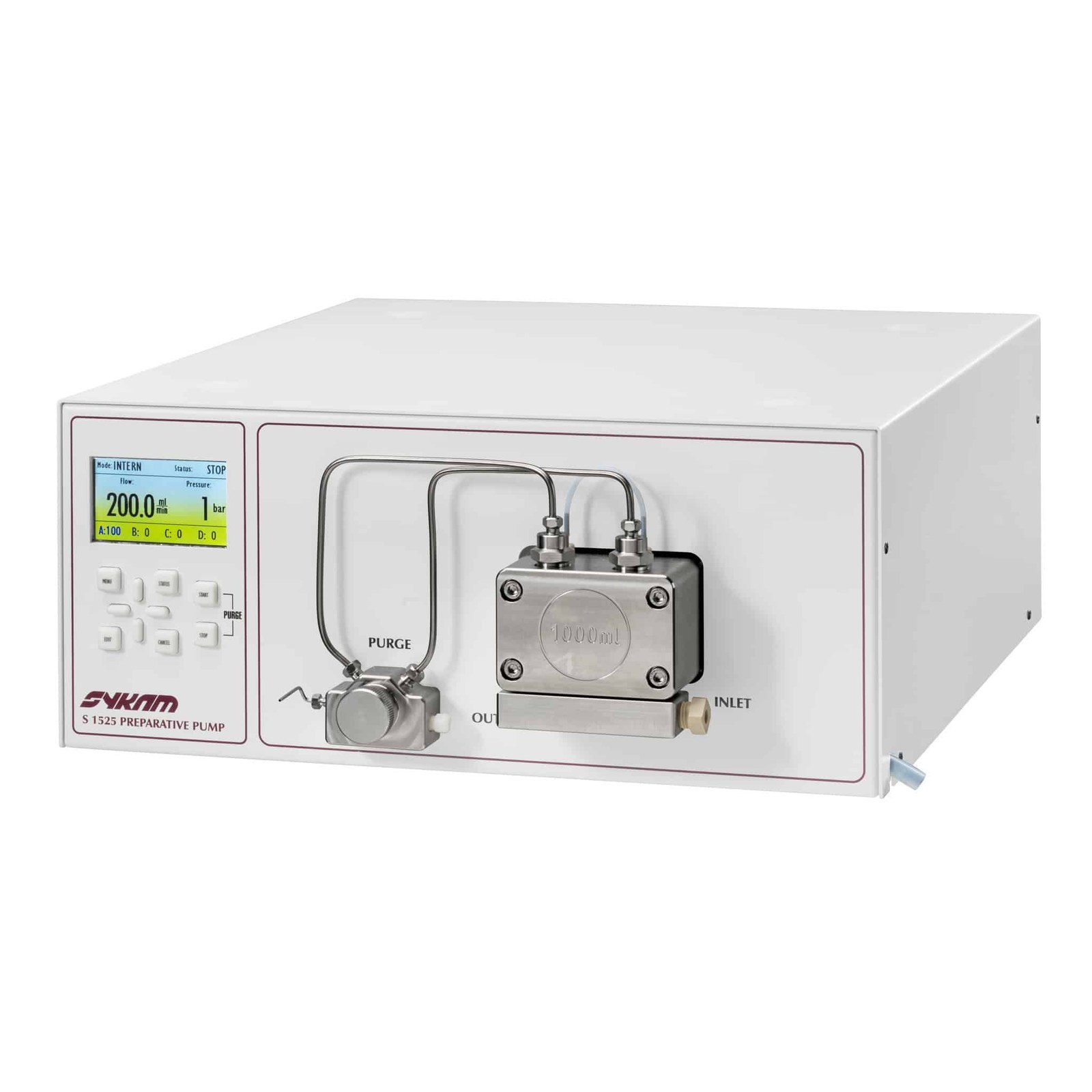

Sykam S 1525 Preparative Pump (150, 250, 500 or 1000 ml/min)
Preparative HPLC pump in 150, 250, 500 and 1000 ml/min versions, stainless steel (up to 400 bar) or PEEK (up to 350 bar).
Key specifications
- Flow rate
- Up to 150, 250, 500 or 1000 ml/min versions
- Pressure range
- Up to 400 bar (stainless steel version), up to 350 bar (PEEK version)
- Flow rate accuracy
- ± 2%
- Flow rate precision
- < 0.1% RSD
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 1525 Preparative Pump (150, 250, 500 or 1000 ml/min)
Request a quoteOverview
Product overview
The S 1525 Preparative Pump is available in four flow-rate ranges: 150, 250, 500 and 1000 ml/min. Each is offered in stainless steel (up to 400 bar) or PEEK (up to 350 bar). High-power DC motors and a low-maintenance heavy-duty drive allow flow/pressure combinations up to 1000 ml/min at 400 bar.
For gradient formation it can be fitted with the external high-flow low-pressure quaternary gradient option (S 8140), and multiple pumps can be combined for high-pressure gradients or large-volume sample uptake in the S 700 systems. With its integrated display and keyboard it also works as a stand-alone pump.
Specifications
Technical specifications
10 parameters
Pump
- Flow rate
- Up to 150, 250, 500 or 1000 ml/min versions
- Pressure range
- Up to 400 bar (stainless steel version), up to 350 bar (PEEK version)
- Flow rate accuracy
- ± 2%
- Flow rate precision
- < 0.1% RSD
- Operation modes
- Constant flow, constant pressure
- Wetted materials
- PEEK, PTFE, sapphire, ceramic, and stainless steel (stainless steel version only)
Gradient
- LPG accuracy
- ± 2% (with S 8140 quaternary gradient mixer)
- LPG precision
- < 1% RSD (with S 8140 quaternary gradient mixer)
Safety
- Safety features
- Min. pressure, max. pressure, over-current
Control
- Operation
- Manual, RS232, ethernet, digital I/O
Features
Key features
- 01
Four flow ranges
150, 250, 500 and 1000 ml/min.
- 02
Steel or PEEK
Up to 400 bar or 350 bar.
- 03
Gradient-ready
External S 8140 mixer option.
- 04
Stand-alone operation
Integrated display and keyboard.
