Reference: S 1535

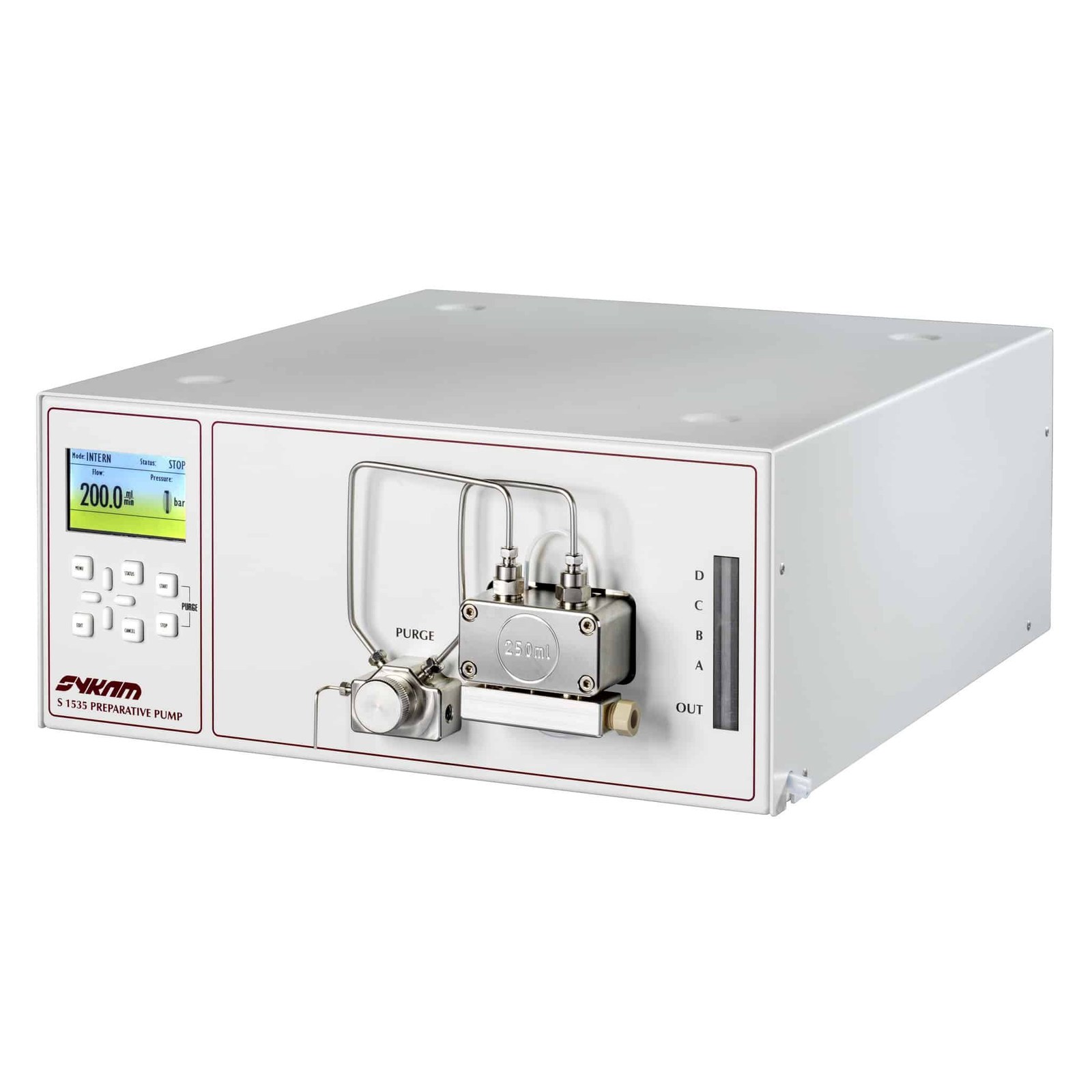

Sykam S 1535 Preparative Pump (150 or 250 ml/min)
Preparative HPLC pump in 150 and 250 ml/min versions, stainless steel (400 bar) or PEEK (350 bar), with optional built-in quaternary gradient mixer.
Key specifications
- Flow rate
- Up to 150 ml/min or up to 250 ml/min version
- Pressure range
- Up to 400 bar (stainless steel version), up to 350 bar (PEEK version)
- Flow rate accuracy
- ± 2%
- Flow rate precision
- < 0.1% RSD
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sykam S 1535 Preparative Pump (150 or 250 ml/min)
Request a quoteOverview
Product overview
The S 1535 Preparative HPLC Pump is available as a 150 ml/min or 250 ml/min version, with pressure up to 400 bar for stainless steel pump heads or up to 350 bar for PEEK pump heads.
An optional built-in low-pressure quaternary gradient mixer supports complex water/solvent gradients such as those in reversed-phase chromatography, as well as reliable gradient formation with high-salt buffers as used in protein chromatography.
Specifications
Technical specifications
10 parameters
Pump
- Flow rate
- Up to 150 ml/min or up to 250 ml/min version
- Pressure range
- Up to 400 bar (stainless steel version), up to 350 bar (PEEK version)
- Flow rate accuracy
- ± 2%
- Flow rate precision
- < 0.1% RSD
- Operation modes
- Constant flow, constant pressure
- Wetted materials
- PEEK, PTFE, sapphire, ceramic, stainless steel (stainless version only)
Gradient
- LPG accuracy
- ± 2% (with built-in quaternary gradient option only)
- LPG precision
- < 1% RSD (with built-in quaternary gradient option only)
Safety
- Safety features
- Min. pressure, max. pressure, over-current
Control
- Operation
- Manual, RS232, ethernet, digital I/O
Features
Key features
- 01
150 or 250 ml/min
Two flow-rate versions.
- 02
Steel or PEEK
Up to 400 bar or 350 bar.
- 03
Optional built-in gradient mixer
Low-pressure quaternary.
